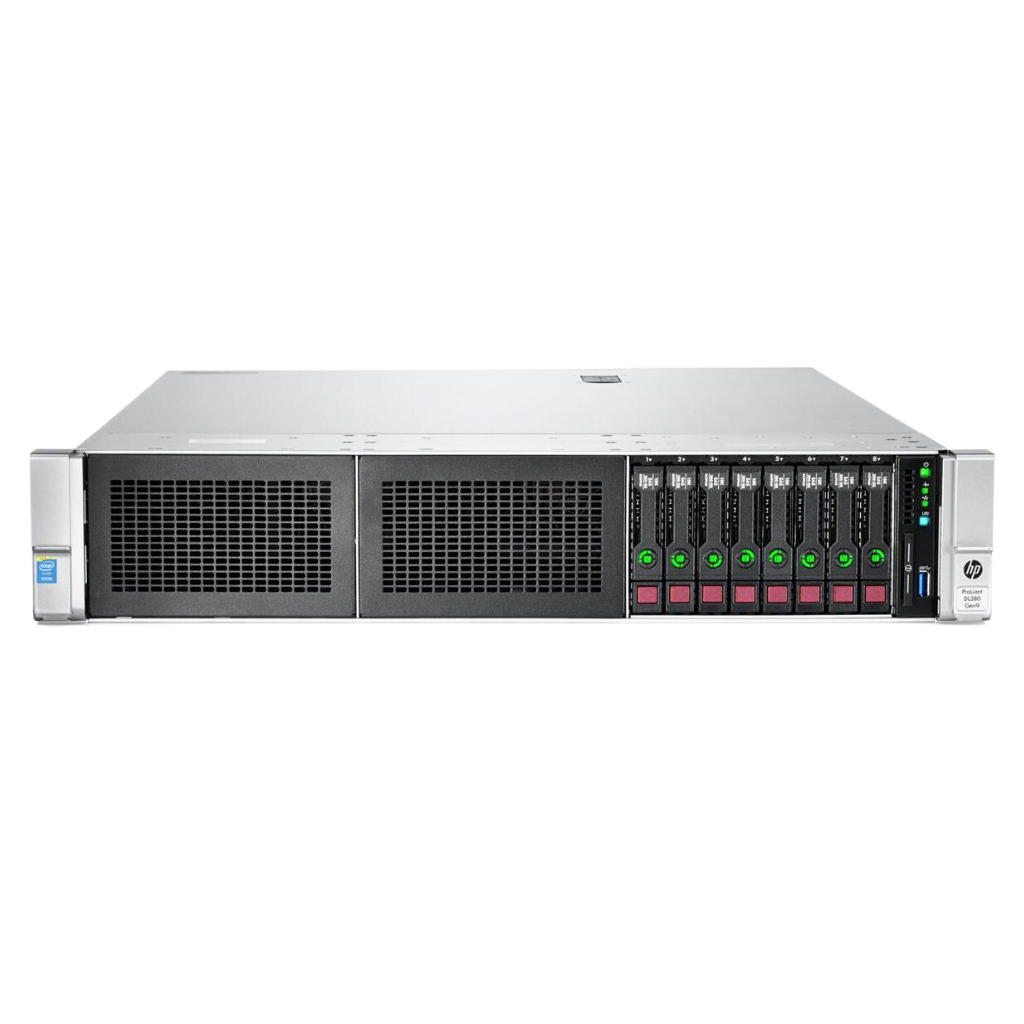

HPE DL380 Gen9 Server
Original price was: AED3,499.00.AED1,999.00Current price is: AED1,999.00.
- HP DL380 Gen9 Rack Server(Refurbished)
- Dual Intel® Xeon® E5-2680 V4 Processor
- RAM DDR4 32GB 2133MHz
- SAS Hot Plug 2 x 600GB 2.5-inch
- Raid Controller HPE Smart Array P440r
- Dual Power Supply 500 Watt
- Extended Warranty Available
The HPE ProLiant DL380 Gen9 server represents a benchmark in the 2U rack server category, widely recognized as a “datacenter standard”. This server skillfully balances processing power, memory capacity, and flexible storage options, all while aiming to reduce complexity and costs. By leveraging Intel Xeon E5-2600 v3 and v4 processors alongside high-speed DDR4 Smart Memory, the DL380 Gen9 delivers substantial performance enhancements for a diverse range of workloads. Its integrated management capabilities, spearheaded by HPE iLO4, streamline operational efficiency, and its energy-efficient design contributes to a lower total cost of ownership. However, prospective users should be aware of HPE’s specific firmware update policy for this generation and potential compatibility nuances concerning non-HPE SSDs. Overall, the DL380 Gen9 remains a highly capable and cost-effective solution for both demanding enterprise environments and robust
The HPE ProLiant DL380 Gen9 – A Data Center Standard
The HPE ProLiant DL380 Gen9 is a 2U, two-socket rack server that has consistently been a bestseller within HP’s portfolio, lauded for its exceptional versatility. This generation marked a significant evolution for the ProLiant line, characterized by a streamlining of product offerings and substantial enhancements to core capabilities compared to its predecessors. Its design ethos focused on providing a robust, adaptable platform capable of meeting diverse IT demands.
This report undertakes a comprehensive examination of the DL380 Gen9. The objective is to meticulously detail its primary benefits, technical specifications, and real-world implications. By providing this in-depth analysis, the report aims to equip potential adopters with a clear understanding of the server’s value proposition across various IT requirements, from small-scale deployments to mission-critical enterprise applications.
Unpacking Core Performance and Scalability
The DL380 Gen9 is meticulously engineered to handle demanding workloads, offering substantial processing power and expansive memory capabilities. This design philosophy underpins its “pay-as-you-grow” approach, allowing organizations to scale resources as their needs evolve.
2.1. Processor Architecture and Options
The server supports up to two Intel Xeon E5-2600 v3 (Haswell-EP microarchitecture) and E5-2600 v4 (Broadwell-EP microarchitecture) series processors. This dual-socket architecture is foundational to its capacity for high-performance computing. A wide array of processor models is available, offering diverse core counts ranging from 4 to 22 cores per CPU and clock speeds that can reach up to 3.60GHz in max turbo frequency. This extensive selection allows for precise customization of the server’s performance profile to align with specific workload demands, whether for general-purpose tasks or highly parallelized applications.
The transition from E5-2600 v3 to v4 processors brought notable performance gains, with the v4 series providing up to a 21-23% increase in performance over its predecessor. This incremental improvement ensured the Gen9 platform remained competitive and offered a clear upgrade pathway for users seeking enhanced capabilities. The server utilizes the Intel C610 series chipset, which supports both v3 and v4 processor families. It is important to note that processors exceeding 120W require a high-efficiency heatsink, a component also necessary for supporting double-wide PCIe cards. This technical detail is crucial for users planning to integrate high-power CPUs or graphics processing units (GPUs). Furthermore, the system supports field upgrades from E5-2600v3 to E5-2600v4 processors, providing a flexible pathway for future performance enhancements without necessitating a complete server overhaul.
The availability of numerous E5-2600 v3/v4 processor models, each with varying core counts, frequencies, and power envelopes, empowers org
Server Model
Processor
Memory
Storage
Price
HPE DL380 Gen9 Server 8SFF (Standard)
28 Core / 56 vCPU ( 2x Xeon E5-2680 V4)
64GB/DDR4(4x16GB)
2 x 600GB SAS HDD
AED 2499/-
HPE DL380 Gen9 Server 8SFF (Professional)
28 Core / 56 vCPU ( 2x Xeon E5-2680 V4)
128GB/DDR4(4x32GB)
4 x 600GB SAS HDD
AED 3499/-
HPE DL380 Gen9 Server 12LFF (Storage)
28 Core / 56 vCPU ( 2x Xeon E5-2680 V4)
128GB/DDR4(4x32GB)
6 x 4TB SAS HDD
AED 5999/-
HPE DL380 Gen9 Server 16SFF (Reliable)
36 Core / 72 vCPU ( 2x Xeon E5-2690 V4)
256GB/DDR4(8x32GB)
2 x 1.2TB SAS HDD
AED 6499/-
HPE DL380 Gen9 Server 16SFF (Advanced)
44 Core / 88 vCPU ( 2x Xeon E5-2699 V4)
512GB/DDR4(16x32GB)
3 x 1TB SSD
AED 9499/-
HP P440 RAID Controller, 4 PCIe Slots, 4X1Gb Gigabit Network Lan Ports, Hot-Swap dual HP 500W Power supply
| Brand | HPE |
| Model | DL380 Gen9 Rack Server |
| Product type | Rack Server |
| Form Factor | 2U |
| CPU Information |
Dual Intel® Xeon® Processor E5-2680 v4 (35M Cache- 2.40 GHz)
Essentials Product Collection Intel® Xeon® Processor E5 v4 Family Code Name Products formerly Broadwell Vertical Segment Server Processor Number E5-2680V4 Lithography 14 nm Use Conditions Server/Enterprise CPU Specifications Total Cores 14 Total Threads 28 Max Turbo Frequency 3.30 GHz Intel® Turbo Boost Technology 2.0 Frequency‡ 3.30 GHz Processor Base Frequency 2.40 GHz Cache 35 MB Intel® Smart Cache Bus Speed 9.6 GT/s # of QPI Links 2 TDP 120 W Supplemental Information Marketing Status Launched Launch Date Q1'16 Servicing Status End of Servicing Updates End of Servicing Updates Date Thursday | June 30 | 2022 Embedded Options Available Yes Datasheet View now Memory Specifications Max Memory Size (dependent on memory type) 1.5 TB Memory Types DDR4 1600/1866/2133/2400 Max # of Memory Channels 4 Max Memory Bandwidth 76.8 GB/s Physical Address Extensions 46-bit ECC Memory Supported ‡ Yes Expansion Options Scalability 2S PCI Express Revision 3 PCI Express Configurations ‡ x4 | x8 | x16 Max # of PCI Express Lanes 40 Package Specifications Sockets Supported FCLGA2011 Max CPU Configuration 2 TCASE 86°C Package Size 45mm x 52.5mm Advanced Technologies Intel® Turbo Boost Technology ‡ 2 Intel® Hyper-Threading Technology ‡ Yes Intel® Transactional Synchronization Extensions Yes Intel® 64 ‡ Yes Instruction Set 64-bit Instruction Set Extensions Intel® AVX2 Idle States Yes Enhanced Intel SpeedStep® Technology Yes Intel® Demand Based Switching Yes Thermal Monitoring Technologies Yes Intel® Flex Memory Access No Intel® Identity Protection Technology ‡ No Security & Reliability Intel vPro® Eligibility ‡ Intel vPro® Platform Intel® AES New Instructions Yes Secure Key Yes Intel® OS Guard Yes Intel® Trusted Execution Technology ‡ Yes Execute Disable Bit ‡ Yes Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® VT-x with Extended Page Tables (EPT) ‡ Yes |
| Supported Processors |
Processor
Up to two of the following depending on model Model CPU frequency Cores L3 Cache Power QPI DDR4 Hz E5-2699v3 2.3GHz 18 45MB 145W 9.6GT/s 2133 E5-2698v3 2.3GHz 16 40MB 135W 9.6GT/s 2133 E5-2697v3 2.6GHz 14 35MB 145W 9.6GT/s 2133 E5-2695v3 2.3GHz 14 35MB 120W 9.6GT/s 2133 E5-2690v3 2.6GHz 12 30MB 135W 9.6GT/s 2133 E5-2687Wv3 3.1GHz 10 25MB 160W 9.6GT/s 2133 E5-2683v3 2.0GHz 14 35MB 120W 9.6GT/s 2133 E5-2680v3 2.5GHz 12 30MB 120W 9.6GT/s 2133 E5-2670v3 2.3GHz 12 30MB 120W 9.6GT/s 2133 E5-2667v3 3.2GHz 8 20MB 135W 9.6GT/s 2133 E5-2660v3 2.6GHz 10 25MB 105W 9.6GT/s 2133 E5-2650v3 2.3GHz 10 25MB 105W 9.6GT/s 2133 E5-2650Lv3 1.8GHz 12 30MB 65W 9.6GT/s 2133 E5-2643v3 3.4GHz 6 20MB 135W 9.6GT/s 2133 E5-2640v3 2.6GHz 8 20MB 90W 8.0GT/s 1866 E5-2637v3 3.5GHz 4 15MB 135W 9.6GT/s 2133 E5-2630v3 2.4GHz 8 20MB 85W 8.0GT/s 1866 E5-2630Lv3 1.8GHz 8 20MB 55W 8.0GT/s 1866 E5-2623v3 3.0GHz 4 10MB 105W 8.0GT/s 1866 E5-2620v3 2.4GHz 6 15MB 85W 8.0GT/s 1866 E5-2609v3 1.9GHz 6 15MB 85W 6.4GT/s 1600 E5-2603v3 1.6GHz 6 15MB 85W 6.4GT/s 1600 E5-2699v4 2.2GHz 22 55MB 145W 9.6GT/s 2400 E5-2698v4 2.2GHz 20 50MB 135W 9.6GT/s 2400 E5-2697v4 2.3GHz 18 45MB 145W 9.6GT/s 2400 E5-2697Av4 2.6GHz 16 40MB 145W 9.6GT/s 2400 E5-2695v4 2.1GHz 18 45MB 120W 9.6GT/s 2400 E5-2690v4 2.6GHz 14 35MB 135W 9.6GT/s 2400 E5-2687Wv4 3.0GHz 12 30MB 160W 9.6GT/s 2400 E5-2683v4 2.1GHz 16 40MB 120W 9.6GT/s 2400 E5-2680v4 2.4GHz 14 35MB 120W 9.6GT/s 2400 E5-2667v4 3.2GHz 8 25MB 135W 9.6GT/s 2400 E5-2660v4 2.0GHz 14 35MB 105W 9.6GT/s 2400 E5-2650v4 2.2GHz 12 30MB 105W 9.6GT/s 2400 E5-2650Lv4 1.7GHz 14 35MB 65W 9.6GT/s 2400 E5-2643v4 3.4GHz 6 20MB 135W 9.6GT/s 2400 E5-2640v4 2.4GHz 10 25MB 90W 8.0GT/s 2133 E5-2637v4 3.5GHz 4 15MB 135W 9.6GT/s 2400 E5-2630v4 2.2GHz 10 25MB 85W 8.0GT/s 2133 E5-2630Lv4 1.8GHz 10 25MB 55W 8.0GT/s 2133 E5-2623v4 2.6GHz 4 10MB 85W 8.0GT/s 2133 E5-2620v4 2.1GHz 8 20MB 85W 8.0GT/s 2133 E5-2609v4 1.7GHz 8 20MB 85W 6.4GT/s 1866 E5-2603v4 1.7GHz 6 15MB 85W 6.4GT/s 1866 E5-2699Av4 2.4GHz 22 55MB 145W 9.6GT/s 2400 |
| Installed Memory | RAM DDR4 32GB 2133 MHz DDR4 SDRAM |
| Memory Type |
Memory
One of the following depending on model Type HPE Smart Memory DDR4 Registered (RDIMM), Load Reduced (LRDIMM) or Persistent Memory (NVDIMM) DIMM Slots Available 24 (12 DIMM slots per processor, 4 channels per processor, 3 DIMMs per channel) Maximum Capacity (LRDIMM) 3TB (24 x 128GB LRDIMM @2400MHz) Maximum Capacity (RDIMM) 768GB (24 x 32GB RDIMM @2400MHz) Maximum Capacity (NVDIMM) 128GB (16 x 8GB NVDIMM) NVDIMM support only with the E5-2600v4 processors, and RDIMMs only Note mixing of 2133 and 2400MHz memory is not supported Note mixing of RDIMM and LRDIMM memory is not supported Note the 128GB LRDIMM may not be mixed with other DIMM capacities/types Memory Protection Advanced ECC: Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip. Online Spare: Memory online spare mode detects a rank that is degrading and switches operation to the spare rank. |
| Installed Hard Disk | 2 x 600GB |
| Storage Option |
HP Smart Array P440ar RAID Controller
STORAGE RAID Level RAID 0, RAID 1, RAID 10 Maximum Internal Storage Category Capacity Configuration Hot Plug SFF SAS 52.0TB 24+2 x 2TB (with optional rear SFF drive cage) Hot Plug SFF SATA 52.0TB 24+2 x 2TB (with optional SFF drive cage) Hot Plug LFF SAS 180.0TB 12+3 x 12TB (with optional rear LFF drive cage) Hot Plug LFF SATA 180.0TB 12+3 x 12TB (with optional rear LFF drive cage) Hot Plug SFF SAS SSD 397.8TB 24+2 x 15.3TB (with optional rear SFF drive cage) Hot Plug SFF SATA SSD 199.68TB 24+2 x 7.68TB (with optional rear SFF drive cage) Hot Plug LFF SATA SSD 57.6B 12+3 x 3.84TB (with optional rear LFF drive cage) Hot Plug SFF NVMe PCIe SSD 46.08TB NVMe + 36TB SFF 6x7.68TB NVMe plus 36TB with 18 SFF (Bay 1, bay 3 and optional rear drive support |
| Supported Display Adapter | QUADRO K22000 - 4GB DDR5 |
| Expansion Slots |
Expansion Slots
Primary Riser (Standard) Expansion Slots # Technology Bus Width Connector Width Bus Number Form Factor Notes 1 PCIe 3.0 X8 X16 7 Full- height, half- length slot Proc 1 2 PCIe 3.0 X8 X16 10 Full- height, half- length slot Proc 1 3 PCIe 3.0 X8 X8 13 Half length / full height Proc 1 NOTE: Bus Width Indicates the number of physical electrical lanes running to the connector. NOTE: All slots support PCIe cards to 150W or more, but an additional Power Cable Kit is Router-switch.com 6 required. NOTE: Double wide PCIe cards are only supported in risers with the Processors leveraging the High Performance Heatsink. For Processors requiring double wide GPU support please order the GPU enablement kit (719082-B21). Slot 2 PCIe Riser (Optional 3-slot) 719073-B21 Expansion Slots # Technology Bus Width Connector Width Bus Number Form Factor Notes 4 PCIe 3.0 X16 X16 16 Full- height, full- length slot Proc 2 5 PCIe 3.0 X16 X16 20 Full- height, full- length slot Proc 2 6 PCIe 3.0 X8 X8 23 Full- height, half- length slot Proc 2 NOTE: Bus Width Indicates the number of physical electrical lanes running to the connector. NOTE: When populating the second optional riser slot, the second processor must be installed. NOTE: All slots support PCIe cards to 150W or more, but an additional Power Cable Kit is required. NOTE: Double wide PCIe cards are only supported in risers with the Processors leveraging the High Performance Heatsink. For Processors requiring double wide GPU support please order the GPU enablement kit (719082-B21). Slot 1 PCIe Riser (Optional 2-slot) 719076-B21 Expansion Slots # Technology Bus Width Connector Width Bus Number Form Factor Notes 2 PCIe 3.0 X16 X16 0x05 Full- height, full- length slot Proc 1 3 PCIe 3.0 X8 X8 0x08 Full- height, half- length slot Proc 1 NOTE: Bus Width Indicates the number of physical electrical lanes running to the connector. NOTE: This will replace the standard primary riser and supports double wide cards. Router-switch.com 7 NOTE: All slots support PCIe cards to 150W or more, but an additional Power Cable Kit is required. NOTE: Double wide PCIe cards are only supported in risers with the Processors leveraging the High Performance Heatsink. For Processors requiring double wide GPU support please order the GPU enablement kit (719082-B21) |
| Power Supply |
Type power supply
Min Operating Temperature 41 °FNominal VoltageAC 120/230 V (50/60 Hz) Max Operating Temperature95 °F |
| Pre Install Os |
OS Provided: Type
Non |
| Warranty | Limited 03-month warranty |
