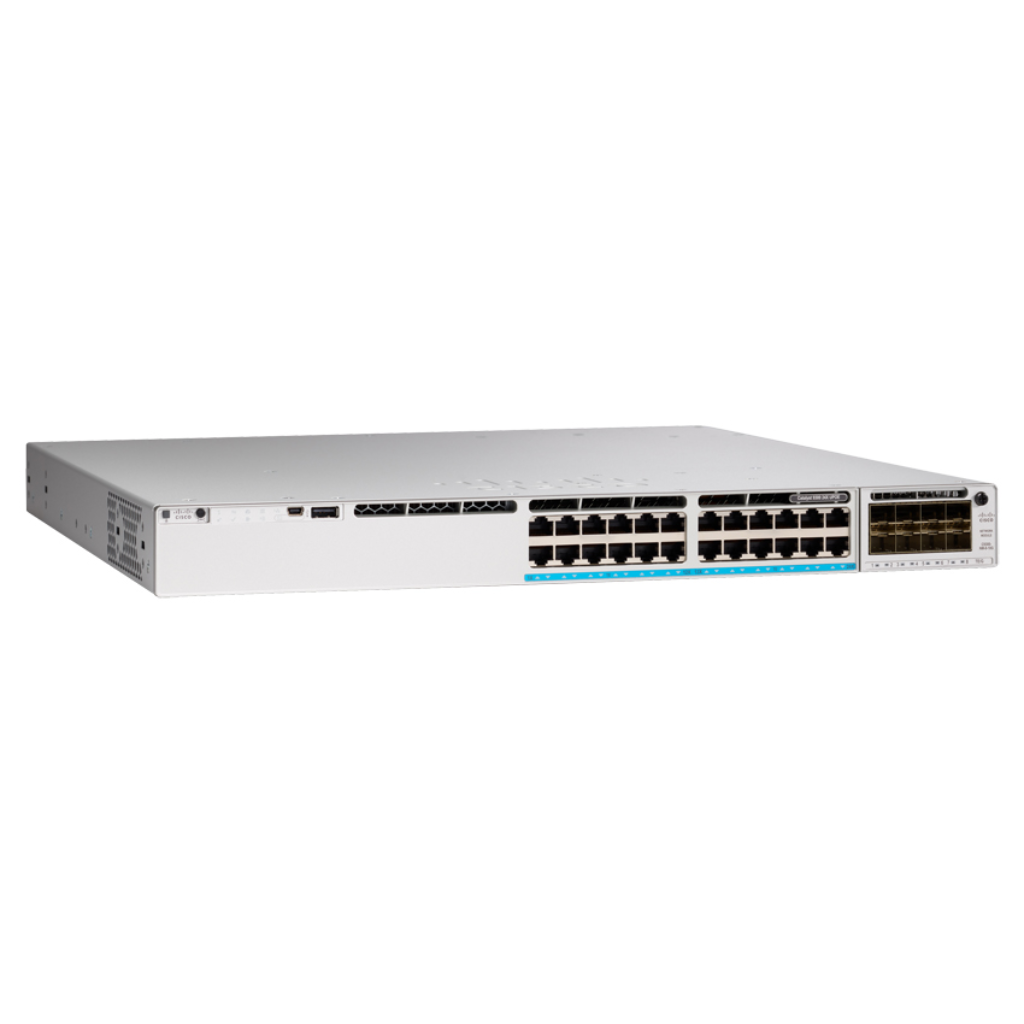

Cisco Catalyst 9300-24UX-A 24-port UPOE Switch
Original price was: AED6,550.AED2,899Current price is: AED2,899.
Brand:
- Cisco Catalyst 9300-24UX-A UPOE Switch (Refurbished)
- Ports: 24 x 10/100/1000 +10G SFP Optical ports
- DRAM: 8GB DRAM (standard)
- Flash-memory: 16GB Flash
- Stack bandwidth: 480 Gbps
- Switching Capacity: 640 Gbps
- Call Or WhatsApp For
- More Detail & Bulk Order
Estimated delivery:2 days
Specification
| Brand | Cisco |
| Model | Catalyst 9300 |
| Part Number | C9300-24UX-A |
General
| Device Type | Switch / Hub |
| Interface (Bus) Type | 24 10/100/1000 + 8x 10G Module |
| PCI Specification Revision | Switching Capacity 1280 Gbps |
Performance
| RAM | 8GB |
| Flash Memory | 16GB |
Form Factor
| Form Factor | Rack-mountable - 1U |
Networking/communication
| Communications | Catalyst 9300 24-port Multigigabit Ethernet and UPOE, Network Advantage Total Ports: 24 Multigigabit Cisco UPOE ports supporting 10/100/1000 or Multigigabit copper connections (100 Mbps or 1, 2.5, 5, or 10 Gbps) Default AC Power Supply: 1100W AC Cisco StackWise-480: Yes Cisco StackPower: Yes Default Power Supply: PWR-C1-1100WAC-P/2 Switching Capacity: 640 Gbps on 24-port Multigigabit Ethernet model Stacking Bandwidth: 480 Gbps Total MAC Addresses: 32,000 IPv4 Routing Entries: 32,000 (24,000 direct routes and 8,000 indirect routes) IPv6 Routing Entries: 16,000 Multicast Routing Scale: 8,000 QoS Scale Entries: 5,120 ACL Scale Entries: 5,120 Packet Buffer per SKU: 32 MB buffer for 24-port Multigigabit FNF Entries: 128,000 flows on 24-port Multigigabit VLAN IDs: 4,000 Total Switched Virtual Interfaces (SVIs): 2,000 Jumbo Frames: 9,198 bytes Total Routed Ports per 9300 Series Stack: 208 Wireless Bandwidth per Switch: Up to 48 Gbps on 24-port Gigabit Ethernet model Forwarding Rate: 154.76 Mpps Mean Time Between Failures (Hours): 299,000 Safety Certifications: UL 60950-1, CAN/CSA-C222.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1, IEEE 802.3 |
| Features | Switching Capacity w/Stacking 1120 Gbps |
| Ports | 24 Multigigabit Cisco UPOE ports supporting 10/100/1000 + 8 SFP+ |
| Connectivity Technology | Wired |
| Data Link Protocol | Forwarding Rate 476.19 Mpps |
| Data Transfer Rate | Stack bandwidth 640 Gpbs |
Environmental specifications
| Altitude (unpressurized) | Operating altitude Up to 13,000 Feet (Up to 4000 Meters) Operating temperature up to 5000 ft (1500 m) 23ºF to 113ºF (-5ºC to +45ºC) Operating temperature up to 10,000 ft (3000 m) 23ºF to 104ºF (-5ºC to +40ºC) Short-term exception at sealevel with single fan failure 23ºF to 113ºF (-5ºC to +45ºC) Short-term exception up to 5000 feet (1500 m) 23ºF to 122ºF (-5ºC to 50ºC) Short-term exception up to 10,000 feet (3000 m) 23ºF to 113ºF (-5ºC to 45ºC) |
Power
| Power Supply | Available PoE Power: 490W |
Physical specifications
| dimensions ( H x W x D) | 1.73 x 17.5 x 17.5 inches |
| Rack dimensions | Rack-mountable - 1U |
| Weight | 16.33 Pounds |
SERVICE & SUPPORT
| Warranty | limited 03-month warranty |
