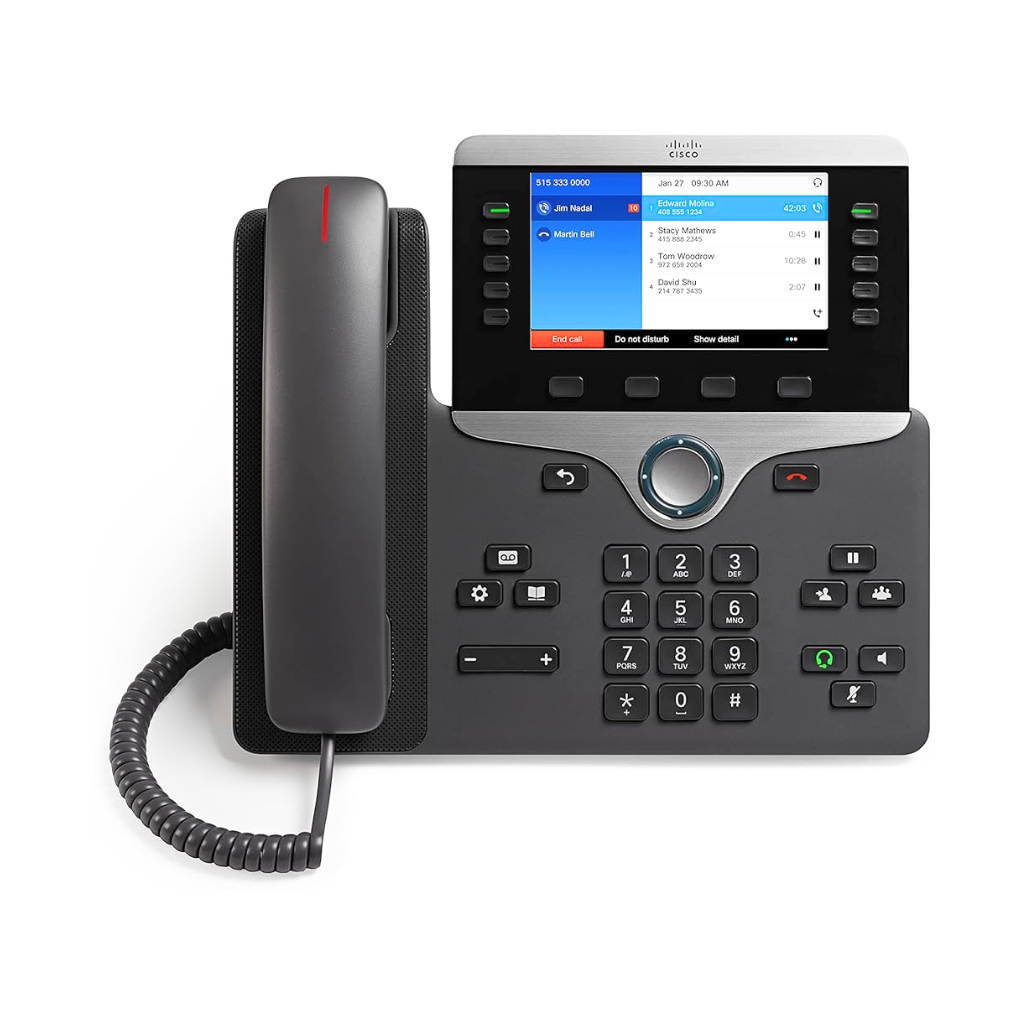

Cisco IP Phone CP-8841-K9
Original price was: AED880.AED270Current price is: AED270.
- Cisco IP Phone CP-8841-K9 (Refurbished)
- Model CP-8841-K9
- Display 5’’ high-resolution WVGA color display
- Voice Communication High-quality
- Power over Ethernet Yes
- Wall Mountable Yes
- Total Number of Phone Lines 10
Estimated delivery:2 days
Specification
| Brand | Cisco |
| Model | CP-8841-K9 |
| Part Number | CP-8841-3PCC-K9 |
General
| Device Type | IP Phone |
Ports/slots/bays
| Input/output ports | Connections Headset jack / RJ-9 ¦ Electronic hook switch (EHS) Hearing Aid Compatible Yes Placing / Mounting Wall-mountable, table mount Compliant Standards ADA, HAC (Hearing Aid Compatible) |
Networking/communication
| Communications | Session Initiation Protocol (SIP) for signaling ● Session Description Protocol (SDP) ● IPv4 and IPv6 ● User Datagram Protocol (UDP) (used only for Real-Time Transport Protocol [RTP] streams) ● Dynamic Host Configuration Protocol (DHCP) client or static configuration ● Gratuitous Address Resolution Protocol (GARP) ● Domain Name System (DNS) ● Trivial File Transfer Protocol (TFTP) ● Secure Hypertext Transfer Protocol (HTTPS) ● VLAN ● Real-Time Transport Protocol (RTP) ● Real-Time Control Protocol (RTCP) ● Cisco Peer-to-Peer Distribution Protocol (PPDP) ● Cisco Discovery Protocol ● LLDP (including LLDP-MED) ● Switch speed auto-negotiation |
| Features | Ergonomic design ● The phone offers an easy-to-use interface and provides a traditional telephony-like user experience. Graphical display ● The 800 × 480, 24-bit color, 5-in. WVGA display provides scrollable access to calling features and text-based XML applications. Handset ● The handset is a standard wideband-capable audio handset (connects through an RJ-9 port). ● The standard coiled cord has a custom end for concealed cable routing beneath the phone (cord length is approximately 21 in. [55 cm] coiled and up to 72 in. (183 cm) extended). ● The handset is Hearing Aid-Compatible (HAC) and meets Federal Communications Commission (FCC) loudness requirements for the Americans with Disabilities Act (ADA). Section 508 loudness requirements can be achieved using industry-standard inline handset amplifiers such as Walker Equipment W-10 or CE-100 amplifiers. The dial pad is also ADA-compliant. Speaker phone ● A full-duplex speakerphone gives you flexibility in placing and receiving calls with hands free. For added security, the audible Dual Tone Multifrequency (DTMF) tones are masked when the speakerphone mode is used. Analog headset ● The analog headset jack is a standard wideband-capable RJ-9 audio port. AUX port ● You can use an auxiliary port to support electronic hookswitch control with a third-party headset connected to it. Ethernet switch ● An internal 2-port Cisco Ethernet switch allows for a direct connection to a 10/100/1000BASE-T Ethernet network (IEEE 802.3i/802.3u/802.3ab) through a RJ-45 interface with single LAN connectivity for both the phone and a co-located PC. ● The system administrator can designate separate VLANs (IEEE 802.1Q) for the PC and phone, providing improved security and reliability of voice and data traffic. Keys ● The phone has the following keys: ◦ Line keys ◦ Soft keys ◦ Back and release keys ◦ Four-way navigation and select keys ◦ Hold/Resume, Transfer, and Conference keys ◦ Messaging, Application, and Directory keys ◦ Standard keypad ◦ Volume-control toggle key ◦ Speakerphone, headset, and mute keys Backlit indicator ● The phone supports backlit indicators for the audio path keys (handset, headset, and speakerphone), select key, line keys, and message waiting. Replaceable bezel ● The phone includes a black bezel; an optional silver bezel is also orderable separately. Dual-position foot stand ● The display is easy-to-view and the buttons and keys are easy-to-use. The two-position foot stand supports viewing angles of 35 and 50 degrees; you can remove the foot stand for wall mounting, with mounting holes located on the base of the phone. Wall-mountable ● You can install the phone on a wall using an optional wall-mount kit (orderable separately). Physical security ● The phone is compatible with the Kensington Security Slot (K-Slot) antitheft system. Power Features IEEE Power over Ethernet (PoE) ● IEEE Power over Ethernet class 2. The phone is compatible with both IEEE 802.3af and 802.3at switch blades and supports both Cisco Discovery Protocol and Link Layer Discovery Protocol - Power over Ethernet (LLDP-PoE). Cisco IP Phone Power Cube 4 ● This optional power cube is used as an AC-to-DC (48V) power supply for non-PoE deployments. Use of the power cube 4 also requires the use of one of the corresponding AC country cords. Call-Control Support Cisco Unified Communications Manager ● 8.5.1 (Non-secured mode Only) ● 8.6.2 ● 9.1.2 ● 10.5.2 ● 11.0 and later Cisco Unified Communications Manager Express (Unified CME) ● 10.0 and later through fast track Cisco Business Edition 6000 (BE 6000) ● 8.6.2 ● 9.1.2 ● 10.5.2 ● 11.0 and later Cisco Hosted Collaboration Solution (HCS) ● 8.6.2 and later (using supported UCM versions above) |
| Ports | Access port (10/100 PC) connection. |
Environmental specifications
| Temperature | ● 32 to 104°F (0 to 40°C) |
| Humidity | ● Operating 10 to 90%, noncondensing ● Nonoperating 10 to 95%, noncondensing |
Power
| Power Supply | Power over Ethernet or optional 48V power supply |
Physical specifications
| dimensions ( H x W x D) | Width 10.1 in Depth 1.6 in Height 9 in |
| Weight | 2.58 lb (1.17 kg) |
SERVICE & SUPPORT
| Warranty | limited 01-month warranty |
