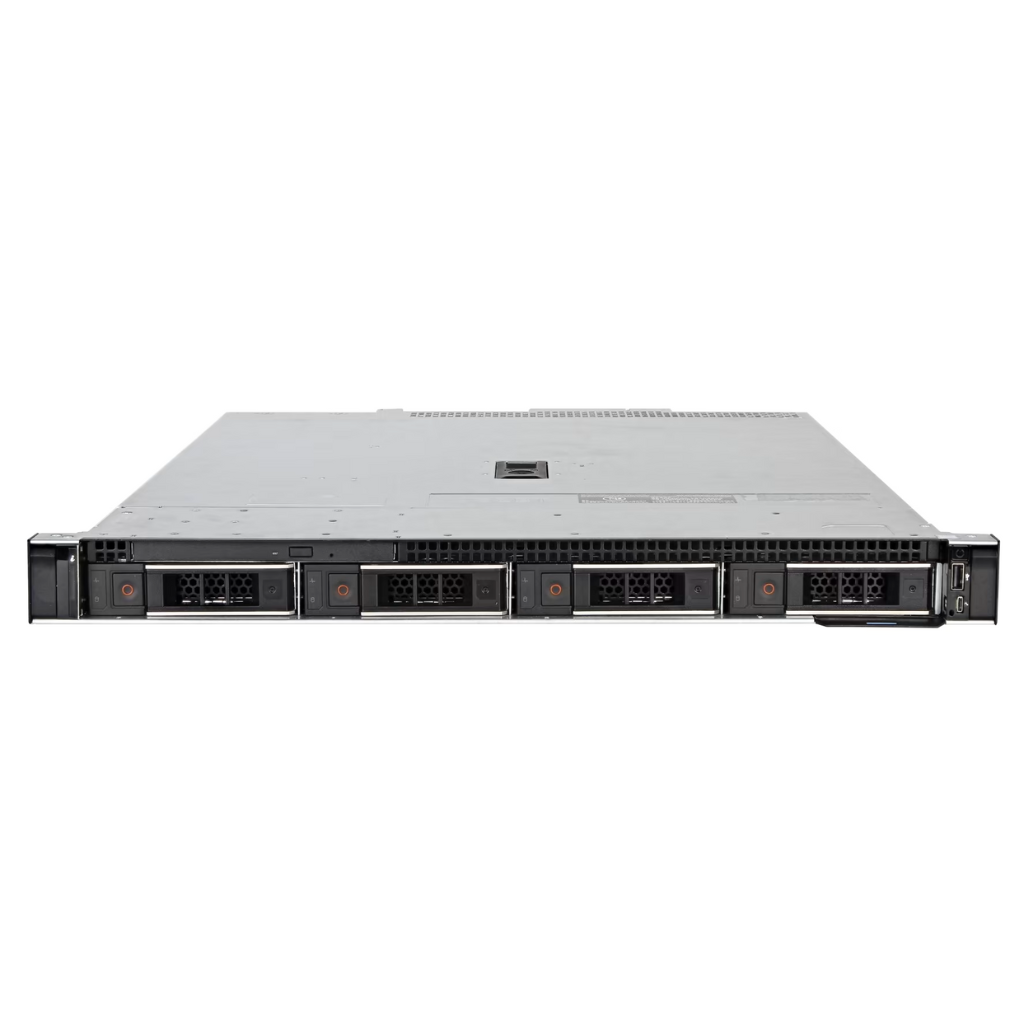

Dell PowerEdge R340 Server
Original price was: AED5,800.AED3,499Current price is: AED3,499.
Brand:
- Dell PowerEdge R340 Server (Refurbished)
- Single Intel® Xeon® E-2100 Series Processor
- RAM DDR4 32GBÂ 2133MHz
- SAS Hot Plug 2 x 600GB 2.5-inch
- PERC H330 RAID Controller
- Dual Power Supply 350 Watt
- Extended Warranty Available
Estimated delivery:2 days
Specification
| Brand | Dell |
| Model | Dell PowerEdge R340 Server |
| Part Number | PowerEdge R340 |
Product Type
| Product type | Rack Server |
Form Factor
| Form Factor | 1U |
Processor
| CPU Information |
Processors: Processor 1 processor from the following product families: Intel Xeon processor E-2100 product family Intel Xeon processor E-2200 product family |
CPU Specifications
| Supported Processors |
Processor Up to two of the following depending on model Model CPU frequency Intel Xeon processor E-2200 product family Intel Core i3 9100 processor Intel Pentium G5420 processor Intel Celeron G4930 processor Intel Xeon processor E-2100 product family Intel Core i3 8100 processor Intel Pentium G5500 processor Intel Celeron G4900 processor |
Memory
| Installed Memory | RAM DDR4 32GBÂ 2133 MHz DDR4 SDRAM |
| Memory Type |
Fully expandable up to 64GB DDR4 2666 MT/s ECC UDIMM (4 DIMM Slots) The PowerEdge R340 system supports the following memory specifications for optimized operation. Table 1. Memory specifications Single rank 8 GB, 16 GB, 32 GB, 64 GB Dual rank 8 GB, 16 GB, 32 GB, 64 GB Table 2. Memory module sockets MEMORY MODULE SOCKETS SPEED Four 288-pin 2666 MT/s NOTE 3200 MT/s UDIMM is compatible from BIOS version 2.5.1 but downshift to 2666 MT/s operational speed. |
Storage and drives
| Installed Hard Disk | 2 x 600GB |
| Device Type | SAS Hot Plug |
| Storage Option |
Hard Drives: Up to 4x 3.5" SAS/SATA HDD/SSD drives Maximum Internal Storage: 4x 3.5" - Up to 56TB (NL-SAS/SATA) / 30.72TB (SSD) The Dell EMC PowerEdge R340 system supports: 8 x 2.5-inch hot-swappable SAS, SATA, or SSD 4 x 3.5-inch hot-swappable SAS, SATA, or SSD 4 x 2.5-inch hot-swappable SAS, SATA, or SSD in 3.5-inch adapters Backplane: Up to 8 x 2.5-inch SAS, SATA, or SSD drives Up to 4 x 3.5-inch SAS, SATA, or SSD drives |
| Storage Controller |
INTERNAL CONTROLLERS PERC H730P PERC H330 S140 HBA330 EXTERNAL CONTROLLERS 12 Gb/s Ext SAS HBA HBA355e |
Graphics
| Installed Graphic Card | The Dell EMC PowerEdge R340 system supports integrated Matrox G200eW3 graphics controller with 16 MB of video |
| Supported Display Adapter | QUADRO K22000 - 4GB DDR5 |
Ports/slots/bays
| Input/output ports |
USB ports specifications Table 1. Dell EMC PowerEdge R240 system USB specifications FRONT REAR INTERNAL USB PORT TYPE NO. OF PORTS USB PORT TYPE NO. OF PORTS USB PORT TYPE NO. OF PORTS USB 2.0-compliant port One USB 3.0-compliant ports Two Internal USB 3.0-compliant port One Micro USB 2.0-compliant port for iDRAC Direct One NOTE The micro USB 2.0 compliant port can only be used as an iDRAC Direct or a management port. The Dell EMC PowerEdge R240 system supports DB-15 VGA connector. IDSDM module The Dell EMC PowerEdge R240 system supports optional Internal Dual SD module (IDSDM) module. The module supports three microSD cards; two cards for IDSDM and one card for vFlash. In 14th generation of PowerEdge servers, the IDSDM or vFlash module is combined into a single card module, and is available in the following configurations: vFlash or vFlash and IDSDM Table 1. Supported microSD card storage capacity IDSDM CARD VFLASH CARD 16 GB, 32 GB, 64 GB NOTE There are two dip switches on the IDSDM or vFlash module for write-protection. NOTE One IDSDM card slot is dedicated for redundancy. NOTE Use Dell EMC branded microSD cards that are associated with the IDSDM or vFlash configured systems. |
| Expansion bays |
2 x 3.5" cabled HDD 19.5" 1U chassis • 4 x 3.5" cabled HDD 19.5" 1U chassis • 4 x 3.5" hot-swap or 2.5" hot-swap in hybrid drive carrier Expansion card riser specifications The Dell EMC PowerEdge R340 system supports up to two PCI express (PCIe) generation 3. Table 1. Expansion card slots supported on the system board PCIE SLOT RISER PCIE SLOT HEIGHT PCIE SLOT LENGTH LINK WIDTH SLOT WIDTH Slot 1 x8 PCIe Low-profile Half-length x4 x8 Slot 2 x16 PCIe Low-profile/Full-height Half-length x8 x16 Internal PERC x8 PCIe Low-profile Half-length x8 x8 |
Networking/communication
| Communications | The Dell EMC PowerEdge R340 system supports up to two 10/100/1000 Mbps Network Interface Controller (NIC) ports that are located on the back panel. |
Security & Reliability
| Software/security | Remote Management: iDRAC9 with Lifecycle Controller |
Environmental specifications
| Certifications |
Table 1. Dell EMC PowerEdge R340 fan support matrix FRONT STORAGE PSU TYPE FAN 1 FAN 2 FAN 3 FAN 4 8 x 2.5-inch Redundant 350 W Required, if the PERC card and/or expansion riser is installed Required Required Required 4 x 3.5-inch 8 x 2.5-inch Redundant 550 W Required, if the PERC card and/or expansion riser is installed Required Required Required 4 x 3.5-inch |
| Temperature |
Storage -40–65°C (-40–149°F) Continuous operation (for altitude less than 950 m or 3117 ft) 10–35°C (50–95°F) with no direct sunlight on the equipment Fresh air For information about fresh air, see the Expanded operating temperature section. Maximum temperature gradient (operating and storage) 20°C/h (68°F/h) |
| Humidity |
Storage 5% to 95% RH with 33°C (91°F) maximum dew point. Atmosphere must be noncondensing at all times. Operating 10% to 80% RH with 29°C (84.2°F) maximum dew point. |
| Altitude (unpressurized) |
Operating 3048 m (10,000 ft) Storage 12,000 m (39,370 ft) Table 6. Operating temperature derating specifications OPERATING TEMPERATURE DERATING SPECIFICATIONS Up to 35°C (95°F) Maximum temperature is reduced by 1°C/300 m (1°F/547 ft), above 950 m (3,117 ft). 35–40°C (95–104°F) Maximum temperature is reduced by 1°C/175 m (1°F/319 ft), above 950 m (3,117 ft). 40–45°C (104–113°F) Maximum temperature is reduced by 1°C/125 m (1°F/228 ft), above 950 m (3,117 ft). |
Power
| Power Supply |
550 W AC Platinum 2107 BTU/hr 50/60 Hz 100-240 V AC, autorunning 7.4A-3.5A 350 W AC Bronze 1356 BTU/hr 50/60 Hz 100-240 V AC, autorunning 4.8A-2.4 A |
Physical specifications
| dimensions ( H x W x D) |
4 x 3.5 inch configuration 534.5 mm (21.04 inches) 4 x 3.5 inch configuration 573.6 mm (22.58 inches 8 x 2.5 inch configuration 483.72 mm (19.04 inches) 8 x 2.5 inch configuration 522.85 mm (20.58 inches) |
| Weight | 8 x 2.5-inch configuration 12 kg (26.5 lb) 4 x 3.5-inch configuration 13.6 kg (29.98 lb) |
OPERATING SYSTEM
| Pre Install Os |
OS Provided: Type Non |
SERVICE & SUPPORT
| Warranty | Limited 03-month warranty |
