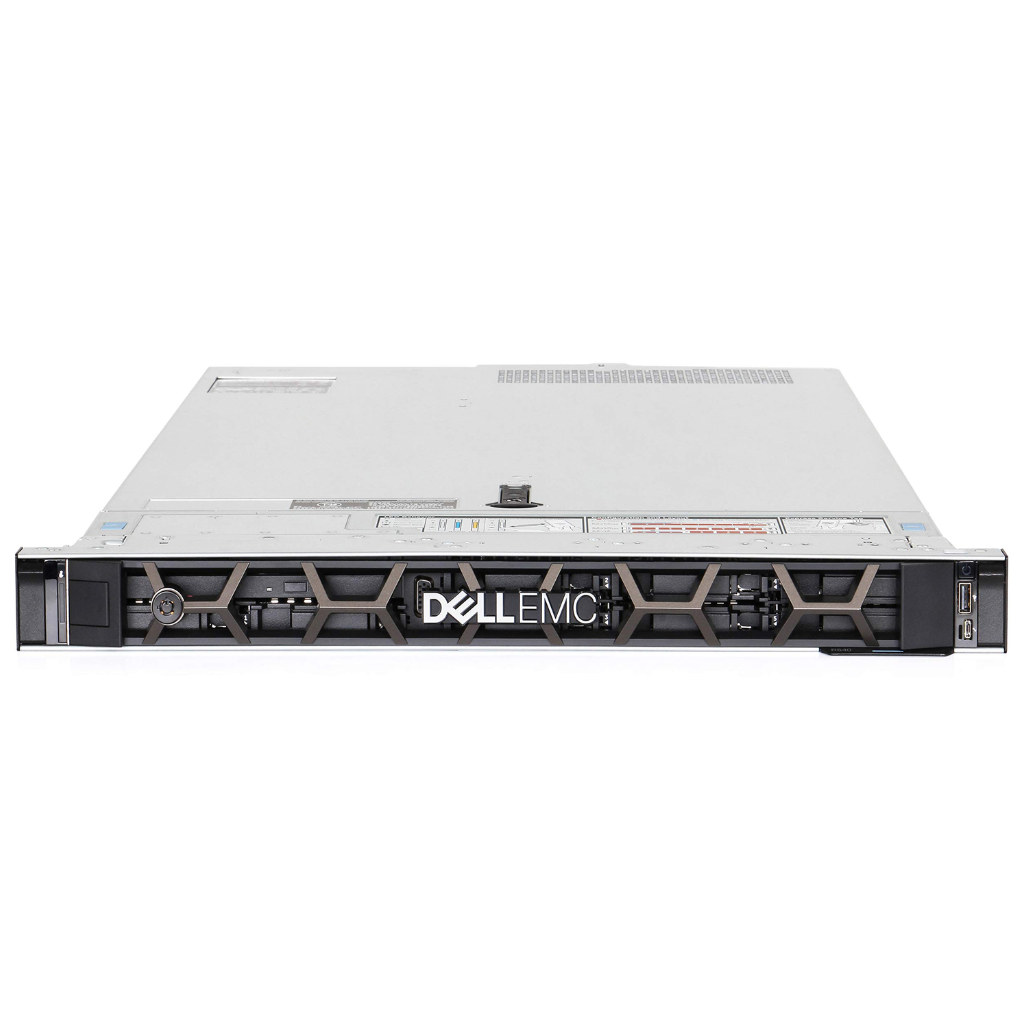

Dell PowerEdge R640 Rack Server

Dell PowerEdge R640 Server

Original price was: AED8,400.Current price is: AED4,999.

Brand: Dell Brand
  • Dell PowerEdge R640 Rack Server (Refurbished)
  •  Dual Intel® Xeon® Gold 6138 Processor Family
  • RAM DDR4 32GB  2666MHz
  • SAS Hot Plug 2 x 600GB 2.5-inch
  • Raid Controller  PERC H330
  • Dual Power Supply 500 Watt
  • Extended Warranty Available
Estimated delivery:2 days
Request a Quote

in stock

Dell PowerEdge R740 Server Price List:

Specification
Brand Dell
Model Dell PowerEdge R640 Rack Server
Product Type
Product type Rack Server
Form Factor
Form Factor 1U
Processor
CPU Information Intel® Xeon® Gold 6138 Processor (27.5M Cache- 2.00 GHz)

Essentials
Product Collection Intel® Xeon® Scalable Processors
Code Name Products formerly Skylake
Vertical Segment Server
Processor Number 6138
Lithography 14 nm
Use Conditions Server/Enterprise

CPU Specifications
Total Cores 20
Total Threads 40
Max Turbo Frequency 3.70 GHz
Processor Base Frequency 2.00 GHz
Cache 27.5 MB L3 Cache
Max # of UPI Links 3
TDP 125 W

Supplemental Information
Marketing Status Launched
Launch Date Q3'17
Servicing Status ESU Notification Issued
End of Servicing Updates Date Sunday | December 31 | 2023
End of Interactive Support Date Sunday | December 31 | 2023
Embedded Options Available Yes
Datasheet View now
Product Brief View now
Additional Information View now

Memory Specifications
Max Memory Size (dependent on memory type) 768 GB
Memory Types DDR4-2666
Maximum Memory Speed 2666 MHz
Max # of Memory Channels 6
ECC Memory Supported ‡ Yes

Expansion Options
Scalability S4S
PCI Express Revision 3
Max # of PCI Express Lanes 48

Package Specifications
Sockets Supported FCLGA3647
TCASE 86°C
Package Size 76.0mm x 56.5mm

Advanced Technologies
Intel® Optane™ Memory Supported ‡ No
Intel® Speed Shift Technology Yes
Intel® Turbo Boost Max Technology 3.0 ‡ No
Intel® Turbo Boost Technology ‡ 2
Intel® Hyper-Threading Technology ‡ Yes
Intel® Transactional Synchronization Extensions Yes
Intel® 64 ‡ Yes
Instruction Set Extensions Intel® AVX-512
# of AVX-512 FMA Units 2
Enhanced Intel SpeedStep® Technology Yes
Intel® Volume Management Device (VMD) Yes

Security & Reliability
Intel vPro® Eligibility ‡ Intel vPro® Platform
Intel® AES New Instructions Yes
Intel® Trusted Execution Technology ‡ Yes
Execute Disable Bit ‡ Yes
Intel® Run Sure Technology Yes
Mode-based Execute Control (MBEC) Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
CPU Specifications
Supported Processors Supported Processors
Platinum 8280 Processor 2.7 GHz 28 38.50 MB 205W 3 @ 10.4 GT/s 2933 MT/s 1TB
Platinum 8280L Processor 2.7 GHz 28 38.50 MB 205W 3 @ 10.4 GT/s 2933 MT/s 4.5TB
Platinum 8280M Processor 2.7 GHz 28 38.50 MB 205W 3 @ 10.4 GT/s 2933 MT/s 2TB
Platinum 8276 Processor 2.2 GHz 28 38.50 MB 165W 3 @ 10.4 GT/s 2933 MT/s 1TB
Platinum 8276L Processor 2.2 GHz 28 38.50 MB 165W 3 @ 10.4 GT/s 2933 MT/s 4.5TB
Platinum 8276M Processor 2.2 GHz 28 38.50 MB 165W 3 @ 10.4 GT/s 2933 MT/s 2TB
Platinum 8270 Processor 2.7 GHz 26 35.75 MB 205W 3 @ 10.4 GT/s 2933 MT/s 1TB
Platinum 8268 Processor 2.9 GHz 24 35.75 MB 205W 3 @ 10.4 GT/s 2933 MT/s 1TB
Platinum 8260 Processor 2.4 GHz 24 35.75 MB 165W 3 @ 10.4 GT/s 2933 MT/s 1TB
Platinum 8260L Processor 2.4 GHz 24 35.75 MB 165W 3 @ 10.4 GT/s 2933 MT/s 4.5TB
Platinum 8260M Processor 2.4 GHz 24 35.75 MB 165W 3 @ 10.4 GT/s 2933 MT/s 2TB
Platinum 8260Y Processor 2.4 GHz 24/20 /16 35.75 MB 165W 3 @ 10.4 GT/s 2933 MT/s 1TB
Platinum 8256 Processor 3.8 GHz 4 16.50 MB 105W 3 @ 10.4 GT/s 2933 MT/s 1TB
Platinum 8253 Processor 2.2 GHz 16 22.00 MB 125W 3 @ 10.4 GT/s 2933 MT/s 1TB

1st Generation Intel® Xeon® Scalable Processor Family Platinum Processors
Platinum 8180M Processor 2.5 GHz 28 38.50 MB 205W 3 @ 10.4 GT/s 2666 MT/s 1.5TB
Platinum 8180 Processor 2.5 GHz 28 38.50 MB 205W 3 @ 10.4 GT/s 2666 MT/s 768GB
Platinum 8176 Processor 2.1 GHz 28 38.50 MB 165W 3 @ 10.4 GT/s 2666 MT/s 768GB
Platinum 8170 Processor 2.1 GHz 26 35.75 MB 165W 3 @ 10.4 GT/s 2666 MT/s 768GB
Platinum 8168 Processor 2.7 GHz 24 33.00 MB 205W 3 @ 10.4 GT/s 2666 MT/s 768GB
Platinum 8165 Processor 2.3 GHz 24 33.00 MB 205W 3 @ 10.4 GT/s 2666 MT/s 768GB
Platinum 8164 Processor 2.0 GHz 26 35.75 MB 150W 3 @ 10.4 GT/s 2666 MT/s 768GB
Platinum 8160 Processor 2.1 GHz 24 33.00 MB 150W 3 @ 10.4 GT/s 2666 MT/s 768GB
Platinum 8158 Processor 3.0 GHz 12 24.75 MB 150W 3 @ 10.4 GT/s 2666 MT/s 768GB
Platinum 8156 Processor 3.6 GHz 4 16.50 MB 105W 3 @ 10.4 GT/s 2666 MT/s 768GB
Platinum 8153 Processor 2.0 GHz 16 22.00 MB 125W 3 @ 10.4 GT/s 2666 MT/s 768GB
Memory
Installed Memory RAM DDR4 32GB  2666MHz
Memory Type 24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2933 MT/s, 3TB max
Up to 12 NVDIMM, 192 GB Max
Up to 12 Intel® Optane™ persistent memory PMem, 6.14TB max, (7.68TB max with PMem + LRDIMM)
Supports registered ECC DDR4 DIMMs only
Storage and drives
Installed Hard Disk 2 x 600GB
Device Type SAS Hot Plug
Storage Option Front drive bays: Up to 10 x 2.5” SAS/SATA (HDD/SSD)
with up to 8 NVMe SSD max 76.8TB or up to 10 NVMe drives max 64TB,
or up to 4 x 3.5” SAS/SATA HDD max 64TB
Rear drive bays: Up to 2 x 2.5” SAS/SATA (HDD/SSD), NVMe SSD max 15.36TB
Optional DVD-ROM, DVD+RW
Storage Controller Internal Controllers: PERC H330, HBA330, HBA350i (adapter only), H730P, H740P, H750 (adapter only)
External Controllers: H840, 12 Gbps SAS HBA, HBA355e (adapter only, non-RAID)
Software RAID: S140
Boot Optimized Storage Subsystem (BOSS): HWRAID 2 x M.2 SSDs 240 GB, 480 GB
Internal Dual SD Module
Graphics
Supported Display Adapter Accelerator options Up to 3 single-width GPU (NVIDIA T4) or up to 1 FPGA
Ports/slots/bays
Input/output ports Network Options: 4 x 1GbE
2 x 10GbE + 2 x 1GbE
4 x 10GbE
2 x 25GbE
Front Ports: 1 x Dedicated iDRAC direct USB
1 x USB 2.0
1 x USB 3.0 (optional)
1 x Video

Rear Ports: 1 x Dedicated iDRAC network port
1 x Serial
2 x USB 3.0
1 x Video
PCIe: 3 x Gen3 slots all x16
Video Card: 2 x VGA
Expansion bays iDRAC9, iDRAC RESTful with Redfish, iDRAC Direct, Quick Sync 2 wireless module optional
Security & Reliability
Software/security Embedded management iDRAC9, iDRAC Direct, iDRAC RESTful API
with Redfish, Quick Sync 2 wireless module (optional

TPM 1.2/2.0, TCM 2.0 optional
Cryptographically signed firmware
Secure Boot

Integrations and
connections
Integrations:
Microsoft® System Center
VMware® vCenter™
BMC Truesight
Red Hat Ansible Modules
Power
Power Supply 495W Platinum
750W Platinum
750W 240HVDC Platinum*
1100W 48VDC
1100W Platinum
1100W 380HVDC Platinum
Physical specifications
dimensions ( H x W x D) Height: 42.8mm (1.69”)
Width*: 482.0mm (18.98”)
Depth*: 808.5mm (31.8”)
Weight: 21.9kg (48.3 lbs.)
Rack dimensions 1U
Weight ● Weight: 28.6kg (63lbs.)
OPERATING SYSTEM
Pre Install Os OS Provided: Type
Non

Supported operating system
Canonical® Ubuntu® LTS
Citrix® XenServer
Microsoft Windows Server® LTSC with Hyper-V
Red Hat® Enterprise Linux

SUSE® Linux Enterprise Server
VMware® ESXi
For specifications and interoperability details,
see Dell.com/OS support
SERVICE & SUPPORT
Warranty Limited 03-month warranty
