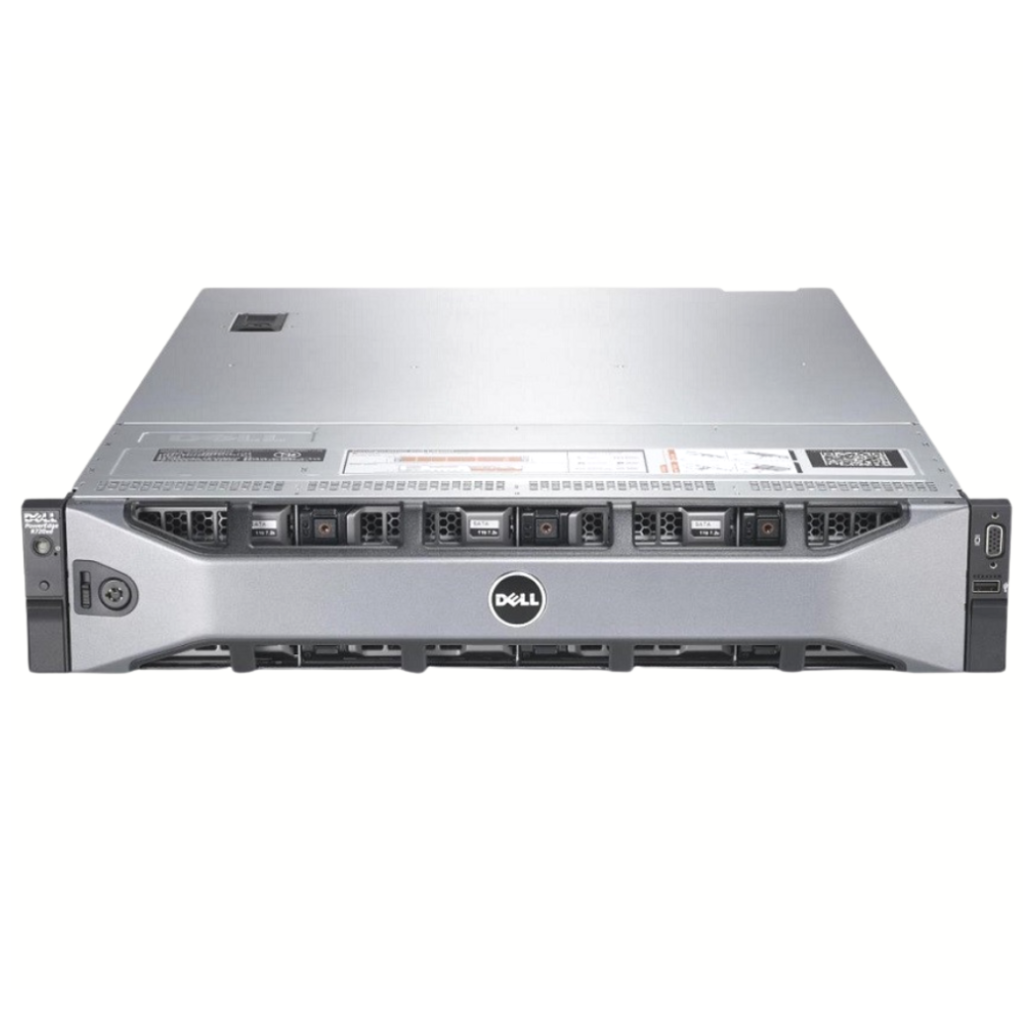

Dell PowerEdge R710 Server
Original price was: AED3,590.AED1,399Current price is: AED1,399.
Brand:
- Dell PowerEdge R710 Rack Server(Refurbished)
- Dual Intel® Xeon® E5500 Series Family
- RAM DDR3 32GB
- SAS Hot Plug 2 x 600GB 2.5-inch
- PERC H200 RAID Controller
- Dual Power Supply 500 Watt
- Extended Warranty Available
Estimated delivery:2 days
Specification
| Brand | Dell |
| Model | Dell PowerEdge R710 Rack Server |
| Part Number | PowerEdge R710 |
Product Type
| Product type | Rack Server |
Form Factor
| Form Factor | 2U |
Processor
| CPU Information |
Dual-core, quad-core, or six-core Intel® Xeon® processor 5500 and 5600 series Intel Xeon 5500 and 5600 Processor Series FeaturesTable 8. Feature 5500 Series 5600 Series # Cores 4 6 Last Level Cache 8MB shared 12MB shared Multi-processor support 1-2 Processors 1-2 Processors Front Side Bus (FSB) (MT/s)/ Link Frequency (GT/s) Up to 6.4 GT/s Up to 6.4 GT/s Max Thermal Design Power (TDP) 130W (workstation) 95W (server) 130W (workstation) 95W (server) Max Frequency >3GHz >3GHz Memory Controller Integrated 3-channel DDR3 Integrated 3-channel DDR3 Process Technology 45nm 32nm Intel® Trusted Execution Technology No Yes Intel® Advanced Encryption Security- New Instructions No Yes Intel® Virtualization Technology Yes Yes Intel® 64 Yes Yes Intel® Hyper-Threading Technology Yes Yes Dell PowerEdge R710 Technical Guide 29 Feature 5500 Series 5600 Series Socket LGA1366 LGA136 |
CPU Specifications
| Supported Processors |
Processor Up to two of the following depending on model Model CPU frequency X5680 3.33GHz 130W 12M 6 6.4GT/s X5670 2.93GHz 95W 12M 6 6.4GT/s X5660 2.80GHz 95W 12M 6 6.4GT/s X5650 2.66GHz 95W 12M 6 6.4GT/s L5640 2.26GHz 60W 12M 6 5.86GT/s X5677 3.46GHz 130W 12M 4 6.4GT/s X5667 3.06GHz 95W 12M 4 6.4GT/s E5640 2.66GHz 80W 12M 4 5.86GT/s E5630 2.53GHz 80W 12M 4 5.86GT/s E5620 2.40GHz 80W 12M 4 5.86GT/s L5630 2.13GHz 40W 12M 4 5.86GT/s L5609 1.86GHz 40W 12M 4 4.8GT/s X5560 2.80GHz 95W 8M 4 6.4GT/s Dell PowerEdge R710 Technical Guide 30 Model Speed Power Cache Cores QPI Speed E5530 2.40GHz 80W 8M 4 5.86GT/s L5520 2.26GHz 60W 8M 4 5.86GT/s E5507 2.26GHz 80W 4M 4 4.8GT/s E5506 2.13GHz 80W 4M 4 4.8GT/s E5503 2.00GHz 80W 4M 4 4.8GT/s |
Memory
| Installed Memory | RAM DDR3 32GB 1066 MHz DDR3 SDRAM |
| Memory Type |
Up to 288GB (18 DIMM slots): 1GB/2GB/4GB/8GB/16GB DDR3 800MT/s, 1066MT/s, or 1333MT/s Key features of the R710 memory system include the following: • Registered (RDIMM) and Unbuffered (UDIMM) ECC DDR3 technology • Up to 288 GB of RDIMM memory (eighteen 16 GB dual rank RDIMMs) • Up to 24 GB of UDIMM memory (twelve 2 GB UDIMMs) • Support for 1066/1333 MT/s single- and dual-rank DIMMs • Support for 1066 MT/s quad-rank DIMMs • Support for 1.35V low voltage (LV) DIMMs with 5600 series processors • 64 data and eight ECC bits per channel • Support for single DIMM configuration (DIMM in socket A1 only) • Support for ODT (On Die Termination) clock gating (CKE) to conserve power when DIMMs are not accessed (DIMMs enter a low power self-refresh mode) • I2C access to SPD EEPROM for access to RDIMM thermal sensors • Single Bit Error Correction • SDDC (Single Device Data Correction, x4 or x8 devices) • Support for Closed Loop • Thermal Management on RDIMMs and UDIMMs • Multi Bit Error Detection Support for Memory Optimized Mode • Support for Advanced ECC mode • Support for Memory Mirroring • Support for Memory Sparing with 5600 series processors |
Storage and drives
| Installed Hard Disk | 2 x 600GB |
| Device Type | SAS Hot Plug |
| Storage Option |
2.5” SAS (10,000 rpm): 146GB, 300GB, 600GB 2.5” SAS (15,000 rpm): 73GB, 146GB 2.5” SATA II (7,200 rpm): 160GB, 250GB, 500GB, 1TB 2.5” nearline SAS (7,200 rpm): 500GB, 1TB 2.5” nearline SAS (7,200 rpm): 1TB 3.5” SATA (7,200 rpm): 250GB, 500GB, 1TB, 2TB, 4TB 3.5” SATA (5,400 rpm): 2TB 3.5” 6Gps SAS (7,200 rpm): 2TB 3.5” SAS (10,000 rpm): 146GB, 600GB 3.5” SAS (15,000 rpm): 146GB, 300GB, 450GB, 600GB 3.5” nearline SAS (7,200 rpm): 500GB, 1TB, 2TB, 4TB 2.5” SATA SSD: 50GB, 100GB 2.5” SAS SSD: 149GB Solid State Storage Cards: Fusion-io ® 160IDSS—160GB ioDrive PCIe solid state storage card Fusion-io ® 640IDSS—640GB ioDrive Duo PCIe solid state storage card |
| Storage Controller |
Supported Raid Controller: Internal Controllers: PERC H200 (6Gb/s) PERC H700 (6Gb/s) (non- volatile battery-backed cache: 512MB, 1G) SAS 6/iR PERC 6/i (battery-backed cache: 256MB) External Controllers: PERC H800 (6Gb/s) (non-volatile battery-backed cache: 512MB, 1G) PERC 6/E (battery-backed cache: 256MB, 512MB) External HBAs (non-RAID): 6Gb/s SAS HBA SAS 5/E HBA LSI2032 PCIe SCSI HBA |
Graphics
| Installed Graphic Card | Matrox ® G200 with 8MB of cache |
| Supported Display Adapter | QUADRO K22000 - 4GB DDR5 |
Ports/slots/bays
| Input/output ports |
6 PCIe slots: • 1 x16 full-length, full-height • 3 x8 full-length, full-height • 3 x8 half-length, half-height • 1 x16 full-length, full-height (optional) |
Networking/communication
| Communications |
Can support These Network Adapter optional: Broadcom® 5720 quad-port 1GbE Base-T (no TOE or iSCSI offload) Broadcom 57800S dual-port 10GbE Base-T with 2 x 1GbE (TOE and iSCSI offload available on 10GbE ports Broadcom 57800S dual-port 10GbE SFP+ with 2 x 1GbE (TOE and iSCSI offload available on 10GbE ports Broadcom 57840S quad-port 10GbE SFP+ Rack NDC (NPAR1.0, SRIOV, DCB, iSCSI and FCoE offloads and CEM) Intel I350 quad-port 1GbE Base-T (no TOE or iSCSI offload) Intel X540 dual-port 10GbE Base-T with 2 x 1GbE (FCoE capability enabled on the 10GbE ports) |
| Ports | 2 x 1GbE Dual Port LOM |
Security & Reliability
| Software/security |
Remote Management iDRAC6 Enterprise (optional) Systems Management Dell™ OpenManage™ Microsoft ® System Center Essential (SCE) 2010 v2 |
Environmental specifications
| Certifications |
Operating 0.26 Grms at 5–350Hz for 5 minutes in operational orientations Storage 1.54 Grms at 10–250Hz for 10 minutes in all orientations Maximum Shock Operating Half sine shock in all operational orientations of 31 G 5% with a pulse duration of 2.6ms 10% Storage Half sine shock on all six sides of 71G 5% with a pulse duration of 2ms 10% Square wave shock on all six sides of 27G with velocity change @ 235 in/sec or greater |
| Temperature |
Continuous operation: 10 °C to 35 °C. De-rate maximum allowable dry bulb temperature at 1 °C/300 m above 900 m (1°F /550 ft). |
| Humidity |
See Fresh Air for humidity information Storage 5% to 95% at a maximum wet bulb temperature of 33°C (91°F); atmosphere must be condensing at all times |
| Altitude (unpressurized) |
Operating -16 to 3048m (-50 to 10,000ft) Note: For altitudes above 2950 feet, the maximum operating temperature is de-rated 1°F/550ft Storage -16 to 10,600m (-50 to 35,000ft) |
Power
| Power Supply |
Energy Smart: redundant hot-plug high-efficient 570W or High Output: redundant hot-plug 870W |
Physical specifications
| dimensions ( H x W x D) |
Height 87.3 mm (3.44 inch) Width With rack latches 482.4 mm (18.98 inch) Without rack latches 444 mm (17.48 inch) Depth (includes bezel) 755.8 mm (29.75 inch) |
| Rack dimensions | U height: 2U Rack width: 19” Mountable depth: 27” |
| Weight | 29.5 kg (65.03 lbs) |
OPERATING SYSTEM
| Pre Install Os |
OS Provided: Type Non Microsoft® Windows Server® 2012 Microsoft Windows ® Small Business Server 2011 Microsoft Windows Small Business Server 2008 Microsoft Windows Server 2008 SP2, x86/x64 (x64 includes Hyper-V ® ) Microsoft Windows Server 2008 R2, x64 (includes Hyper-V v2) Windows ® HPC Server 2008 R2 Novell ® SUSE ® Linux Enterprise Server Red Hat ® Enterprise Linux ® Oracle® Solaris™ Optional Embedded Hypervisors: Citrix ® Xen Server ® VMware® vSphere® including ESX™ and ESXi™ Red Hat Enterprise Virtualization® For more information on the specific versions and additions, visit Dell.com/OS support |
SERVICE & SUPPORT
| Warranty | Limited 03-month warranty |
