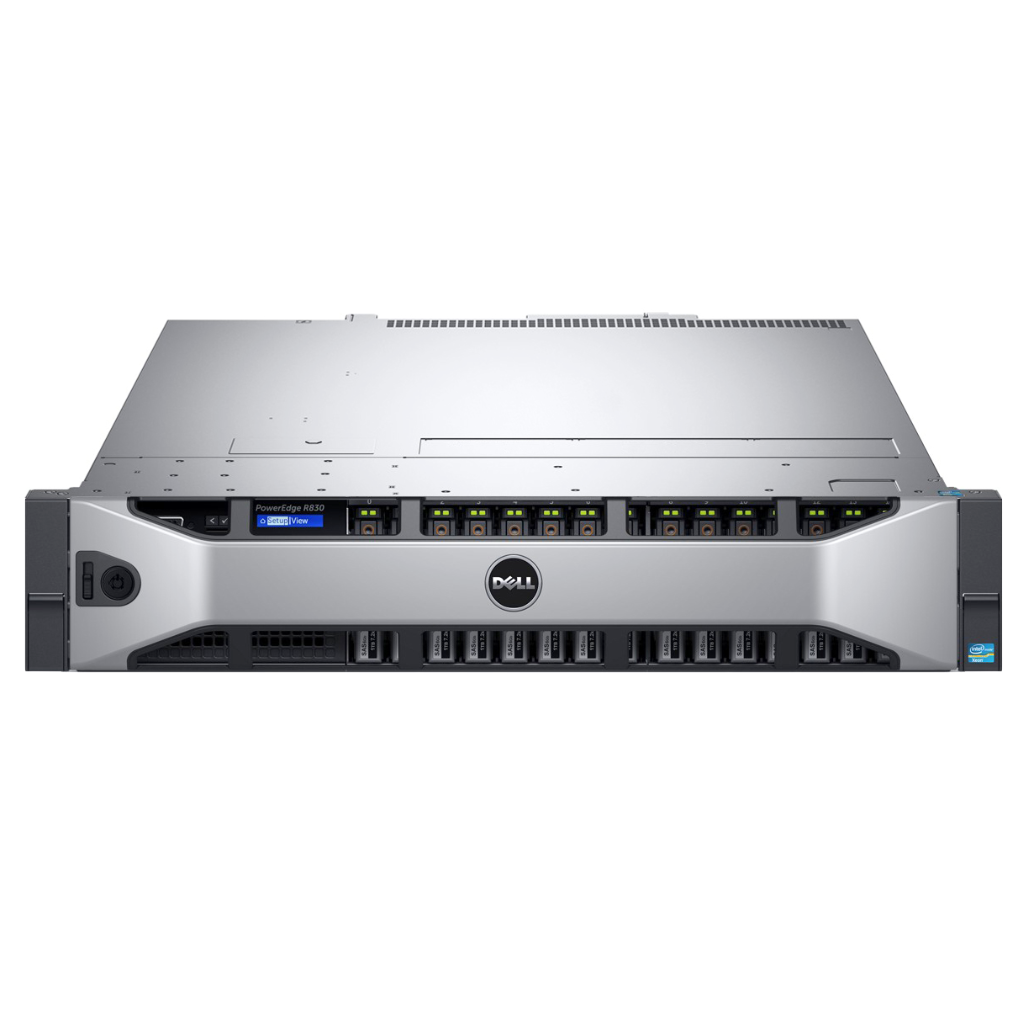

Name: Dell PowerEdge R830 Server
SKU: 4339
Availability: InStock

Specification

Brand	Dell
Model	Dell PowerEdge R830Rack Server

Product Type

Product type

Rack Server

Form Factor

Processor

CPU Information

Dual Intel® Xeon® processor E5-4600 v4 product family
Total Threads 40
Max Turbo Frequency 2.60 GHz
Intel® Turbo Boost Technology 2.0 Frequency‡ 2.60 GHz
Processor Base Frequency 2.10 GHz
Cache 50 MB
Bus Speed 8 GT/s
# of QPI Links 2
TDP 105 W
Supplemental Information
Marketing StatusDiscontinued
Launch Date Q2'16
Servicing Status End of Servicing Updates
End of Servicing Updates Date Thursday, June 30, 2022
Embedded Options Available No
DatasheetView now
Memory Specifications
Max Memory Size (dependent on memory type) 1.5 TB
Memory Types DDR4
Max # of Memory Channels 4
Max Memory Bandwidth 68 GB/s
Physical Address Extensions 46-bit
ECC Memory Supported ‡ Yes
Expansion Options
Scalability4S
PCI Express Revision 3.0
PCI Express Configurations ‡ x4, x8, x16
Max # of PCI Express Lanes 40
Package Specifications
Sockets Supported FCLGA2011
Max CPU Configuration4
TCASE 79
Package Size45mm x 52.5mm
Advanced Technologies
Intel® Turbo Boost Technology ‡ 2.0
Intel® Hyper-Threading Technology ‡ Yes
Intel® Transactional Synchronization Extensions Yes
Intel® 64 ‡ Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Flex Memory Access No
Intel® Instruction Replay Technology No
Security & Reliability
Intel® AES New Instructions Yes
Secure Key Yes
Intel® OS GuardYes
Intel® Trusted Execution Technology ‡ Yes
Execute Disable Bit ‡ Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ Yes

CPU Specifications

Supported Processors

Supported Processors
The PowerEdge R830 is a powerful server accommodating up to 4 Intel Xeon E5-4600 v3/v4

Memory

Installed Memory	RAM DDR4 32GB 2666MHz
Memory Type	(48 DIMM slots): 8GB/16GB/32GB/64GB DDR4, RDIMM, LRDIMM up 2400MT/s

Storage and drives

Installed Hard Disk	2 x 600GB
Device Type	SAS Hot Plug
Storage Option	16 x 2.5" SATA/SAS SSD, SAS HDD (15K, 10K), nearline SAS HDD (7.2K) Drive bays Up to 16 x 2.5"
Storage Controller	Internal controllers: PERC H330, PERC H730, PERC H730P External HBAs (RAID): PERC H830 External HBAs (non-RAID): 12Gbps SAS HBA

Graphics

Supported Display Adapter

3 x 300W (double-width) or 6 x 150W
(single-width)
NOTE: *Only supports up to 2 x NVIDIA
M10 GPUs

Ports/slots/bays

Expansion Slots	USB 3.0 Up to 5 total: 1 front, 2 rear, 2 internal (secure), 2 optional USB 2.0 front via Universal Media Bay, or standard on 8LFF chassis Display Port 1 (SFF 1 front, optional via Universal Media Bay, 826708-B21), 8 LFF chassis standard FlexibleLOM Network Ports 4 x 1 Gb ports shipping standard with optional FlexibleLOM or stand-up card HPE iLO Remote Management Network Port 1 Gb Dedicated Front iLO Service Port 1 standard (Not available on 12 LFF chassis or when SID is ordered, note iLO dongle required 880123-B21) Micro SD Slot 1 Micro SD Expansion Slots # Technology Bus Width Connector Width Form Factor Notes 1 PCIe 3.0 X8 X8 Full-height, full-length slot Proc 1 2 PCIe 3.0 X16 X16 Full-height, full-length slot Proc 1 3 PCIe 3.0 X8 X8 Full-height, half-length slot Proc 1 1 PCIe 3.0 X8 X8 Full-height, full-length slot Proc 2 2 PCIe 3.0 X16 X16 Full-height, full-length slot Proc 2 3 PCIe 3.0 X8 X8 Full-height, half-length slot
Input/output ports	7 PCIe slots: • 2 x16 half-length, full-height • 1 x8 half-length, full-height • 3 x8 half-length, half-height • 1 x8 half-length, full-height for the RAID controller
Expansion bays	iDRAC9, iDRAC RESTful with Redfish, iDRAC Direct, Quick Sync 2 wireless module optional

Networking/communication

Communications

Broadcom® 5720 quad-port 1GbE Base-T (no TOE or iSCSI offload)
Broadcom 57800S dual-port 10GbE Base-T with 2 1GbE (TOE and iSCSI offload available on 10GbE ports)
Broadcom 57800S dual-port 10GbE SFP+ with 2 1GbE (TOE and iSCSI offload available on 10GbE ports)
Intel I350 quad-port 1GbE Base-T (no TOE or iSCSI offload)
Intel X540 dual-port 10GbE Base-T with 2 1GbE (FCoE capability enabled on the 10GbE ports)

Ports

Broadcom 5720 quad-port 1GbE Base-T

Security & Reliability

Software/security

Systems management: IPMI 2.0 compliant;
Dell OpenManage Essentials; Dell OpenManage Mobile;
Dell OpenManage Power Center
Remote management: iDRAC8 with Lifecycle Controller,
iDRAC8 Express (default), iDRAC8 Enterprise (upgrade)
8GB vFlash media (upgrade), 16GB vFlash media
(upgrade) iDRAC Quick Sync
Dell OpenManage Integrations:
• Dell OpenManage Integration Suite for Microsoft®
System Center
• Dell OpenManage Integration for VMware® vCenter™
Dell OpenManage Connections:
• HP Operations Manager, IBM Tivoli® Netcool® and CA
Network and Systems Management
• Dell Open Manage Plug-in for Oracle® Database
Manage

Power

Power Supply

Platinum 750W AC, auto-ranging; Platinum 1600W AC, auto-ranging; hot-plug redundant 1100W AC

Physical specifications

dimensions ( H x W x D)	H: 86.8 mm (3.417 in), W: 482.4 mm (18.99 in), D: 811.06 mm (31.93 in) with PSU and bezel D: 776.46 mm (30.59 in) PSU without bezel
Rack dimensions	2U
Weight	Weight: 33.1kg (73.0lbs.

OPERATING SYSTEM

Pre Install Os

OS Provided: Type
Non

SERVICE & SUPPORT

Warranty

Limited 03-month warranty
