AED19,400.00 Original price was: AED19,400.00.AED9,299.00Current price is: AED9,299.00.

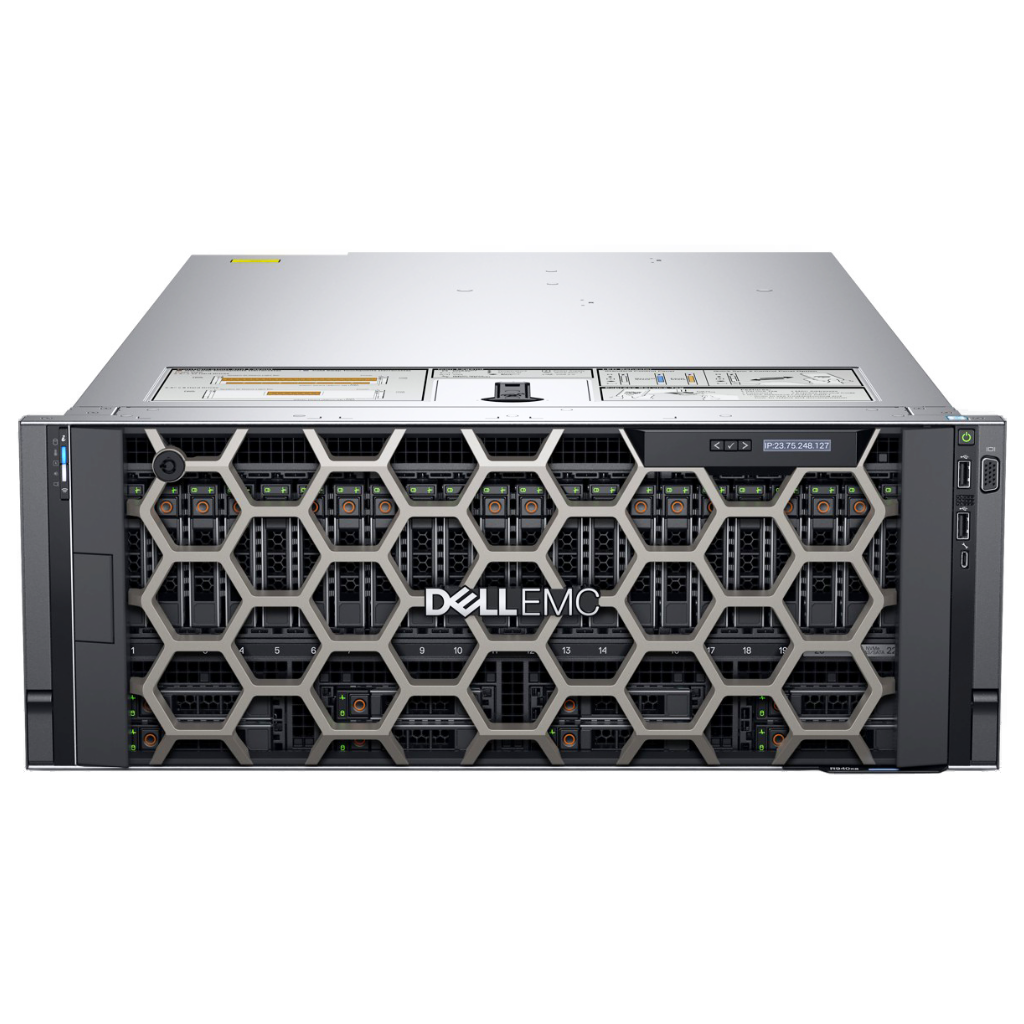

Dell R940xa Server Price List.
Dell R940xa Server (Standard)
40 Core / 80 vCPU ( 2x Xeon Gold 6138)
64GB/DDR4(4x16GB)
2 x 600GB SAS HDD
AED 9999/-
Dell R940xa Server (Reliable)
80 Core / 160 vCPU ( 4x Xeon Gold 6138)
128GB/DDR4(4x32GB)
2 x 600GB SAS HDD
AED 12999/-
Dell R940xa Server (Professional)
96 Core / 192 vCPU ( 4x Xeon Platinum 8160)
256GB/DDR4(8x32GB)
2 x 1.2TB SAS HDD
AED 16999/-
Dell R940xa Server (Advanced)
112 Core / 224 vCPU ( 4x Xeon Platinum 8175)
512GB/DDR4(16x32GB)
4 x 1.2TB SAS HDD
AED 24999/-
Dell PERC H730P RAID Controller, 6 PCIe Slots, 4X1Gb Gigabit Network Lan Ports, Hot-Swap dual Dell 750W Power supply
| Brand | Dell |
| Model | Dell PowerEdge R940xa Server |
| Product type | Rack Server |
| Form Factor | 4U |
| CPU Information |
Intel® Xeon® Gold 6138 Processor (27.5M Cache- 2.00 GHz)
Essentials Product Collection Intel® Xeon® Scalable Processors Code Name Products formerly Skylake Vertical Segment Server Processor Number 6138 Lithography 14 nm Use Conditions Server/Enterprise CPU Specifications Total Cores 20 Total Threads 40 Max Turbo Frequency 3.70 GHz Processor Base Frequency 2.00 GHz Cache 27.5 MB L3 Cache Max # of UPI Links 3 TDP 125 W Supplemental Information Marketing Status Launched Launch Date Q3'17 Servicing Status ESU Notification Issued End of Servicing Updates Date Sunday | December 31 | 2023 End of Interactive Support Date Sunday | December 31 | 2023 Embedded Options Available Yes Datasheet View now Product Brief View now Additional Information View now Memory Specifications Max Memory Size (dependent on memory type) 768 GB Memory Types DDR4-2666 Maximum Memory Speed 2666 MHz Max # of Memory Channels 6 ECC Memory Supported ‡ Yes Expansion Options Scalability S4S PCI Express Revision 3 Max # of PCI Express Lanes 48 Package Specifications Sockets Supported FCLGA3647 TCASE 86°C Package Size 76.0mm x 56.5mm Advanced Technologies Intel® Optane™ Memory Supported ‡ No Intel® Speed Shift Technology Yes Intel® Turbo Boost Max Technology 3.0 ‡ No Intel® Turbo Boost Technology ‡ 2 Intel® Hyper-Threading Technology ‡ Yes Intel® Transactional Synchronization Extensions Yes Intel® 64 ‡ Yes Instruction Set Extensions Intel® AVX-512 # of AVX-512 FMA Units 2 Enhanced Intel SpeedStep® Technology Yes Intel® Volume Management Device (VMD) Yes Security & Reliability Intel vPro® Eligibility ‡ Intel vPro® Platform Intel® AES New Instructions Yes Intel® Trusted Execution Technology ‡ Yes Execute Disable Bit ‡ Yes Intel® Run Sure Technology Yes Mode-based Execute Control (MBEC) Yes Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® VT-x with Extended Page Tables (EPT) ‡ Yes |
| Supported Processors |
Up to two 2nd Generation Intel® Xeon® Scalable processors, up to 22 cores each
Supported Processors Platinum 8280 Processor 2.7 GHz 28 38.50 MB 205W 3 @ 10.4 GT/s 2933 MT/s 1TB Platinum 8280L Processor 2.7 GHz 28 38.50 MB 205W 3 @ 10.4 GT/s 2933 MT/s 4.5TB Platinum 8280M Processor 2.7 GHz 28 38.50 MB 205W 3 @ 10.4 GT/s 2933 MT/s 2TB Platinum 8276 Processor 2.2 GHz 28 38.50 MB 165W 3 @ 10.4 GT/s 2933 MT/s 1TB Platinum 8276L Processor 2.2 GHz 28 38.50 MB 165W 3 @ 10.4 GT/s 2933 MT/s 4.5TB Platinum 8276M Processor 2.2 GHz 28 38.50 MB 165W 3 @ 10.4 GT/s 2933 MT/s 2TB Platinum 8270 Processor 2.7 GHz 26 35.75 MB 205W 3 @ 10.4 GT/s 2933 MT/s 1TB Platinum 8268 Processor 2.9 GHz 24 35.75 MB 205W 3 @ 10.4 GT/s 2933 MT/s 1TB Platinum 8260 Processor 2.4 GHz 24 35.75 MB 165W 3 @ 10.4 GT/s 2933 MT/s 1TB Platinum 8260L Processor 2.4 GHz 24 35.75 MB 165W 3 @ 10.4 GT/s 2933 MT/s 4.5TB Platinum 8260M Processor 2.4 GHz 24 35.75 MB 165W 3 @ 10.4 GT/s 2933 MT/s 2TB Platinum 8260Y Processor 2.4 GHz 24/20 /16 35.75 MB 165W 3 @ 10.4 GT/s 2933 MT/s 1TB Platinum 8256 Processor 3.8 GHz 4 16.50 MB 105W 3 @ 10.4 GT/s 2933 MT/s 1TB Platinum 8253 Processor 2.2 GHz 16 22.00 MB 125W 3 @ 10.4 GT/s 2933 MT/s 1TB 1st Generation Intel® Xeon® Scalable Processor Family Platinum Processors Platinum 8180M Processor 2.5 GHz 28 38.50 MB 205W 3 @ 10.4 GT/s 2666 MT/s 1.5TB Platinum 8180 Processor 2.5 GHz 28 38.50 MB 205W 3 @ 10.4 GT/s 2666 MT/s 768GB Platinum 8176 Processor 2.1 GHz 28 38.50 MB 165W 3 @ 10.4 GT/s 2666 MT/s 768GB Platinum 8170 Processor 2.1 GHz 26 35.75 MB 165W 3 @ 10.4 GT/s 2666 MT/s 768GB Platinum 8168 Processor 2.7 GHz 24 33.00 MB 205W 3 @ 10.4 GT/s 2666 MT/s 768GB Platinum 8165 Processor 2.3 GHz 24 33.00 MB 205W 3 @ 10.4 GT/s 2666 MT/s 768GB Platinum 8164 Processor 2.0 GHz 26 35.75 MB 150W 3 @ 10.4 GT/s 2666 MT/s 768GB Platinum 8160 Processor 2.1 GHz 24 33.00 MB 150W 3 @ 10.4 GT/s 2666 MT/s 768GB Platinum 8158 Processor 3.0 GHz 12 24.75 MB 150W 3 @ 10.4 GT/s 2666 MT/s 768GB Platinum 8156 Processor 3.6 GHz 4 16.50 MB 105W 3 @ 10.4 GT/s 2666 MT/s 768GB Platinum 8153 Processor 2.0 GHz 16 22.00 MB 125W 3 @ 10.4 GT/s 2666 MT/s 768GB |
| Installed Memory | RAM DDR4 32GB 2133MHz |
| Memory Type |
24 DDR4 RDIMM slots, up to 2933MT/s, 1TB max
Supports registered ECC DDR4 DIMMs only Max supported Memory 12.288 TB NOTE: Do not mix 8 GB RDIMMs and 16 GB NVDIMM-Ns. NOTE: Do not mix 64 GB LRDIMMs, 128 GB LRDIMMs and 256 GB LRDIMMs. NOTE: 256GB does not support GPU configuration. NOTE: 256GB LRDIMMs only support 8x 2.5" Chassis at 30oC ambient temperature. |
| Installed Hard Disk | 2 x 600GB |
| Storage Option |
Up to eight 2.5-inch SAS/SATA front accessible drives in slots 0–7
Up to eight 2.5-inch SATA front accessible drives in slots 0–7 Up to twenty-four 2.5-inch SAS/SATA front accessible drives in slots 0–23 Up to twelve 2.5-inch SAS/SATA front accessible drives in slots 0–11 + twelve SAS/SATA/NVMe front accessible drives in slots 12–23 Up to twenty-four 2.5-inch NVMe front accessible drives in slots 0–23 The NVMe SSD drives supported by the Dell EMC PowerEdge R940xa are: • 800 GB 2.5 inch device • 1 TB 2.5 inch device • 1.6 TB 2.5 inch device • 2 TB 2.5 inch device • 3.2 TB 2.5 inch device • 4 TB 2.5 inch device • 6.4 TB 2.5 inch device • KIT,CRD,NVM,1.6,HHHL,PM1725 • KIT,CRD,CTL,NVME,PM1725 • KIT,CRD,NVM,3.2,HHHL,PM1725 |
| Storage Controller |
The PowerEdge R840 system supports:
Internal storage controller cards: PowerEdge RAID Controller (PERC) H330, H350, PERC H730P, H740P, H750, HBA330, HBA350i, HBA350 and Boot Optimized Server Storage (BOSS-S1) External storage controller cards: S140, 12 Gbps SAS HBA, including HBA355e |
| Supported Display Adapter |
3 x 300W (double-width) or 6 x 150W
(single-width) NOTE: *Only supports up to 2 x NVIDIA M10 GPUs |
| Expansion Slots |
Two USB 2.0-compliant ports
● One micro USB 2.0-compliant port for iDRAC Direct NOTE: The micro USB 2.0 compliant port can only be used as an iDRAC Direct or a management port. ● One optional USB 3.0-compliant port |
| Input/output ports |
Network options
2 x 1GbE BaseT LOM + (optional LOM riser) 2 x 1GbE BaseT or 2 x10GbE SFP+ or 2 x 10GbE BaseT or 2x 25GbE SPF+ or 2 x 16Gb Fibre Channel Front ports: 1 x USB 3.0, 1 managed (micro-usb), dedicated IDRAC Direct USB. Rear ports: Video, serial, iDRAC dedicated LAN, 2 x USB 3.0 Internal ports: 1 x USB 3.0 Video card: VGA PCIe: Up to 5 x Gen3 slots (3 x16 + 2 x4) |
| Expansion bays | iDRAC9, iDRAC RESTful with Redfish, iDRAC Direct, Quick Sync 2 wireless module optional |
| Communications |
Integrations and connections Integrations:
Microsoft® System Center VMware® vCenter™ BMC Truesight Red Hat Ansible Modules Connections: Nagios Core & Nagios XI Micro Focus Operations Manager i (OMi) IBM Tivoli Netcool/OMNIbus IBM Tivoli® Network Manager IP Edition |
| Ports | Four RJ-45 ports that support 10, 100 and 1000 Mbps |
| Software/security |
Security TPM 1.2/2.0, TCM 2.0 optional
Cryptographically signed firmware Silicon Root of Trust Secure Boot System Lockdown (requires iDRAC Enterprise or Datacenter) Secure Eras |
| Power Supply |
1100W Platinum
750W Platinum 750W 240VDC Platinum 1100W Platinum 1100W 380VDC Platinum Hot plug power supplies with full redundancy option 6 fans with N +1 redundancy |
| dimensions ( H x W x D) |
Height: 86.8mm (3.4”)
Width: 448.0mm (17.6”) Depth: 810.0mm (31.9”) |
| Rack dimensions | 4U |
| Weight | 36.6 kg (80.68 lb) |
| Pre Install Os |
OS Provided: Type
Non Supported operating system Canonical® Ubuntu® LTS Citrix® Hypervisor Microsoft® Windows Server® LTSC with Hyper-V Oracle® Linux Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi For specifications and interoperability details, see Dell.com/OSsupport |
| Warranty | Limited 03-month warranty |

Free Shipping On order over 500AED

Money Back Guaranteed in 15 days return.

Store Pickup Collect Your Order In-Store .

100% Genuine product.

24/7 Tech Support online available.

Three-Months Warranty.

Refurbished Grade "A" Condition.
