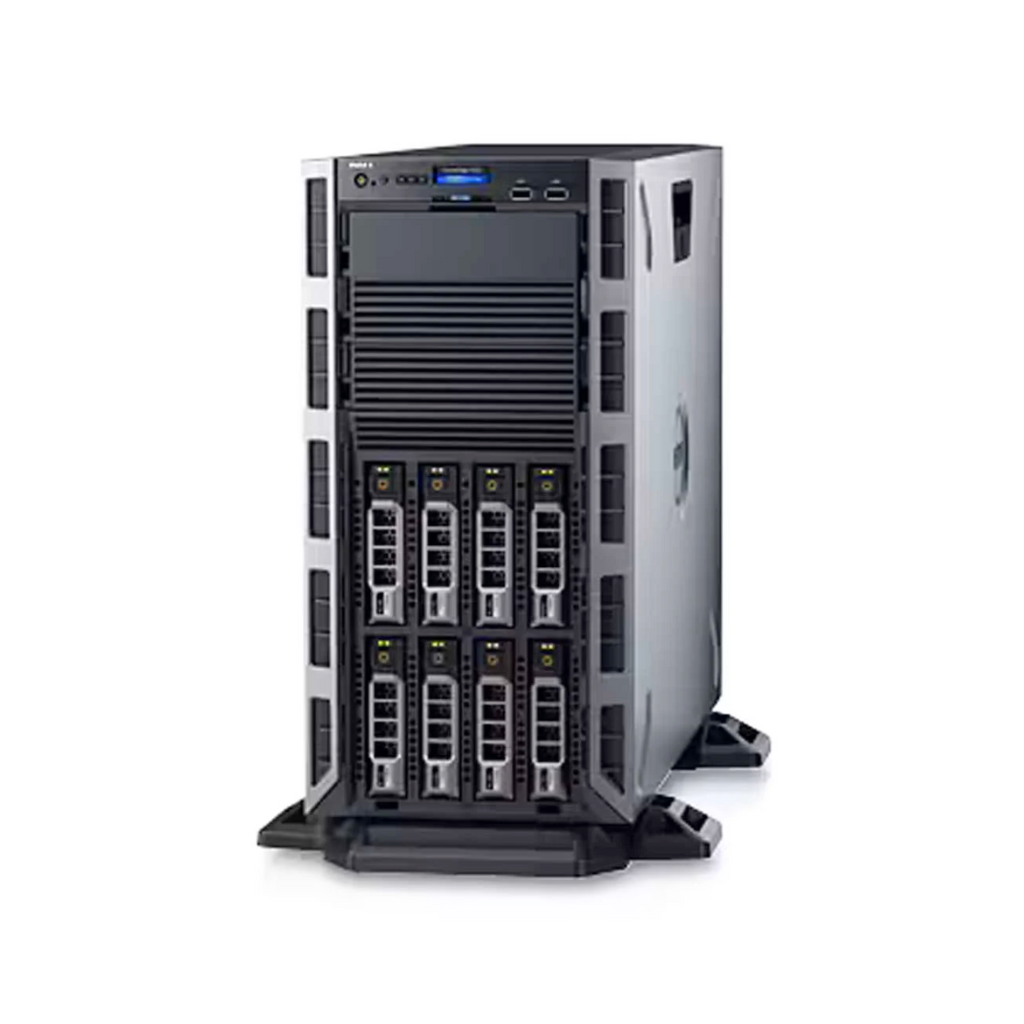

Dell PowerEdge T330 Server
Original price was: AED7,400.AED3,499Current price is: AED3,499.
Brand:
- Dell PowerEdge T330 Rower Server (Refurbished)
- Single Intel® Xeon® E3-1200 V4 Series Family
- RAM DDR4 32GB 2666MHz
- SAS Hot Plug 2 x 600GB
- Raid Controller PERC H330
- Dual Power Supply
- Extended Warranty Available
Estimated delivery:2 days
Specification
| Brand | Dell |
| Model | Dell PowerEdge T330 Server |
| Part Number | PowerEdge T330 |
Product Type
| Product type | Tower Server |
Form Factor
| Form Factor | 5U |
Processor
| CPU Information |
CPU Specifications Intel® Xeon® Processor E3 v6 Family E3-1220 V6 Total Cores 4 Total Threads 4 Max Turbo Frequency 3.50 GHz Intel® Turbo Boost Technology 2.0 Frequency‡ 3.50 GHz Processor Base Frequency 3.00 GHz Cache 8 MB Intel® Smart Cache Bus Speed 8 GT/s TDP 72 W Supplemental Information Marketing StatusDiscontinued Launch Date Q1'17 Servicing Status ESU Notification Issued End of Servicing Updates Date Sunday, March 31, 2024 Embedded Options Available No DatasheetView now Memory Specifications Max Memory Size (dependent on memory type) 64 GB Memory Types DDR4-2400, DDR3L-1866 Max # of Memory Channels 2 Max Memory Bandwidth 37.5 GB/s ECC Memory Supported ‡ Yes GPU Specifications Graphics Output N/A 4K Support No Max Resolution (HDMI)‡ N/A Max Resolution (DP)‡ N/A Max Resolution (eDP - Integrated Flat Panel)‡ N/A Max Resolution (VGA)‡ N/A DirectX* Support N/A OpenGL* Support N/A Intel® Quick Sync Video No Intel® InTru™ 3D Technology No Intel® Clear Video HD Technology No Intel® Clear Video Technology No # of Displays Supported ‡0 Expansion Options Scalability1S Only PCI Express Revision 3.0 PCI Express Configurations ‡ 1x16, 2x8, 1x8+2x4 Max # of PCI Express Lanes 16 Package Specifications Sockets Supported FCLGA1151 Max CPU Configuration1 Package Size37.5mm x 37.5mm Advanced Technologies Intel® Optane™ Memory Supported ‡ Yes Intel® Turbo Boost Technology ‡ 2.0 Intel® Hyper-Threading Technology ‡ No Intel® Transactional Synchronization Extensions Yes Intel® 64 ‡ Yes Instruction Set 64-bit Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 Idle States Yes Enhanced Intel SpeedStep® Technology Yes Thermal Monitoring Technologies Yes Security & Reliability Intel vPro® Eligibility ‡ Intel vPro® Platform Intel® AES New Instructions Yes Secure Key Yes Intel® Software Guard Extensions (Intel® SGX) Yes with both Intel® SPS and Intel® ME Intel® Memory Protection Extensions (Intel® MPX) Yes Intel® OS GuardYes Intel® Trusted Execution Technology ‡ Yes Execute Disable Bit ‡ Yes Intel® Boot Guard Yes Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® VT-x with Extended Page Tables (EPT) ‡ Yes |
CPU Specifications
| Supported Processors |
1 processor from the following product families: • Intel® Xeon® processor E3-1200 v6 product family • Intel Pentium® • Intel CoreTM i3 • Intel Celeron® |
Memory
| Installed Memory | RAM DDR4 32GB 2400T |
| Memory Type |
Architecture: Up to 2400MT/s DDR4 DIMMs Memory type: UDIMMs Memory module sockets: 4 Maximum RAM: Up to 64GB |
Storage and drives
| Installed Hard Disk | 2 x 600GB |
| Device Type | SAS Hot Plug |
| Storage Option |
• 2.5" SATA 7.2k • 2.5" SATA SSDs • 2.5" nearline SAS 7.2k • 2.5" SAS 10k HDDs • 2.5" SAS 15K HDDs • 3.5" Enterprise SATA 7.2k HDDs • 3.5" nearline SAS 7.2k HDDs Drive bays 8 x 3.5" bays (also supports 2.5" HDD in 3.5" hybrid drive carrier) |
| Storage Controller |
Storage controller specifications PERC S130, PERC H330, PERC H730, PERC H830 |
Graphics
| Installed Graphic Card | Integrated |
| Supported Display Adapter |
Supported Graphics Cards 1X NVIDIA NVS 310 1X NVIDIA Quadro P4000 |
Ports/slots/bays
| Input/output ports |
8 total USB: • Rear: 2 x USB 3.0 + 4 x USB 2.0 • Front: 1 x USB 2.0 + 1 x USB 3.0 |
| Chassis | Chassis max depth: 594.82 mm |
Networking/communication
| Communications |
2 X 1GbE LOM Click here for T330 supported network interface cards (NICs) and host bus adapters (HBAs) and scroll to “Additional Network Cards” section. |
| Connectivity Technology | Broadcom® 5720 |
Security & Reliability
| Software/security |
Systems management: • IPMI 2.0 compliant • Dell OpenManage Essentials • Dell OpenManage Mobile • Dell OpenManage Power Center Remote management: • iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade), 8GB vFlash media (upgrade), 16GB vFlash media (upgrade) Dell OpenManage connections: • HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management, Dell OpenManage Plug-in for Oracle® Database Manager Dell OpenManage integrations: • Dell OpenManage Integration Suite for Microsoft System Center, Dell OpenManage Integration for VMware vCenter |
Environmental specifications
| Temperature |
Temperature Specifications Storage –40°C–65°C (–40°F–149°F) Continuous operation (for altitude less than 950 m or 3117 ft) 10°C–35°C (50°F–95°F) with no direct sunlight on the equipment. Maximum temperature gradient (operating and storage) 20°C/h (68°F/h |
| Humidity |
Relative humidity specifications Relative humidity Specifications Storage 5% to 95% RH with 33°C (91°F) maximum dew point. Atmosphere must be noncondensing always. Operating 10% to 80% relative humidity with 29°C (84.2°F) maximum dew point. |
| Altitude (unpressurized) |
Maximum altitude specifications Maximum altitude Specifications Operating 3048 m (10,000 ft) Storage 12,000 m (39,370 ft) |
Power
| Power Supply |
Supported Power Supply: 1 x 350W cabled PSU or up to 2 x 495W redundant PSUs |
Physical specifications
| dimensions ( H x W x D) |
H: 430.3 mm (17.04 in); with foot 443.3 mm (17.45 in); with wheel 471.3 mm (18.55 in) W: 218 mm (8.58 in); with foot 304.5 mm (11.98 in) D (without bezel): front to rear wall 542.2 mm (21.33 in); front to PSU handle 578.42 mm (22.77 in) D (with bezel): front to rear wall 558.6 mm (21.99 in); front to PSU handle 594.82 mm (23.41 in) |
| Rack dimensions | 5U |
| Weight | 2.5”x 32 42.36 Kg (93.38 lb) 3.5”x 18 49.65 Kg (109.45 lb) |
OPERATING SYSTEM
| Pre Install Os |
OS Provided: Type Non Canonical® Ubuntu® LTS Citrix® XenServer® Microsoft Windows Server® with Hyper-V Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi |
SERVICE & SUPPORT
| Warranty | Limited 03-month warranty |
