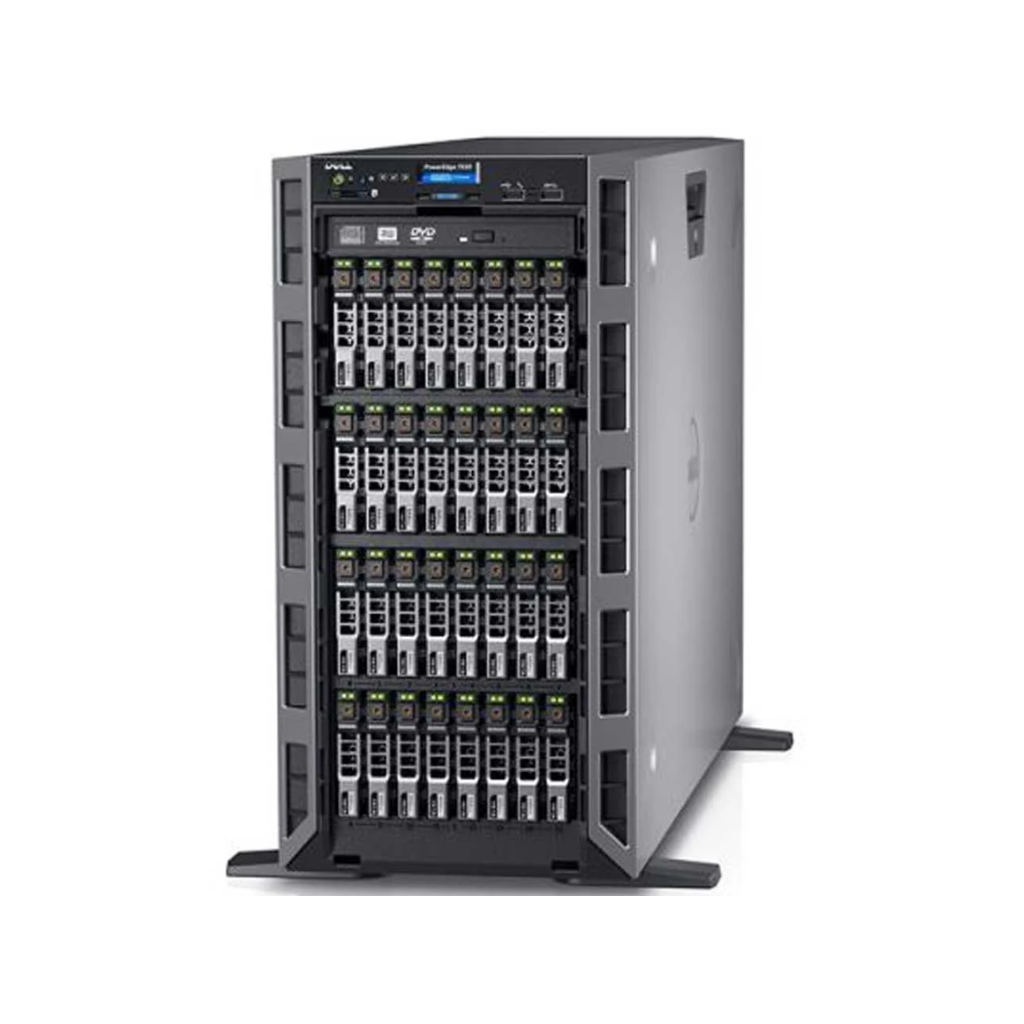

Dell PowerEdge T630 Server
Original price was: AED5,499.AED3,199Current price is: AED3,199.
- Dell PowerEdge T630 Server (Refurbished)
- Dual Intel® Xeon® E5-2680 V4 Processor
- RAM DDR4 64GB 2133MHz
- SAS Hot Plug 2 x 600GB 2.5-inch
- PERC H730 RAID Controller
- Dual Power Supply 750 Watt
- Extended Warranty Available
Estimated delivery:1 - 2 days
Server Stock provides free delivery within the UAE for every order that is above AED 500. If the value of the order is below AED 500, we do collect a nominal delivery charge of AED 30. Server Stock delivers the products within the duration 1 to 2 working days. Deliveries will only be processed during business working days, and please note that public holidays and Friday will be counted as non-working days. The products which are “In Stock” on the website will be shipped on the same day if the order is placed before 3 pm. If we receive the order after 5 pm, we will ship it on the next day based on the product’s availability. Same day express delivery also available for Dubai, Sharjah and Ajman. Express delivery charges will be 150AED. We accept COD (Cash on Delivery) and Bank Transfers for orders placed from within the UAE. Bank Transfer should be done for the orders placed from the locations that are outside of the UAE. Please ensure whether the shipping providers delivers the servers from UAE to your destination before placing the order.
Specification
| Brand | Dell |
| Model | Dell PowerEdge T630 Server |
| Part Number | PowerEdge T630 |
Product Type
| Product type | Rack Server |
Form Factor
| Form Factor | 5U |
Processor
| CPU Information |
Dual Intel® Xeon® Processor E5-2680 v4 (35M Cache- 2.40 GHz) Essentials Product Collection Intel® Xeon® Processor E5 v4 Family Code Name Products formerly Broadwell Vertical Segment Server Processor Number E5-2680V4 Lithography 14 nm Use Conditions Server/Enterprise CPU Specifications Total Cores 14 Total Threads 28 Max Turbo Frequency 3.30 GHz Intel® Turbo Boost Technology 2.0 Frequency‡ 3.30 GHz Processor Base Frequency 2.40 GHz Cache 35 MB Intel® Smart Cache Bus Speed 9.6 GT/s # of QPI Links 2 TDP 120 W Supplemental Information Marketing Status Launched Launch Date Q1'16 Servicing Status End of Servicing Updates End of Servicing Updates Date Thursday | June 30 | 2022 Embedded Options Available Yes Datasheet View now Memory Specifications Max Memory Size (dependent on memory type) 1.5 TB Memory Types DDR4 1600/1866/2133/2400 Max # of Memory Channels 4 Max Memory Bandwidth 76.8 GB/s Physical Address Extensions 46-bit ECC Memory Supported ‡ Yes Expansion Options Scalability 2S PCI Express Revision 3 PCI Express Configurations ‡ x4 | x8 | x16 Max # of PCI Express Lanes 40 Package Specifications Sockets Supported FCLGA2011 Max CPU Configuration 2 TCASE 86°C Package Size 45mm x 52.5mm Advanced Technologies Intel® Turbo Boost Technology ‡ 2 Intel® Hyper-Threading Technology ‡ Yes Intel® Transactional Synchronization Extensions Yes Intel® 64 ‡ Yes Instruction Set 64-bit Instruction Set Extensions Intel® AVX2 Idle States Yes Enhanced Intel SpeedStep® Technology Yes Intel® Demand Based Switching Yes Thermal Monitoring Technologies Yes Intel® Flex Memory Access No Intel® Identity Protection Technology ‡ No Security & Reliability Intel vPro® Eligibility ‡ Intel vPro® Platform Intel® AES New Instructions Yes Secure Key Yes Intel® OS Guard Yes Intel® Trusted Execution Technology ‡ Yes Execute Disable Bit ‡ Yes Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® VT-x with Extended Page Tables (EPT) ‡ Yes |
CPU Specifications
| Supported Processors |
Processor Up to two of the following depending on model Model CPU frequency Cores L3 Cache Power QPI DDR4 Hz E5-2699v3 2.3GHz 18 45MB 145W 9.6GT/s 2133 E5-2698v3 2.3GHz 16 40MB 135W 9.6GT/s 2133 E5-2697v3 2.6GHz 14 35MB 145W 9.6GT/s 2133 E5-2695v3 2.3GHz 14 35MB 120W 9.6GT/s 2133 E5-2690v3 2.6GHz 12 30MB 135W 9.6GT/s 2133 E5-2687Wv3 3.1GHz 10 25MB 160W 9.6GT/s 2133 E5-2683v3 2.0GHz 14 35MB 120W 9.6GT/s 2133 E5-2680v3 2.5GHz 12 30MB 120W 9.6GT/s 2133 E5-2670v3 2.3GHz 12 30MB 120W 9.6GT/s 2133 E5-2667v3 3.2GHz 8 20MB 135W 9.6GT/s 2133 E5-2660v3 2.6GHz 10 25MB 105W 9.6GT/s 2133 E5-2650v3 2.3GHz 10 25MB 105W 9.6GT/s 2133 E5-2650Lv3 1.8GHz 12 30MB 65W 9.6GT/s 2133 E5-2643v3 3.4GHz 6 20MB 135W 9.6GT/s 2133 E5-2640v3 2.6GHz 8 20MB 90W 8.0GT/s 1866 E5-2637v3 3.5GHz 4 15MB 135W 9.6GT/s 2133 E5-2630v3 2.4GHz 8 20MB 85W 8.0GT/s 1866 E5-2630Lv3 1.8GHz 8 20MB 55W 8.0GT/s 1866 E5-2623v3 3.0GHz 4 10MB 105W 8.0GT/s 1866 E5-2620v3 2.4GHz 6 15MB 85W 8.0GT/s 1866 E5-2609v3 1.9GHz 6 15MB 85W 6.4GT/s 1600 E5-2603v3 1.6GHz 6 15MB 85W 6.4GT/s 1600 E5-2699v4 2.2GHz 22 55MB 145W 9.6GT/s 2400 E5-2698v4 2.2GHz 20 50MB 135W 9.6GT/s 2400 E5-2697v4 2.3GHz 18 45MB 145W 9.6GT/s 2400 E5-2697Av4 2.6GHz 16 40MB 145W 9.6GT/s 2400 E5-2695v4 2.1GHz 18 45MB 120W 9.6GT/s 2400 E5-2690v4 2.6GHz 14 35MB 135W 9.6GT/s 2400 E5-2687Wv4 3.0GHz 12 30MB 160W 9.6GT/s 2400 E5-2683v4 2.1GHz 16 40MB 120W 9.6GT/s 2400 E5-2680v4 2.4GHz 14 35MB 120W 9.6GT/s 2400 E5-2667v4 3.2GHz 8 25MB 135W 9.6GT/s 2400 E5-2660v4 2.0GHz 14 35MB 105W 9.6GT/s 2400 E5-2650v4 2.2GHz 12 30MB 105W 9.6GT/s 2400 E5-2650Lv4 1.7GHz 14 35MB 65W 9.6GT/s 2400 E5-2643v4 3.4GHz 6 20MB 135W 9.6GT/s 2400 E5-2640v4 2.4GHz 10 25MB 90W 8.0GT/s 2133 E5-2637v4 3.5GHz 4 15MB 135W 9.6GT/s 2400 E5-2630v4 2.2GHz 10 25MB 85W 8.0GT/s 2133 E5-2630Lv4 1.8GHz 10 25MB 55W 8.0GT/s 2133 E5-2623v4 2.6GHz 4 10MB 85W 8.0GT/s 2133 E5-2620v4 2.1GHz 8 20MB 85W 8.0GT/s 2133 E5-2609v4 1.7GHz 8 20MB 85W 6.4GT/s 1866 E5-2603v4 1.7GHz 6 15MB 85W 6.4GT/s 1866 E5-2699Av4 2.4GHz 22 55MB 145W 9.6GT/s 2400 PROCESSOR Intel® Xeon® E5 2600 v3 processors or Intel® Xeon® E5 2600 v4 processors Both processors must be the same generation and model |
Memory
| Installed Memory | RAM DDR4 64GB 2133 MHz DDR4 SDRAM |
| Memory Type | Up to 1.5TB (24 DIMM slots): 2GB/4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s |
Storage and drives
| Installed Hard Disk | 2 x 600GB |
| Device Type | SAS Hot Plug |
| Storage Option |
Internal hard drive bay and hot-plug backplane: Up to 8 x 3.5" SAS, SATA, nearline SAS, SSD, PCIe SSD drives with optional flex bay Up to 18 x 3.5" SAS, SATA, nearline SAS, SSD drives Up to 16 x 2.5" SAS, SATA, nearline SAS, SSD, PCIe SSD drives with optional flex bay Up to 32 x 2.5" SAS, SATA, nearline SAS, SSD drive Hot-plug hard drive options: 2.5" SAS, SATA, nearline SAS, SSD, Express Flash PCIe SSD 3.5" SAS, SATA, nearline SAS, SSD Self-encrypting drives available |
| Storage Controller |
Internal controllers: PERC S130 (SW RAID), PERC H330, PERC H730, PERC H730P Internal HBA (Non-RAID): HBA330 External HBAs (RAID): PERC H830 |
Graphics
| Supported Display Adapter | Support for up to 4 optional 300W internal GPU processing accelerators; (must be ordered at time of initial purchase). |
Ports/slots/bays
| Input/output ports |
8 PCIe slots: • Slot 1: one x16 PCIe 3.0 for FL/FH card from CPU1 • Slot 2: one x8 PCIe 2.0 for FL/FH card from PCH (x4 lanes) • Slot 3: one x16 PCIe 3.0 for FL/FH card from CPU1 • Slot 4: one x8 PCIe 3.0 for HL/FH card from CPU2 • Slot 5: one x8 PCIe 2.0 for FL/FH card from CPU2 (x4 lanes) • Slot 6: one x16 PCIe 3.0 for FL/FH card from CPU2 • Slot 7: one x16 PCIe 3.0 for FL/FH card from CPU2 • Slot 8 (Internal PERC slot): one x8 PCIe 3.0 for HL/FH card from CPU |
Networking/communication
| Communications |
Can support 4 x 1Gb, 2 x 1Gb + 2 x 10Gb, 4 x 10Gb |
| Ports | Intel dual-port 1GbE LOM |
| Connectivity Technology | Remote management: iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade) |
Security & Reliability
| Software/security |
High-efficiency, hot-plug, redundant power supplies; hot-plug drive bays; dual internal SD module; hot-plug redundant fan; optional bezel; information tag; ECC memory switch independent partitioning, Single Device Data Correction (SDDC), spare rank, tool-less chassis, support for high-availability clustering and virtualization, proactive systems management alerts Systems management Systems management: IPMI 2.0 compliant, Dell OpenManage Essentials, Dell OpenManage Mobile, Dell OpenManage Power Center Remote management: iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade), 8GB vFlash media (upgrade), 16GB vFlash media (upgrade) Dell OpenManage Integrations: • Dell OpenManage Integration Suite for Microsoft® System Center • Dell OpenManage Integration for VMware® vCenter™ Dell OpenManage Connections: • HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management • Dell OpenManage Plug-in for Oracle® Database Manager |
Power
| Power Supply |
Titanium efficiency 750W AC power supply Gold efficiency 1100W DC power supply Platinum efficiency 495W, 750W, 1100W or 1600W AC power supply |
Physical specifications
| dimensions ( H x W x D) |
: 443.5 mm (17.5 in) with feet; 430.5 mm (16.95 in) without feet W: 304.5 mm (11.98 in) with feet opened; 217.9 mm (8.57 in) with feet closed D: 692.8 mm (27.27 in) without bezel; 708.7 mm (27.9 in) with bezel |
| Rack dimensions | U height: 1U Rack width: 19” Mountable depth: 27” |
| Weight | Maximum weight: 41.8 kg (92.15 lb) for 2.5” hard drive chassis 51.0 kg (112.43 lb) for 3.5” hard-drive chassis |
OPERATING SYSTEM
| Pre Install Os |
OS Provided: Type Non Microsoft Windows Server® 2008/2012 R2 Microsoft Windows Server 2008/2012 R2 SP2, x86/x64 Novell® SUSE® Linux Enterprise Server Red Hat® Enterprise Linux® Optional embedded hypervisors: Citrix® XenServer® VMware vSphere® ESXi™ Red Hat Enterprise Virtualization® For more information on the specific versions and additions, visit: Dell.com/OS support |
SERVICE & SUPPORT
| Warranty | Limited 03-month warranty |
Server Stock offers Three- month warranty for all of our Refurbished products that is covering the most parts, with exceptions for burn and physical damage. Server Stock also offers flexible extendable warranty options. for example, Each 3 months extended warranty you need to add 5% extra, it means if you want any product with one year warranty then you need to add 15% extra amount in total price. You can avail free of cost repairs or replacement if needed during the warranty period for the Refurbished products. Actual warranty starts on the day when you purchase the product from us.
