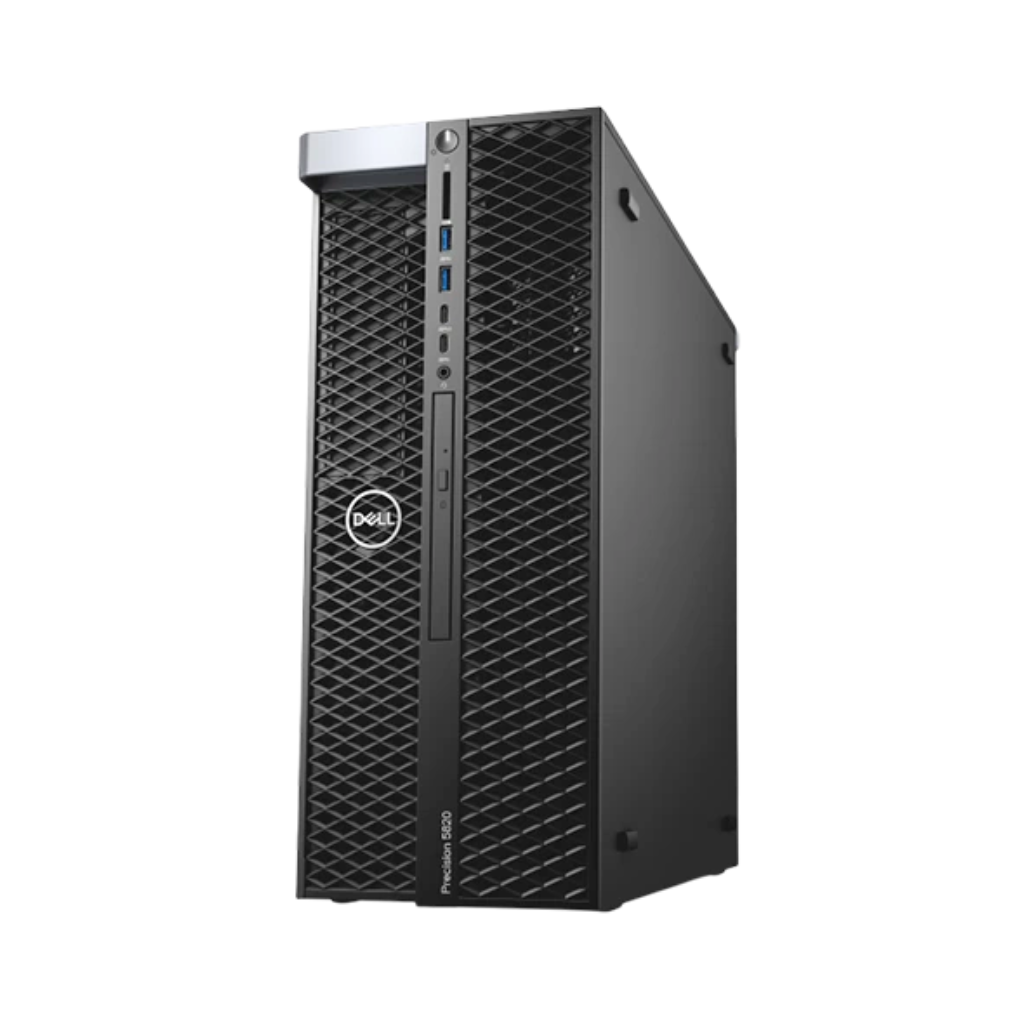

Dell Precision 5820 Tower Workstation
Original price was: AED4,900.AED2,499Current price is: AED2,499.
Brand:
- Dell Precision 5820 Tower Workstation (Refurbished)
- Single Intel Xeon W2123
- 32GB 2133 MHz DDR4
- 2Tb SATA+512GB SSD
- Nvidia Quadro P2000 5GB
- Extended Warranty Available
Estimated delivery:2 days
Specification
| Brand | Dell |
| Model | Dell Precision 5820 Tower Workstation |
| Part Number | Dell Precision 5820 |
Product Type
| Product type | Tower Workstation |
Form Factor
| Form Factor | Micro ATX Tower 5U |
Processor
| CPU Information |
Intel Xeon W-2123 processor 3.6 GHz 8.25 MB cache and 4 cores Up to 3.9 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2666 MT/s data rate 120 W Supports Intel vPro technology CPU Specifications Total Cores 4 Total Threads 8 Max Turbo Frequency 3.90 GHz Processor Base Frequency 3.60 GHz Cache 8.25 MB Max # of UPI Links 0 Bus Speed 8 GT/s # of QPI Links 0 TDP 120 W Supplemental Information Marketing StatusDiscontinued Launch Date Q3'17 Servicing Status ESU Notification Issued End of Servicing Updates Date Sunday, December 31, 2023 Embedded Options Available No DatasheetView now Additional InformationView now Memory Specifications Max Memory Size (dependent on memory type) 512 GB Memory Types DDR4 1600/1866/2133/2400/2666 Max # of Memory Channels 4 Max Memory Bandwidth 85.3 GB/s Physical Address Extensions 46-bit ECC Memory Supported ‡ Yes Expansion Options Scalability1S Only PCI Express Revision 3.0 PCI Express Configurations ‡ x4, x8, x16 Max # of PCI Express Lanes 48 Package Specifications Sockets Supported FCLGA2066 Max CPU Configuration1 TCASE 65 Package Size45mm x 52.5mm Advanced Technologies Intel® Optane™ Memory Supported ‡ No Intel® Speed Shift Technology Yes Intel® Turbo Boost Max Technology 3.0 ‡ No Intel® Turbo Boost Technology ‡ 2.0 Intel® Hyper-Threading Technology ‡ Yes Intel® Transactional Synchronization Extensions Yes Intel® 64 ‡ Yes Instruction Set 64-bit Instruction Set Extensions Intel® SSE4.2, Intel® AVX, Intel® AVX2, Intel® AVX-512 # of AVX-512 FMA Units 2 Idle States Yes Enhanced Intel SpeedStep® Technology Yes Intel® Demand Based Switching Yes Thermal Monitoring Technologies Yes Intel® Flex Memory Access No Intel® Identity Protection Technology ‡ Yes Intel® Volume Management Device (VMD) Yes Security & Reliability Intel vPro® Eligibility ‡ Intel vPro® Platform Intel® AES New Instructions Yes Secure Key Yes Intel® Software Guard Extensions (Intel® SGX) No Intel® Memory Protection Extensions (Intel® MPX) Yes Intel® OS GuardYes Intel® Trusted Execution Technology ‡ Yes Execute Disable Bit ‡ Yes Intel® Boot Guard Yes Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® VT-x with Extended Page Tables (EPT) ‡ Yes |
CPU Specifications
| Supported Processors |
ntel® Xeon® Processor W-2000 Family and Core X Series CPUs with up to 18 cores and Intel Advanced Vector Extensions, Intel Trusted Execution Technology, Intel AES New instructions, Optimized Intel Turbo Boost and optional Intel vPro™ technology (Xeon W CPUs only) (Important Note: Features and Supported Configurations will differ between 5820 Tower Workstations with Intel® Xeon® W Processors and 5820 Tower Workstations with Intel® Core™ X Processors. Please see systems on Dell.com/ Precision for specific configuration details. Intel Xeon processor E-2286G Up to 4.9 GHz with Intel Turbo Boost Technology (4.0 GHz base frequency) 12 MB cache and 6 cores Intel UHD Graphics P630 DDR4 memory up to 2666 MT/s data rate 80 W TDP Intel vPro Technology Intel Xeon processor E-2278G Up to 5.0 GHz with Intel Turbo Boost Technology (3.4 GHz base frequency) 16 MB cache and 8 cores Intel UHD Graphics P630 DDR4 memory up to 2666 MT/s data rate 80 W TDP Intel vPro Technology Intel Xeon processor E-2276G Up to 4.9 GHz with Intel Turbo Boost Technology (3.8 GHz base frequency) 12 MB cache and 6 cores Intel UHD Graphics P630 DDR4 memory up to 2666 MT/s data rate 80 W TDP Intel vPro Technology Intel Xeon processor E-2274G Up to 4.9 GHz with Intel Turbo Boost Technology (4.0 GHz base frequency) 8 MB cache and 4 cores Intel UHD Graphics P630 DDR4 memory up to 2666 MT/s data rate 80 W TDP Intel vPro Technology Intel Xeon processor E-2244G Up to 4.8 GHz with Intel Turbo Boost Technology (3.8 GHz base frequency) 8 MB cache and 4 cores Intel UHD Graphics P630 DDR4 memory up to 2666 MT/s data rate 80 W TDP Intel vPro Technology Intel Xeon processor E-2236 Up to 4.8 GHz with Intel Turbo Boost Technology (3.4 GHz base frequency) 12 MB cache and 6 cores DDR4 memory up to 2666 MT/s data rate 80 W TDP Intel vPro Technology Intel Xeon processor E-2226G Up to 4.7 GHz with Intel Turbo Boost Technology (3.4 GHz base frequency) 12 MB cache and 6 cores Intel UHD Graphics P630 DDR4 memory up to 2666 MT/s data rate 80 W TDP Intel vPro Technology Intel Xeon processor E-2224G Up to 4.6 GHz with Intel Turbo Boost Technology (3.4 GHz base frequency) 8 MB cache and 4 cores Intel UHD Graphics P630 DDR4 memory up to 2666 MT/s data rate 80 W TDP Intel vPro Technology Intel Xeon E-2176G processor Up to 4.7 GHz with Intel Turbo Boost Technology (3.7 GHz base frequency) 12 MB cache and 6 cores Intel UHD Graphics P630 DDR4 memory up to 2666 MT/s data rate 80 W TDP Intel vPro Technology Intel Xeon E-2174G processor Up to 4.7 GHz with Intel Turbo Boost Technology (3.8 GHz base frequency) 8 MB cache and 4 cores Intel UHD Graphics P630 DDR4 memory up to 2666 MT/s data rate 71 W TDP Intel vPro Technology Intel Xeon E-2144G processor Up to 4.5 GHz with Intel Turbo Boost Technology (3.6 GHz base frequency) 8 MB cache and 4 cores Intel UHD Graphics P630 DDR4 memory up to 2666 MT/s data rate 71 W TDP Intel vPro Technology Intel Xeon E-2136 processor Up to 4.5 GHz with Intel Turbo Boost Technology (3.3 GHz base frequency) 12 MB cache and 6 cores DDR4 memory up to 2666 MT/s data rate 80 W TDP Intel vPro Technology Intel Xeon E-2126G processor Up to 4.5 GHz with Intel Turbo Boost Technology (3.3 GHz base frequency) 12 MB cache and 6 cores Intel UHD Graphics P630 DDR4 memory up to 2666 MT/s data rate 80 W TDP Intel vPro Technology Intel Xeon E-2124G processor Up to 4.3 GHz with Intel Turbo Boost Technology (3.4 GHz base frequency) 8 MB cache and 4 cores Intel UHD Graphics P630 DDR4 memory up to 2666 MT/s data rate 71 W TDP Intel vPro Technology Intel Xeon E-2104G processor 3.2 GHz base frequency 8 MB cache and 4 cores Intel UHD Graphics P630 DDR4 memory up to 2666 MT/s data rate 65 W TDP Intel vPro Technology Intel Core i9-9900K processor Up to 5.0 GHz with Intel Turbo Boost Technology (3.6 GHz base frequency) 16 MB cache and 8 cores Intel UHD Graphics 630 DDR4 memory up to 2666 MT/s data rate 95 W TDP 16 GB Intel Optane memory Intel vPro Technology Intel Core i9-9900 processor Up to 5.0 GHz with Intel Turbo Boost Technology (3.1 GHz base frequency) 16 MB cache and 8 cores Intel UHD Graphics 630 DDR4 memory up to 2666 MT/s data rate 95 W TDP 16 GB Intel Optane memory Intel vPro Technology Intel Core i7-9700K processor Up to 4.9 GHz with Intel Turbo Boost Technology (3.6 GHz base frequency) 12 MB cache and 8 cores Intel UHD Graphics 630 DDR4 memory up to 2666 MT/s data rate 95 W TDP 16 GB Intel Optane memory Intel vPro Technology Intel Core i7-9700 processor Up to 4.7 GHz with Intel Turbo Boost Technology (3.0 GHz base frequency) 12 MB cache and 8 cores Intel UHD Graphics 630 DDR4 memory up to 2666 MT/s data rate 95 W TDP 16 GB Intel Optane memory Intel vPro Technology Intel Core i5-9600 processor Up to 4.6 GHz with Intel Turbo Boost Technology (3.1 GHz base frequency) 9 MB cache and 6 cores Intel UHD Graphics 630 DDR4 memory up to 2666 MT/s data rate 95 W TDP 16 GB Intel Optane memory Intel vPro Technology Intel Core i5-9500 processor Up to 4.4 GHz with Intel Turbo Boost Technology (3.0 GHz base frequency) 9 MB cache and 6 cores Intel UHD Graphics 630 DDR4 memory up to 2666 MT/s data rate 95 W TDP 16 GB Intel Optane memory Intel vPro Technology Intel Core i3-9100 processor Up to 4.2 GHz with Intel Turbo Boost Technology (3.6 GHz base frequency) 8 MB cache and 4 cores Intel UHD Graphics 630 DDR4 memory up to 2666 MT/s data rate 95 W TDP Intel vPro Technology Intel Core i7-8700K processor Up to 4.7 GHz with Intel Turbo Boost Technology (3.7 GHz base frequency) 12 MB cache and 6 cores Intel UHD Graphics 630 DDR4 memory up to 2666 MT/s data rate 95 W TDP 16 GB Intel Optane memory Intel vPro Technology Intel Core i7-8700 processor Up to 4.6 GHz with Intel Turbo Boost Technology (3.2 GHz base frequency) 12 MB cache and 6 cores Intel UHD Graphics 630 DDR4 memory up to 2666 MT/s data rate 65 W TDP 16 GB Intel Optane memory Intel vPro Technology Intel Core i5-8600 processor Up to 4.2 GHz with Intel Turbo Boost Technology (3.1 GHz base frequency) 9 MB cache and 6 cores Intel UHD Graphics 630 DDR4 memory up to 2666 MT/s data rate 65 W TDP 16 GB Intel Optane memory Intel vPro Technology Intel Core i5-8500 processor Up to 4.0 GHz with Intel Turbo Boost Technology (3.0 GHz base frequency) 9 MB cache and 6 cores Intel UHD Graphics 630 DDR4 memory up to 2666 MT/s data rate 65 W TDP 16 GB Intel Optane memory Intel vPro Technology Intel Core i3-8100 processor 3.6 GHz Base frequency 6 MB cache and 4 cores Intel UHD Graphics 630 DDR4 memory up to 2400 MT/s data rate 65 W TDP Intel vPro Technology Intel Pentium Gold G5400 processor 3.7 GHz base frequency 4 MB cache and 2 cores Intel UHD Graphics 610 DDR4 memory up to 2400 MT/s data rate 54 W TDP Intel vPro Technology Intel® C422 (Skylake/Cascade Lake W) Intel X299 (Skylake/Cascade Lake X |
Memory
| Installed Memory | RAM DDR4 32GB 2133 MHz DDR4 SDRAM |
| Memory Type |
Supported configurations 8 GB (1 x 8 GB) DDR4-2666 ECC 16 GB (2 x 8 GB) DDR4-2666 ECC 32 GB (4 x 8 GB) DDR4-2666 ECC 32 GB (2 x 16 GB) DDR4-2666 ECC 64 GB (4 x 16 GB) DDR4-2666 ECC 64 GB (2 x 32 GB) DDR4-2666 ECC 128 GB (4 x 32 GB) DDR4-2666 ECC Four channel memory up to 512GB 2666MHz and up to 256GB 2933MHz DDR4 (RDIMM) ECC memory. (Up to 256GB 2666MHz DDR4 (UDIMM) Non-ECC memory) 8 DIMM slots. Note: Memory speed is dependent on specific Intel Xeon or Core X Processor installed. |
Storage and drives
| Installed Hard Disk | 512 SSD + 2TB SATA |
| Device Type | SSD/ SATA |
| Storage Option |
Front accessible FlexBays support up to 4 x 2.5”/3.5” SATA HDD/SSDs and up to 6 x 2.5” and 5 x 3.5” drives with 5.25” bay populated. Up to 2 front accessible (hot plug) M.2/U.2 NVMe PCIe SSDs are supported in FlexBay 1 on enabled PCIe backplane chassis with integrated Intel controller and up to 4 with MegaRAID 9460* NVMe hardware RAID controller option - see controller section Note: Precision PCIe FlexBay backplane and single M.2 Module (incl. 1 M.2 PCIe/NVMe carrier) kits are available for customers to convert standard FlexBays* to support Intel and MegaRAID NVMe controller options. (different kits) Only 1 front accessible M.2 NVMe PCIe SSD is supported, due to reduced PCIe lane support on Core X I9 and I7 Series CPUs NVMe RAID 0,1 option (Intel RSTe vROC).* Up to 4 x M.2 NVMe PCIe SSDs via 1 x Dell Ultra- Speed Drive Quad x16 card. NVMe RAID 0,1,10 option (Intel RSTe vROC). M.2 NVMe PCIe SSDs Up to 4 x 2TB drives on 1 Dell Precision Ultra-Speed Drive Quad x16 card. Front FlexBay M.2/U.2 NVMe PCIe SSDs Up to 4 x 2TB M.2 drives Intel® Optane™905P SSDs Up to 4 x 960GB drives 2.5” SATA SSD Up to 6 x 1.9TB drives 2.5” SATA 7200 RPM Up to 6 x 1TB drives 3.5” SATA 7200 RPM Hard Drives Up to 5 x 12TB Enterprise Drives 2.5” SAS SSD Up to 6 x 800GB drives 3.5” SAS 7200 RPM 12Gb/s Up to 5 x 4TB 2.5” SAS 10K RPM 12Gb/s Up to 6 x 1.8TB 2.5” SAS 15K RPM 12Gb/s Up to 6 x 600GB M.2 PCIe SED SSD 512GB and 1TB Not all storage offerings (including SAS drives) are available with Core X Series CPUs Slimline Bay Options: DVD-ROM; DVD+/-RW, CAC/ PIV card reader. 5.25” Bay Options: BD, DVD+/-RW; Standard: SD slot UHS ll Class 3 with read only suppo |
| Storage Controller |
Integrated: Intel® chipset SATA controller (6Gb/s) with 6 SATA ports plus 2 dedicated ports for optical drives. Intel RSTe software RAID 0,1,5,10* Intel RSTe (vROC) software RAID 0,1,10 option (motherboard activation key) for M.2 NVMe PCIe SSDs on Dell Ultra-Speed Drive Quad card, Duo x8 card (RAID 0,1) and for 2 x front FlexBay M.2/U.2 NVMe PCIe SSDs* (RAID 0,1) or front FlexBay NVMe PCIe SSDs (RAID 0,1) Customer kit available for Intel RSTe (vROC) motherboard activation key for NVMe RAID support. Optional: Broadcom MegaRAID® SAS 9440-8i 12Gb/s SAS (6Gb/s SATA) PCIe controller, 8 ports, Software RAID 0,1,5,10.* MegaRAID® SAS 9460-16i 12Gb/s SAS (6Gb/s SATA) PCIe controller (4GB cache with Flash module/Super Cap backup) Hardware RAID 0,1,5,10.* MegaRAID 9460* controller NVMe option supports up to 4 front FlexBay M.2/U.2 NVMe PCIe SSDs with Hardware RAID 0,1,5,10 |
Graphics
| Installed Graphic Card | Nvidia Quadro P2000 5GB |
| Supported Display Adapter |
Support for 2 PCI Express® x16 Gen 3 graphics card - up to 600W with maximum of up to 2 x 300W double width graphics cards. Not all graphics card offerings are available with Core X I9 and I7 Series CPUs High end 3D cards: Radeon™ Pro WX 9100 Radeon™ Pro SSG NVIDIA Quadro GV100 NVIDIA Quadro P6000 NVIDIA Quadro P5000 Nvidia Quadro RTX 8000 Nvidia Quadro RTX 6000 Nvidia RTX 5000 Mid-range 3D cards: Radeon™ Pro WX 7100 Radeon™ Pro WX 5100 Radeon™ Pro WX 4100 NVIDIA Quadro P4000 NVIDIA Quadro P2000 NVIDIA Quadro P2200 NVIDIA Quadro RTX 4000 Entry 3D cards: Radeon™ Pro WX 3200 Radeon™ Pro WX 2100 NVIDIA Quadro P1000 NVIDIA Quadro P620 NVIDIA Quadro P400 Professional 2D cards: NVIDIA NVS 310 |
Ports/slots/bays
| Expansion Slots |
Optional: Dell Precision Ultra-Speed Drive Duo (HH/HL,x8) & Ultra-Speed drive Quad (FH/FL,x16) with active cooling. Support for up to 2 and 4 M.2 PCIe NVMe SSDs respectively. Optional USB 3.1 (Gen 2) 10Gb/s Type C card (2 ports) 1 DP pass-through port Optional dual & quad display Teradici PCoIP remote workstation host PCIe cards Optional Thunderbolt 3 PCIe Card (2 ports) 1 DP pass-through port Optional Serial Port PCIe Card |
| Input/output ports |
I/O Ports Front 2 – USB 3.1 Gen 1 Type A 2 – USB 3.1 Gen 1 Type C 1 – Universal Headphone Jack Internal 1 – USB 2.0 Type A 1 – 2 x 5 USB 2.0 header. (requires 3rd party splitter cable to support 2 x USB 2.0 Type A ports) 6 – SATA @6Gb/s plus 2 for optical Rear 6 – USB 3.1 Gen 1 Type A (6th port supports Power Delivery) 1 – Serial 1 – RJ45 Network 2 – PS2 1 – Audio Line out 1 – Audio Line in/Microphone |
| Expansion bays |
Bays (2) External 13.3 cm (5.25 in) bays (2) Internal 8.89 cm (3.5 in) bays |
| Chassis |
Chassis HxWxD: 16.45” (417.9 mm) | Width: 6.95” (176.5 mm) | Depth: 20.4” (518.2 mm) | Starting at weight 34lb/15.4kg Bays: (2) FlexBays can support up to 2x 3.25” or 2.5” drives each and (1) 5.25” HDD/SSD drives as factory option or customer kit. (1) Slimline optical bay; (1) SD slot UHS ll Class 3 with read only support (SW enabled) Available PCIe backplane FlexBay chassis supporting 1 - 4 x M.2/U.2 PCIe NVMe SSDs. Slots: All slots PCIe Gen 3: (2) PCIe x16, (1) PCIe x16 wired as x8, (1) PCie x16 wired as x4, (1) PCIe x16 wired as x1, 1 PCI 32/33 |
Audio/multimedia
| Audio | ntegrated Realtek ALC3234 High Definition Audio Codec (2 Channel) |
Networking/communication
| Communications |
with Intel Remote Wake UP, PXE and Jumbo frames support Optional: Intel® i210 10/100/1000 single port PCIe (Gen 3 x1) gigabit network card, Intel® X550-T2 10GbE dual port PCIe (Gen 3 x4) network card |
| Ports | Integrated: Intel® i219 Gigabit Ethernet controllers |
Security & Reliability
| Software/security |
Security Options (Check regional availability) Trusted Platform Module (TPM 2.0); Optional CAC/PIV card reader for slimline bay, chassis Intrusion switch; Setup/BIOS Password; I/O Interface Security; Kensington® lock slot, Padlock ring, lockable power supply; Optional hard drive locking sleds (key lock), Dell Data Guardian, Dell Endpoint Security Suite Enterprise, Lockable front bezel (covers FlexBays), Front FlexBay NVMe drives are removable (hot swap). Manageability3 AMT or vPro with DASH support* Dell vPro Enhancements (Grasslake)* SNMT/CIM vis OMCI Dell Command Suite Regulatory and Environmental Energy Star® configurations available* including 80 PLUS® registered Gold power supplies; EPEAT® registered (see epeat.net for specific registration rating/status by country); China CECP; GS Mark. For a complete listing of declarations & certifications, see Dell’s regulatory & compliance homepage at dell.com/regulatory compliance |
Environmental specifications
| Certifications |
US ENERGY STAR (select models only) Low Halogen NOTE: External power supplies, power cords, cables and peripherals are not low halogen. Service parts obtained after purchase might not be low halogen. US Federal Energy Management Program (FEMP) China Energy Conservation Program The ECO declaration (TED) EPEAT Gold registered where applicable (registration varies by country/region) |
| Temperature |
Operating 5° to 35°C (41° to 95°F) Non-operating -40° to 60°C (40° to 140°F) |
| Humidity |
Operating 10% to 85% (non-condensing, 35° C maximum wet bulb) Non-operating 10% to 90% (non-condensing, 35° C maximum wet bulb) |
| Altitude (unpressurized) |
Operating 3,048 m (10000 ft) Non-operating 9,144 m (30000 ft) |
Power
| Power Supply |
Power Supply: 425W* or 950W (input voltage 100VAC - 240VAC) –90% efficient (80PLUS Gold Certified) Externally accessible/removable/lockable |
Physical specifications
| dimensions ( H x W x D) |
Minitower orientation 356 x 169 x 435 mm (14.0 x 6.7 x 17.1 in) Packaging 599 x 499 x 295 mm (23.5 x 19.6 x 11.6 in) |
| Rack dimensions | 4U |
| Weight | Typical weight 8.2 kg (18.07 lb) Shipping weight 11.4 kg (25.13 lb) |
OPERATING SYSTEM
| Pre Install Os |
OS Provided: Type Windows 11 Windows 10 Pro for Workstations (up to 4 Cores) Windows 10 Pro for Workstations (4 Cores Plus) Windows 10 Pro - for Core X Series CPUs Red Hat Enterprise Linux 8.0 Ubuntu Linux 18.04 Suse Linux (SLES 12 SP2) supported* NeoKylin 6.0 SP5 (China only) |
SERVICE & SUPPORT
| Warranty | Limited 03-month warranty |
