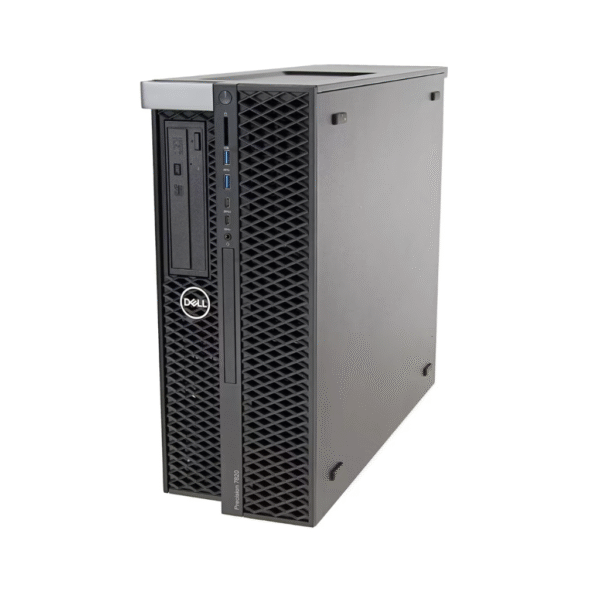

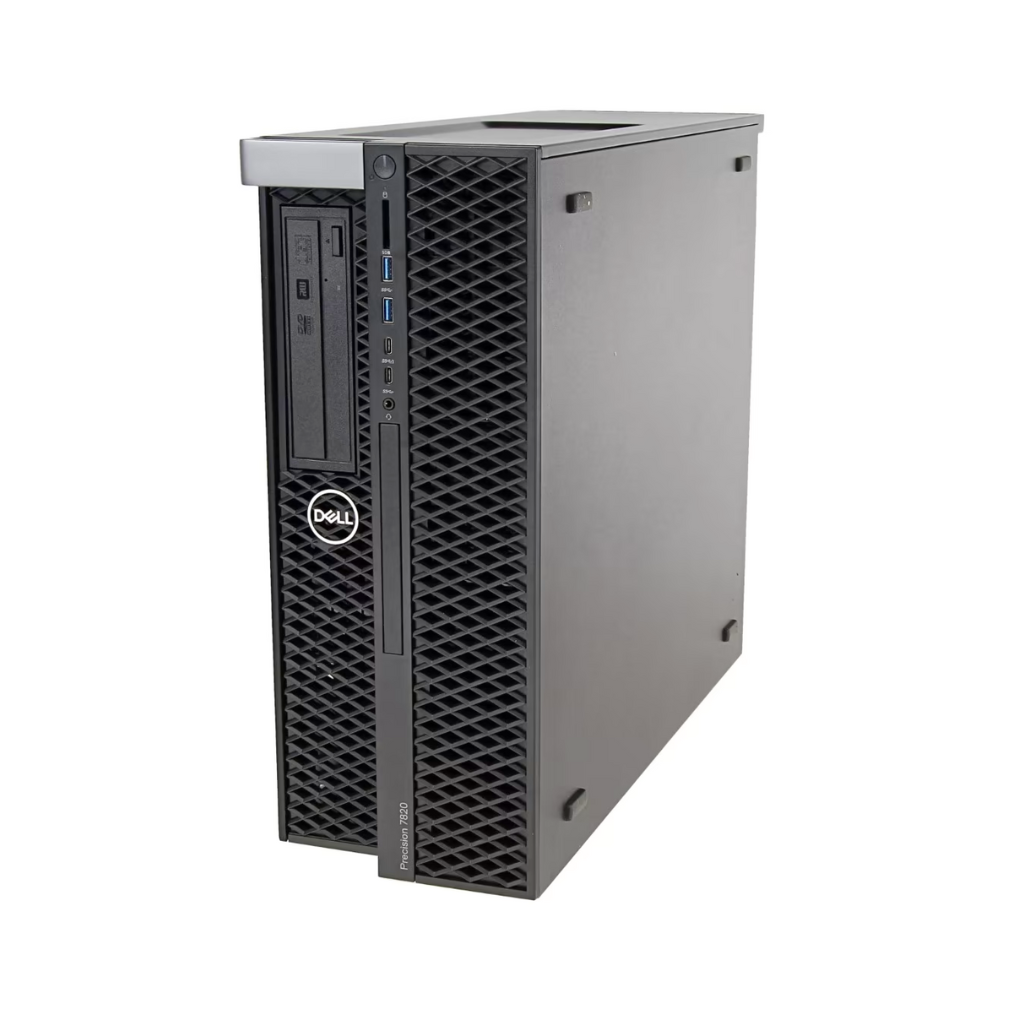

Dell Precision 7820 Tower Workstation
Original price was: AED16,499.AED6,499Current price is: AED6,499.
Brand:
- Dell Precision 7820 Tower Workstation (Refurbished)
- Dual Intel Xeon Gold 6138 Processor
- 64GB 2133 MHz DDR4
- 512GB SSD
- 2TB hard drive SATA
- Nvidia Quadro RTX 4000 8GB
- Extended Warranty Available
Estimated delivery:2 days
Specification
| Brand | Dell |
| Model | Dell Precision 7820 Tower Workstation |
| Part Number | Precision 7820 |
Product Type
| Product type | Tower Workstation |
Form Factor
| Form Factor | Micro ATX Tower 5U |
Processor
| CPU Information |
Intel® Xeon® Gold 6138 Processor (27.5M Cache- 2.00 GHz) Essentials Product Collection Intel® Xeon® Scalable Processors Code Name Products formerly Skylake Vertical Segment Server Processor Number 6138 Lithography 14 nm Use Conditions Server/Enterprise CPU Specifications Total Cores 20 Total Threads 40 Max Turbo Frequency 3.70 GHz Processor Base Frequency 2.00 GHz Cache 27.5 MB L3 Cache Max # of UPI Links 3 TDP 125 W Supplemental Information Marketing Status Launched Launch Date Q3'17 Servicing Status ESU Notification Issued End of Servicing Updates Date Sunday | December 31 | 2023 End of Interactive Support Date Sunday | December 31 | 2023 Embedded Options Available Yes Datasheet View now Product Brief View now Additional Information View now Memory Specifications Max Memory Size (dependent on memory type) 768 GB Memory Types DDR4-2666 Maximum Memory Speed 2666 MHz Max # of Memory Channels 6 ECC Memory Supported ‡ Yes Expansion Options Scalability S4S PCI Express Revision 3 Max # of PCI Express Lanes 48 Package Specifications Sockets Supported FCLGA3647 TCASE 86°C Package Size 76.0mm x 56.5mm Advanced Technologies Intel® Optane™ Memory Supported ‡ No Intel® Speed Shift Technology Yes Intel® Turbo Boost Max Technology 3.0 ‡ No Intel® Turbo Boost Technology ‡ 2 Intel® Hyper-Threading Technology ‡ Yes Intel® Transactional Synchronization Extensions Yes Intel® 64 ‡ Yes Instruction Set Extensions Intel® AVX-512 # of AVX-512 FMA Units 2 Enhanced Intel SpeedStep® Technology Yes Intel® Volume Management Device (VMD) Yes Security & Reliability Intel vPro® Eligibility ‡ Intel vPro® Platform Intel® AES New Instructions Yes Intel® Trusted Execution Technology ‡ Yes Execute Disable Bit ‡ Yes Intel® Run Sure Technology Yes Mode-based Execute Control (MBEC) Yes Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® VT-x with Extended Page Tables (EPT) ‡ Yes |
CPU Specifications
| Supported Processors |
Processor One of the following depending on model Model CPU Intel Xeon Platinum 8180 2.5 GHz 38.50 MB cache and 28 cores Up to 3.8 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2666 MT/s data rate 205 W Supports Intel vPro technology Intel Xeon Platinum 8160 2.1 GHz 33 MB cache and 24 cores Up to 3.7 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2666 MT/s data rate 150 W Supports Intel vPro technology Intel Xeon Gold 6154 3.0 GHz 24.75 MB cache and 18 cores Up to 3.7 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2666 MT/s data rate 200 W Supports Intel vPro technology Intel Xeon Gold 6152 2.1 GHz 30.25 MB cache and 22 cores Up to 3.7 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2666 MT/s data rate 140 W Supports Intel vPro technology Intel Xeon Gold 6148 2.4 GHz 27.50 MB cache and 20 cores Up to 3.7 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2666 MT/s data rate 150 W Supports Intel vPro technology Intel Xeon Gold 6142 2.6 GHz 22 MB cache and 16 cores Up to 3.7 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2666 MT/s data rate 150 W Supports Intel vPro technology Intel Xeon Gold 6140 2.3 GHz 24.75 MB cache and 18 cores Up to 3.7 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2666 MT/s data rate 140 W Supports Intel vPro technology Intel Xeon Gold 6136 3.0 GHz 24.75 MB cache and 12 cores Up to 3.7 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2666 MT/s data rate 150 W Supports Intel vPro technology Intel Xeon Gold 6134 3.2 GHz 24.75 MB cache and 8 cores Up to 3.7 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2666 MT/s data rate 130 W Supports Intel vPro technology Intel Xeon Gold 6132 2.6 GHz 19.25 MB cache and 14 cores Up to 3.7 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2666 MT/s data rate 140 W Supports Intel vPro technology Intel Xeon Gold 6130 2.1 GHz 22 MB cache and 16 cores Up to 3.7 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2666 MT/s data rate 125 W Supports Intel vPro technology Intel Xeon Gold 6128 3.4 GHz 19.25 MB cache and 6 cores Up to 3.7 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2666 MT/s data rate 115 W Supports Intel vPro technology Intel Xeon Gold 5120 2.2 GHz 19.25 MB cache and 14 cores Up to 3.2 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2400 MT/s data rate 105 W Supports Intel vPro technology Intel Xeon Gold 5118 2.3 GHz 16.5 MB cache and 12 cores Up to 3.2 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2400 MT/s data rate 105 W Supports Intel vPro technology Intel Xeon Gold 5122 3.6 GHz 16.5 MB cache and 4 cores Up to 3.7 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2666 MT/s data rate 105 W Supports Intel vPro technology Intel Xeon Silver 4116 2.1 GHz 16.5 MB cache and 12 cores Up to 3.0 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2400 MT/s data rate 85 W Supports Intel vPro technology Intel Xeon Silver 4114 2.2 GHz 13.75 MB cache and 10 cores Up to 3.0 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2400 MT/s data rate 85 W Supports Intel vPro technology Intel Xeon Silver 4112 2.6 GHz 8.25 MB cache and 4 cores Up to 3.0 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2400 MT/s data rate 85 W Supports Intel vPro technology Intel Xeon Silver 4108 1.8 GHz 11 MB cache and 8 cores Up to 3.0 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2400 MT/s data rate 85 W Supports Intel vPro technology Intel Xeon Bronze 3106 1.7 GHz 11 MB cache and 8 cores Supports DDR4 memory up to 2133 MT/s data rate 85 W Supports Intel vPro technology Intel Xeon Bronze 3104 1.7 GHz 8.25 MB cache and 6 cores Supports DDR4 memory up to 2133 MT/s data rate 85 W Supports Intel vPro technology Intel® C621 (Lewisburg) |
Memory
| Installed Memory | RAM DDR4 64GB 2133 MHz DDR4 SDRAM |
| Memory Type |
Six channel memory up to 768GB 2933MHz DDR4 DDR4 ECC memory with dual CPUs, 12 DIMM Slots (6 DIMMs per CPU). Note: Memory speed is dependent on specific Intel Xeon Scalable Processor CPU installed. |
Storage and drives
| Installed Hard Disk | 512 SSD + 2TB SATA |
| Device Type | SSD/ SATA |
| Storage Option |
Front accessible FlexBays support up to 4 x 2.5”/3.5” SATA HDD/SSDs and up to 6 x 2.5” and 5 x 3.5” drives with 5.25” bay populated. Up to 2 front accessible (hot plug) M.2/U.2 NVMe PCIe SSDs are supported in FlexBay 1 on enabled PCIe backplane chassis with integrated Intel controller and up to 4 with MegaRAID 9460 NVMe hardware RAID controller option - see controller section. Note Precision PCIe FlexBay backplane and single M.2 Module (incl. 1 M.2 PCIe NVMe carrier) kits are available for customers to convert standard FlexBays to support Intel and new MegaRAID NVMe controller options. (different kits) NVMe RAID 0,1 option (Intel RSTe vROC). NVMe HW RAID 0,1,5,10 (MegaRAID 9460 NVME controller) Up to 4 x M.2 NVMe PCIe SSDs via 1 x Dell Ultra-Speed Drive Quad x16 card. NVMe RAID 0,1,10 option (Intel RSTe vROC) M.2 NVMe PCIe SSDs Up to 4 x 2TB drives on 1 Dell Precision Ultra- Speed Drive Quad x16 card. U.2 Intel® Optane™905P SSDs Up to 4 x 960GB drives Front FlexBay M.2/U.2 NVMe PCIe SSDs Up to 4 x 2TB M.2 drives 2.5” SATA 7200 RPM. Up to 6 x 1TB drives 2.5” SATA SSD Up to 6 x 1TB drives Up to 6 x 800GB drives 3.5” SATA 7200 RPM Hard Drives 2.5” SAS SSD Up to 5 x 12TB Enterprise Drives 3.5” SAS 7200 RPM 12Gb/s Up to 5 x 4TB 2.5” SAS 10K RPM 12Gb/s Up to 6 x 1.8TB 2.5” SAS 15K RPM 12Gb/s Up to 6 x 600GB M.2 PCIe SED SSD 512GB and 1TB Slimline Bay Options: DVD-ROM; DVD+/-RW, CAC/PIV card reader. 5.25” Bay Options: BD, DVD+/-RW; Standard: SD slot UHS ll Class 3 with read only support |
| Storage Controller |
Integrated: Intel® chipset SATA controller (6Gb/s) with 6 SATA ports plus 2 dedicated ports for optical drives. Intel RSTe software RAID 0,1,5,10 Intel RSTe (vROC) software RAID 0,1,10 option (motherboard activation key) for M.2 NVMe PCIe SSDs on Dell Ultra-Speed Drive Quad card, Duo x8 card (RAID 0,1) and for 2 x front FlexBay M.2/U.2 NVMe PCIe SSDs (RAID 0,1) or front FlexBay NVMe PCIe SSDs (RAID 0,1) Customer kit available for Intel RSTe (vROC) motherboard activation key for NVMe RAID support. Optional: Broadcom MegaRAID® SAS 9440-8i 12Gb/s SAS (6Gb/s SATA) PCIe controller, 8 ports, Software RAID 0,1,5,10. MegaRAID® SAS 9460-16i 12Gb/s SAS (6Gb/s SATA) ) PCIe controller (4GB cache with Flash module/Super Cap backup) Hardware RAID 0,1,5,10. MegaRAID 9460 controller NVMe option supports up to 4 front FlexBay M.2/U.2 NVMe PCIe SSDs with Hardware RAID 0,1,5,10 |
Graphics
| Installed Graphic Card | Nvidia Quadro RTX4000 8GB |
| Supported Display Adapter |
Supported Graphics Cards: Support for 2 PCI Express® x16 Gen 3 graphics cards - up to 600W with maximum of 2 x 300W double width graphics cards on single CPU configurations. Up to 2 x 160W single width graphics cards on dual CPU configurations. High end 3D cards: Radeon™ Pro WX 9100 Radeon™ Pro SSG NVIDIA Quadro GV100 NVIDIA Quadro P6000 NVIDIA Quadro P5000 NVIDIA Quadro RTX 8000 (future) NVIDIA Quadro RTX 6000 NVIDIA Quadro RTX 5000 Mid-range 3D cards: Radeon™ Pro WX 7100 Radeon™ Pro WX 5100 Radeon™ Pro WX 4100 NVIDIA Quadro P4000 NVIDIA Quadro P2000 NVIDIA Quadro RTX 4000 Entry 3D cards: Radeon™ Pro WX 3100 Radeon™ Pro WX 2100 NVIDIA Quadro P1000 NVIDIA Quadro P620 NVIDIA Quadro P400 Professional 2D cards: NVIDIA NVS 310 |
Ports/slots/bays
| Expansion Slots |
Add-in cards Optional: Dell Precision Ultra-Speed Drive Duo (HH/ Optional: Dell Precision Ultra-Speed Drive Duo (HH/HL,x8) & Ultra-Speed drive Quad (FH/FL,x16) with active cooling. Support for up to 2 and 4 M.2 PCIe NVMe SSDs respectively. Optional USB 3.1 (Gen 2) 10Gb/s Type C card (2 ports) 1 DP pass-through port Optional dual & quad display Teradici PCoIP remote workstation host PCIe cards Optional Thunderbolt 3 PCIe Card (2 ports) 1 DP pass-through port Optional Serial Port PCIe Card |
| Input/output ports |
Front 2 – USB 3.1 Gen 1 Type A 2 – USB 3.1 Type C 1 – Universal Audio Jack Internal 1 – USB 2.0 Type A 1 - 2 x 5 USB 2.0 header. (requires 3rd party splitter cable to support 2 x USB 2.0 Type A ports) 6 - SATA @6Gb/s plus 2 for optical Rear 6 – USB 3.1 Gen 1 Type A 1 – Serial 1 – RJ45 Network 2 – PS2 1 –Audio Line out 1– Audio Line in/Microphone |
| Expansion bays |
Bays: (1) external slimline optical bay; (8) front accessible 3.5” bays (support total of (8) 3.5” or 2.5” HDD/SSD drives) Slots: All slots PCIe Gen 3. (6) PCIe full height/full length slots, (1) PCIe full height/half length slot, (1) PCIe low profile/full length slot Up to (3) double width x16 cards supported. All slots x16 mechanically. • With single CPU – (1) x x16, (1) x x8, (1) x x8 half length, (1) x x8 low profile PCIe slots • With dual CPUs (2) x x16, (2) x x8 PCIe slots |
| Chassis |
HxWxD: 16.45” (417.9 mm) | Width: 6.95” (176.5 mm) | Depth: 20.4” (518.2 mm) Starting at Weight: 34lb/15.4kg Bays: (2) FlexBays can support up to 2x 3.5” or 2.5” drives each and (1) 5.25” FlexBay (can support 1 x 3.5” or 2 x 2.5” HDD/SSD drives as factory option or customer kit) (1) Slimline optical bay; (1) SD slot UHS ll Class 3 with read only support (SW enabled) Available PCIe backplane FlexBay chassis supporting 1 - 4 x M.2/U.2 PCIe NVMe SSDs. Slots: All slots PCIe Gen 3: (2) PCIe x16, (1) PCIe x16 wired as x8, (1) PCie x16 wired as x4, (1) PCIe x16 wired as x1, 1 PCI 32/33 Power Supply: 950W (input voltage 100VAC - 240VAC) –90% efficient (80PLUS Gold Certified) Externally accessible/removable/ lockable |
Audio/multimedia
| Audio | Integrated Realtek ALC3234 High Definition Audio Codec (2 Channel) |
Networking/communication
| Communications |
Supported Network Adapters: Integrated: Intel® i219 Gigabit Ethernet controller with Intel Remote Wake UP, PXE and Jumbo frames support Optional: Intel® i210 10/100/1000 single port PCIe (Gen 3 x1) gigabit network card, Intel® X550-T2 10GbE dual port PCIe (Gen 3 x4) network card, Intel Dual Band Wireless AC 8265 (802.11ac) 2x2 + Bluetooth module, |
| Ports | Integrated: Intel® i219 Gigabit Ethernet controller |
Security & Reliability
| Software/security |
Trusted Platform Module (TPM 2.0); Optional CAC/PIV card reader for slimline bay, chassis Intrusion switch; Setup/BIOS Password; I/O Interface Security; Kensington® lock slot, Padlock ring, lockable power supply; Optional hard drive locking sleds (key lock), Dell Data Guardian, Dell Endpoint Security Suite Enterprise Lockable front bezel (covers FlexBays), Front FlexBay NVMe drives are removable (hot swap). |
Environmental specifications
| Certifications |
Energy Star® configurations available including 80 PLUS® registered Gold power supplies; EPEAT® registered (see epeat.net for specific registration rating/status by country); China CECP; GS Mark. For a complete listing of declarations & certifications, see Dell’s regulatory & compliance homepage at dell.com/ regulatory compliance |
| Temperature |
Operating 5° to 35°C (41° to 95°F) Non-operating -40° to 60°C (40° to 140°F) |
| Humidity |
Operating 10% to 85% (non-condensing, 35° C maximum wet bulb) Non-operating 10% to 90% (non-condensing, 35° C maximum wet bulb) |
| Altitude (unpressurized) |
Operating 3,048 m (10000 ft) Non-operating 9,144 m (30000 ft) |
Power
| Power Supply |
Power Supply: One or two redundant hot pluggable 1100W –90% efficient (80PLUS Gold Certified), Available 1600W PSU in non-redundant mode @220V is required for certain configurations |
Physical specifications
| dimensions ( H x W x D) |
HxWxD: 3.41” x 17.0” x 28.37” (29.78” with bezel); 86.8mm x 482mm x 715.5mm (751.3mm with bezel) |
| Rack dimensions | 5U |
| Weight | Minimum 22.4 kg (49.38 lb) Typical 23.7 kg (52.25 lb) Maximum 31.7 kg (69.89 lb) |
OPERATING SYSTEM
| Pre Install Os |
OS Provided: Type Windows 11 Windows 10 Pro for Workstations (up to 4 Cores) Windows 10 Pro for Workstations (4 Cores Plus) Red Hat® Enterprise Linux® 7.5 Red Hat Enterprise Linux 8.0 (Sept. 2019) is required for 2nd Generation Xeon SP (Cascade Lake) CPUs Ubuntu Linux 16.04 Ubuntu Linux 18.04 NeoKylin 6.0 SP3 (China only - select options supported) |
SERVICE & SUPPORT
| Warranty | Limited 03-month warranty |
