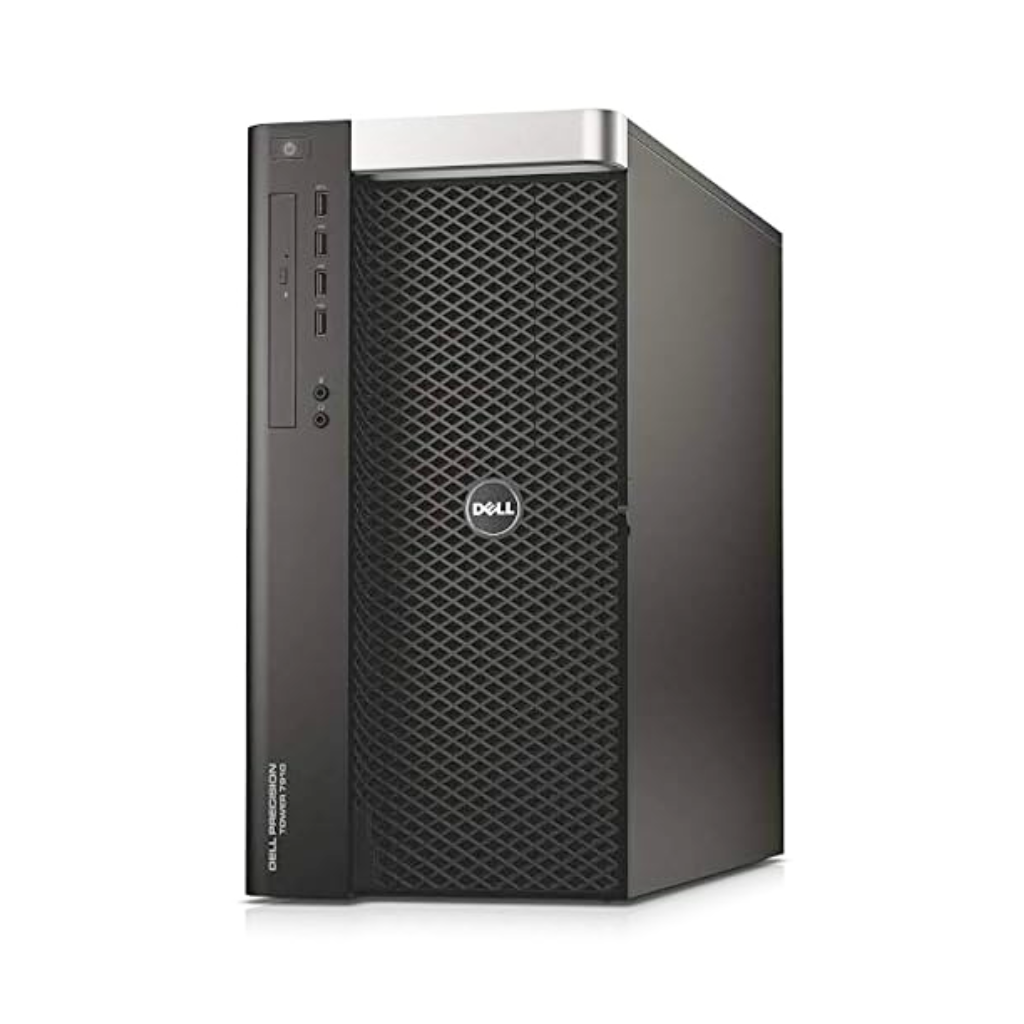

Dell Precision 7910 Tower Workstation
Original price was: AED6,500.AED2,499Current price is: AED2,499.
Brand:
- Dell Precision 7910 Tower Workstation (Refurbished)
- Dual Intel® Xeon® Processor E5-2680 v4
- 64GB 2133 MHz DDR4
- 512GB SSD
- 2TB hard drive SATA
- Nvidia Quadro K2200 4GB
- Extended Warranty Available
Estimated delivery:3 days
Specification
| Brand | Dell |
| Model | Dell Precision 7910 Tower Workstation |
| Part Number | Precision 7910 |
Product Type
| Product type | Tower Workstation |
Form Factor
| Form Factor | Micro ATX Tower 5U |
Processor
| CPU Information |
Dual Intel® Xeon® Processor E5-2680 v4 (35M Cache- 2.40 GHz) Essentials Product Collection Intel® Xeon® Processor E5 v4 Family Code Name Products formerly Broadwell Vertical Segment Server Processor Number E5-2680V4 Lithography 14 nm Use Conditions Server/Enterprise CPU Specifications Total Cores 14 Total Threads 28 Max Turbo Frequency 3.30 GHz Intel® Turbo Boost Technology 2.0 Frequency‡ 3.30 GHz Processor Base Frequency 2.40 GHz Cache 35 MB Intel® Smart Cache Bus Speed 9.6 GT/s # of QPI Links 2 TDP 120 W Supplemental Information Marketing Status Launched Launch Date Q1'16 Servicing Status End of Servicing Updates End of Servicing Updates Date Thursday | June 30 | 2022 Embedded Options Available Yes Datasheet View now Memory Specifications Max Memory Size (dependent on memory type) 1.5 TB Memory Types DDR4 1600/1866/2133/2400 Max # of Memory Channels 4 Max Memory Bandwidth 76.8 GB/s Physical Address Extensions 46-bit ECC Memory Supported ‡ Yes Expansion Options Scalability 2S PCI Express Revision 3 PCI Express Configurations ‡ x4 | x8 | x16 Max # of PCI Express Lanes 40 Package Specifications Sockets Supported FCLGA2011 Max CPU Configuration 2 TCASE 86°C Package Size 45mm x 52.5mm Advanced Technologies Intel® Turbo Boost Technology ‡ 2 Intel® Hyper-Threading Technology ‡ Yes Intel® Transactional Synchronization Extensions Yes Intel® 64 ‡ Yes Instruction Set 64-bit Instruction Set Extensions Intel® AVX2 Idle States Yes Enhanced Intel SpeedStep® Technology Yes Intel® Demand Based Switching Yes Thermal Monitoring Technologies Yes Intel® Flex Memory Access No Intel® Identity Protection Technology ‡ No Security & Reliability Intel vPro® Eligibility ‡ Intel vPro® Platform Intel® AES New Instructions Yes Secure Key Yes Intel® OS Guard Yes Intel® Trusted Execution Technology ‡ Yes Execute Disable Bit ‡ Yes Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® VT-x with Extended Page Tables (EPT) ‡ Yes Memory One or two Intel® Xeon® processor E5-2600 v4 Series with up to 22 cores and Intel Advanced Vector Extensions, Intel Trusted Execution Technology, Intel AES New instructions, Optimized Intel Turbo Boost and optional Intel vPro™ technology |
CPU Specifications
| Supported Processors |
Processor One of the following depending on model Model CPU Intel® Xeon® E5-2699 v4 (2.2 GHz, 55 MB cache, 22 cores, Intel® vPro™) Intel® Xeon® E5-2697 v4 (2.3 GHz, 45 MB cache, 18 cores, Intel® vPro™) Intel® Xeon® E5-2695 v4 (2.1 GHz, 45 MB cache, 18 cores, Intel® vPro™) Intel® Xeon® E5-2690 v4 (2.6 GHz, 35 MB cache, 14 cores, Intel® vPro™) Intel® Xeon® E5-2683 v4 (2.1 GHz, 40 MB cache, 16 cores, Intel® vPro™) Intel® Xeon® E5-2680 v4 (2.4 GHz, 35 MB cache, 14 cores, Intel® vPro™) Intel® Xeon® E5-2667 v4 (3.2 GHz, 25 MB cache, 8 cores, Intel® vPro™) Intel® Xeon® E5-2660 v4 (2 GHz, 35 MB cache, 14 cores, Intel® vPro™) Intel® Xeon® E5-2650 v4 (2.2 GHz, 30 MB cache, 12 cores, Intel® vPro™) Intel® Xeon® E5-2643 v4 (3.4 GHz, 20 MB cache, 6 cores, Intel® vPro™) Intel® Xeon® E5-2640 v4 (2.4 GHz, 25 MB cache, 10 cores, Intel® vPro™) Intel® Xeon® E5-2637 v4 (3.5 GHz, 15 MB cache, 4 cores, Intel® vPro™) Intel® Xeon® E5-2630 v4 (2.2 GHz, 25 MB cache, 10 cores, Intel® vPro™) Intel® Xeon® E5-2623 v4 (2.6 GHz, 10 MB cache, 4 cores, Intel® vPro™) Intel® Xeon® E5-2620 v4 (2.1 GHz, 20 MB cache, 8 cores, Intel® vPro™) Intel® Xeon® E5-2609 v4 (1.7 GHz, 20 MB cache, 8 cores, Intel® vPro™) Intel® Xeon® E5-2603 v4 (1.7 GHz, 15 MB cache, 6 cores, Intel® vPro™) Intel® Xeon® E5-2699 v3 (2.3 GHz, 45 MB cache, 18 cores, Intel® vPro™) Intel® Xeon® E5-2697 v3 (2.6 GHz, 35 MB cache, 14 cores, Intel® vPro™) Intel® Xeon® E5-2695 v3 (2.3 GHz, 35 MB cache, 14 cores, Intel® vPro™) Intel® Xeon® E5-2690 v3 (2.6 GHz, 30 MB cache, 12 cores, Intel® vPro™) Intel® Xeon® E5-2687W v3 (3.1 GHz, 25 MB cache, 10 cores, Intel® vPro™) Intel® Xeon® E5-2683 v3 (2.0 GHz, 35 MB cache, 14 cores, Intel® vPro™) Intel® Xeon® E5-2680 v3 (2.5 GHz, 30 MB cache, 12 cores, Intel® vPro™) Intel® Xeon® E5-2670 v3 (2.3 GHz, 30 MB cache, 12 cores, Intel® vPro™) Intel® Xeon® E5-2667 v3 (3.2 GHz, 20 MB cache, 8 cores, Intel® vPro™) Intel® Xeon® E5-2660 v3 (2.6 GHz, 25 MB cache, 10 cores, Intel® vPro™) Intel® Xeon® E5-2650 v3 (2.3 GHz, 25 MB cache, 10 cores, Intel® vPro™) Intel® Xeon® E5-2643 v3 (3.4 GHz, 20 MB cache, 6 cores, Intel® vPro™) Intel® Xeon® E5-2640 v3 (2.6 GHz, 20 MB cache, 8 cores, Intel® vPro™) Intel® Xeon® E5-2637 v3 (3.5 GHz, 15 MB cache, 4 cores, Intel® vPro™) Intel® Xeon® E5-2630 v3 (2.4 GHz, 20 MB cache, 8 cores, Intel® vPro™) Intel® Xeon® E5-2623 v3 (3.0 GHz, 10 MB cache, 4 cores, Intel® vPro™) Intel® Xeon® E5-2620 v3 (2.4 GHz, 15 MB cache, 6 cores, Intel® vPro™) Intel® Xeon® E5-2609 v3 (1.9 GHz, 15 MB cache, 6 cores, Intel® vPro™) Intel® Xeon® E5-2603 v3 (1.6 GHz, 15 MB cache, 6 cores, Intel® vPro™) CHIPSET Intel® C612 Series |
Memory
| Installed Memory | RAM DDR4 64GB 2133 MHz DDR4 SDRAM |
| Memory Type |
4GB DDR4-2133 ECC Registered RAM 8GB DDR4-2133 ECC Registered RAM 16GB DDR4-2133 ECC Registered RAM 32GB DDR4-2133 ECC Load Reduced (LR) RAM Quad channel memory up to 1TB 2400MHz DDR4 ECC memory with dual CPUs, 16 DIMM Slots (8 DIMMs per CPU). Note: memory speed is dependent on specific Intel Xeon E5-2600 v4 Series processor installed |
Storage and drives
| Installed Hard Disk | 512 SSD + 2TB SATA |
| Device Type | SSD/ SATA |
| Storage Option |
Support for up to (4) M.2 PCIe SSDs and up to (4) 3.5” SATA or (8) 2.5” SATA/SAS drives. Optional PCIe controller required for RAID 5 support. M.2 PCIe SSD (NVMe) Up to (4) 1TB drives on Dell Precision Ultra-Speed Drive Quad. PCIe SSD HH/HL card Up to (2) Intel 1.2TB PCIe SSD NVMe drives 2.5” SATA SSD Up to (8) 1TB drives 2.5” SAS SSD Up to (8) 400GB drives 2.5” SATA 7200 RPM Up to (8) 512GB 7200 RPM 3.5” SATA Up to (4) 4TB 5400 RPM 2.5” SAS 10K RPM 12Gb/s Up to (8) 1.8TB 2.5” SAS 15K RPM 12Gb/s Up to (8) 600GB 2.5” Self Encrypting Drives 512GB 2.5” FIPS SED (OPAL 2.0) SSD |
| Storage Controller |
Integrated: LSI SAS 3008 12Gb/s SAS (6Gb/s SATA) controller supports software RAID 0, 1, 10 with up to 8 hard drives. 2 integrated Intel controller (6Gb/s) SATA ports for optical drives. Optional: LSI MegaRAID® SAS 9341-8i 12Gb/s SAS (6Gb/s SATA) PCIe controller supports software RAID 0,1,5,10. LSI MegaRAID® SAS 9361-8i 12Gb/s SAS (6Gb/s SATA) ) PCIe controller (1GB cache with Flash module/Super Cap backup) supports hardware RAID 0,1,5,10 Storage devices Slimline options: DVD-ROM; DVD+/-RW, Optional 5.25" bay devices: BD, DVD+/-RW; 19-in-1 media reader, 4 x 2.5” HDD/SSD kit |
Graphics
| Installed Graphic Card | Nvidia Quadro K2200 4GB |
| Supported Display Adapter |
ISupport for 4 PCI Express® x16 Gen 2/Gen 3 graphics cards - up to 675W (total 3 x 225W graphics cards in 3 slots High end 3D cards: AMD FirePro W9100 AMD FirePro W8100 NVIDIA Quadro M6000 NVIDIA Quadro K6000 NVIDIA Quadro M5000 Mid-range 3D cards: AMD FirePro W7100 AMD FirePro W5100 NVIDIA Quadro M4000 NVIDIA Quadro M2000 NVIDIA Quadro K2200 Entry 3D cards: AMD FirePro W4100 AMD FirePro W2100 NVIDIA Quadro K620 NVIDIA Quadro K420 Professional 2D cards: NVIDIA NVS 510 NVIDIA NVS 315 NVIDIA NVS 310 |
Ports/slots/bays
| Expansion Slots |
Add-in cards Optional: Dell Precision Ultra-Speed Drive Duo (HH/HL,x8) & Ultra-Speed drive Quad (FH/FL,x16) with active cooling. Support for up to 2 and 4 M.2 PCIe NVMe SSDs respectively. Optional 1394 a/b PCIe Card (3 Ports – 2x 1394b + 1x 1394a) Optional dual & quad display Teradici PCoIP remote workstation host PCIe cards Optional Thunderbolt 2 PCIe Card Optional Serial Port PCIe Card |
| Input/output ports |
Front 3 – USB 2.0 1 – USB 3.0 1 – Microphone 1 – Headphone Internal 1 – USB 2.0 1 2x5 USB 2.0 header. (requires 3rd party splitter cable to support 2 x USB 2.0 Type A ports) 8 – SAS @ 12Gb/s (supports SATA @6Gb/s as well) Rear 3 – USB 2.0 1 –Audio Line out 3 – USB 3.0 1– Audio Line in/Microphone 1 – Serial 2 – RJ45 Network 2 – PS2 |
| Expansion bays |
(4) Internal 8.89 cm (3.5 in) bays (2) External 13.33 cm (5.25 in) bays (1) 9.5 mm (0.37 in) slim optical disk drive bay |
| Chassis |
HxWxD: 16.95 x 8.50 x 20.67"; 43.05cm x 21.59cm x 52.50cm Bays: (1) external slimline optical bay; (4) internal 3.5” bays (support total of (4) 3.5” or 2.5” drives); (1) external 5.25” bay (up to 4 2.5” drives) Slots: (2) PCIe x16 Gen 3 [(2) more with 2nd CPU]; (1) PCIe x16 Gen 3 [wired as x4 – Slot 1], (1) PCIe x16 Gen 2 [wired as x4]; (1) PCI 32Bit |
Audio/multimedia
| Audio | Integrated Realtek ALC3220 High Definition Audio Codec (2 Channel) |
Networking/communication
| Communications |
Integrated: ® Intel I217 & I210 Gigabit Ethernet controllers with Intel Remote Wake UP, PXE and Jumbo frames support Optional: Intel® i210 10/100/1000 single port PCIe (x1) Gigabit network card, Intel® X540-T2 10GbE dual port PCIe (x8) network card, |
| Ports | Intel® i210 10/100/1000 single port |
Security & Reliability
| Software/security |
Trusted Platform Module (TPM 2.0 with Win 10, TPM 1.2 with Win 7/8.1); Chassis Intrusion switch; Setup/BIOS Password; I/O Interface Security; Kensington® lock slot, Padlock ring, lockable power supply; Dell Data Protection (DDP): DDP | Security Tools for authentication; DDP | Protected Workspace for malware; DDP | Encryption for data protection |
Environmental specifications
| Certifications |
Energy Star® configurations available including 80 PLUS® registered Gold power supplies; EPEAT® registered (see epeat.net for specific registration rating/status by country); China CECP; GS Mark. For a complete listing of declarations & certifications, see Dell’s regulatory & compliance homepage at dell.com/regulatory compliance |
| Temperature |
Operating: 5°C to 35°C (40°F to 95°F) Non-operating: -40°C to 60°C (-40°F to 140°F) |
| Humidity |
Operating: 8% to 85% RH, non-condensing Non-operating: 8% to 90% RH, non-condensing |
| Altitude (unpressurized) |
Operating: 3,000 m (10,000 ft) Non-operating: 9,100 m (30,000 ft) |
Power
| Power Supply |
Power Supply: 1300W (input voltage 181VAC-240AC) –90% efficient (80PLUS Gold Certified) Externally accessible/removable |
Physical specifications
| dimensions ( H x W x D) | 44.4 x 20.3 x 52.5 cm (17.5 x 8.0 x 20.7 in) |
| Rack dimensions | 4U |
| Weight | Actual weight depends upon configuration Minimum configuration: 21.1kg (46.7lbs.) Typical configuration: 22.8kg (50.4lbs.) Maximum configuration: 29.2kg (64.3lbs.) |
OPERATING SYSTEM
| Pre Install Os |
OS Provided: Type Windows 10 Supported Operating Systems: Windows® 10 Professional (64 bit) Windows® 8.1 Professional (64-Bit) Windows® 7 Professional (64-Bit) Red Hat® Enterprise Linux® 7.0 and 7.2 (required for Xeon E5-2600 v4 CPUs), RHEL 6.5 supported –RHEL 6.8 for E5-2600 v4 ) Ubuntu 14.04 NeoKylin 6.0 (China only |
SERVICE & SUPPORT
| Warranty | Limited 03-month warranty |
