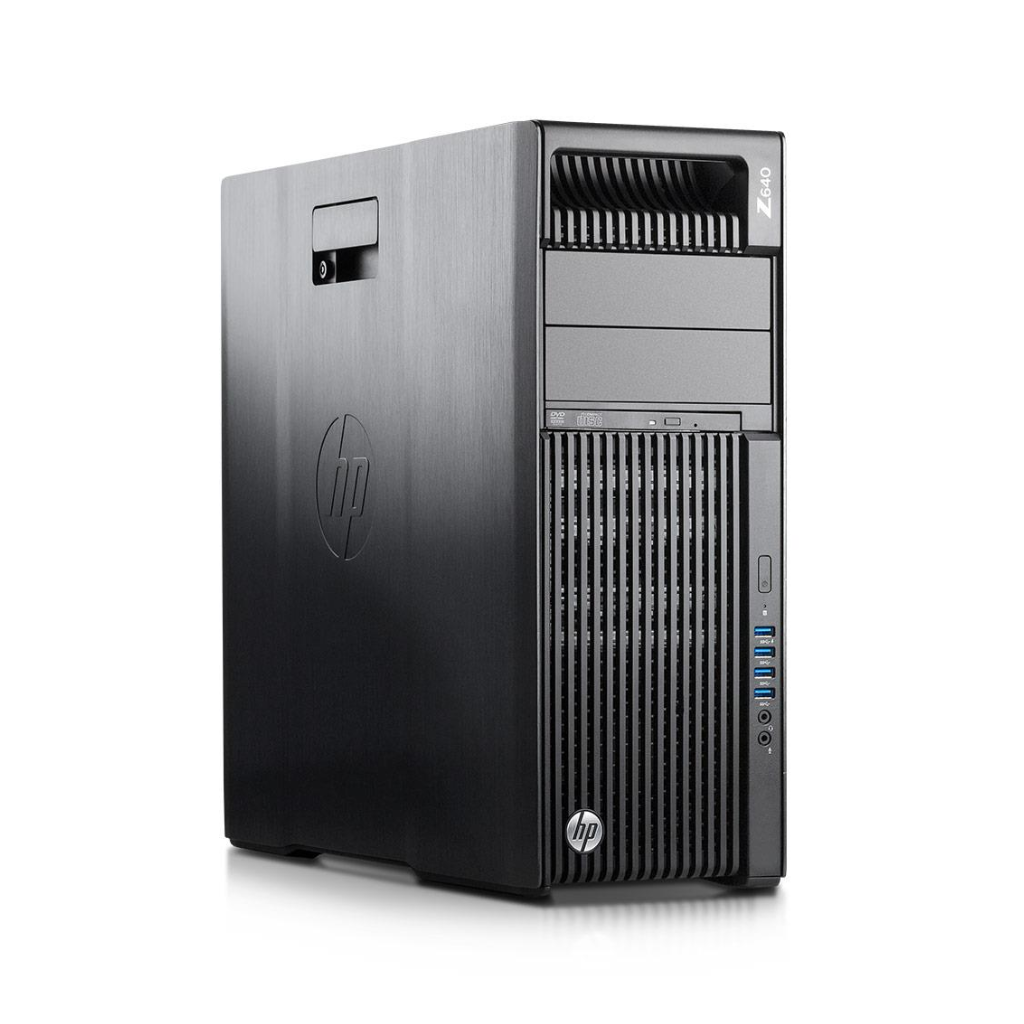

HP Z640 Workstation
Original price was: AED5,200.AED2,999Current price is: AED2,999.
- HP Z640 Workstation (Refurbished)
- Dual Intel® Xeon® Processor E5-2680 v4
- 64GB 2133 MHz DDR4
- 512GB SSD
- 2TB hard drive SATA
- Nvidia Quadro K2200 4GB
- Extended Warranty Available
Estimated delivery:1 - 2 days
Server Stock provides free delivery within the UAE for every order that is above AED 500. If the value of the order is below AED 500, we do collect a nominal delivery charge of AED 30. Server Stock delivers the products within the duration 1 to 2 working days. Deliveries will only be processed during business working days, and please note that public holidays and Friday will be counted as non-working days. The products which are “In Stock” on the website will be shipped on the same day if the order is placed before 3 pm. If we receive the order after 5 pm, we will ship it on the next day based on the product’s availability. Same day express delivery also available for Dubai, Sharjah and Ajman. Express delivery charges will be 150AED. We accept COD (Cash on Delivery) and Bank Transfers for orders placed from within the UAE. Bank Transfer should be done for the orders placed from the locations that are outside of the UAE. Please ensure whether the shipping providers delivers the servers from UAE to your destination before placing the order.
Product Type
| Product type | Tower Workstation |
Form Factor
| Form Factor | Micro ATX Tower 4U |
Processor
| CPU Information |
Dual Intel® Xeon® Processor E5-2680 v4 (35M Cache- 2.40 GHz) Essentials Product Collection Intel® Xeon® Processor E5 v4 Family Code Name Products formerly Broadwell Vertical Segment Server Processor Number E5-2680V4 Lithography 14 nm Use Conditions Server/Enterprise CPU Specifications Total Cores 14 Total Threads 28 Max Turbo Frequency 3.30 GHz Intel® Turbo Boost Technology 2.0 Frequency‡ 3.30 GHz Processor Base Frequency 2.40 GHz Cache 35 MB Intel® Smart Cache Bus Speed 9.6 GT/s # of QPI Links 2 TDP 120 W Supplemental Information Marketing Status Launched Launch Date Q1'16 Servicing Status End of Servicing Updates End of Servicing Updates Date Thursday | June 30 | 2022 Embedded Options Available Yes Datasheet View now Memory Specifications Max Memory Size (dependent on memory type) 1.5 TB Memory Types DDR4 1600/1866/2133/2400 Max # of Memory Channels 4 Max Memory Bandwidth 76.8 GB/s Physical Address Extensions 46-bit ECC Memory Supported ‡ Yes Expansion Options Scalability 2S PCI Express Revision 3 PCI Express Configurations ‡ x4 | x8 | x16 Max # of PCI Express Lanes 40 Package Specifications Sockets Supported FCLGA2011 Max CPU Configuration 2 TCASE 86°C Package Size 45mm x 52.5mm Advanced Technologies Intel® Turbo Boost Technology ‡ 2 Intel® Hyper-Threading Technology ‡ Yes Intel® Transactional Synchronization Extensions Yes Intel® 64 ‡ Yes Instruction Set 64-bit Instruction Set Extensions Intel® AVX2 Idle States Yes Enhanced Intel SpeedStep® Technology Yes Intel® Demand Based Switching Yes Thermal Monitoring Technologies Yes Intel® Flex Memory Access No Intel® Identity Protection Technology ‡ No Security & Reliability Intel vPro® Eligibility ‡ Intel vPro® Platform Intel® AES New Instructions Yes Secure Key Yes Intel® OS Guard Yes Intel® Trusted Execution Technology ‡ Yes Execute Disable Bit ‡ Yes Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® VT-x with Extended Page Tables (EPT) ‡ Yes Memory |
CPU Specifications
| Supported Processors |
Processor One of the following depending on model Model CPU Intel® Xeon® E5-2699 v4 (2.2 GHz, 55 MB cache, 22 cores, Intel® vPro™) Intel® Xeon® E5-2697 v4 (2.3 GHz, 45 MB cache, 18 cores, Intel® vPro™) Intel® Xeon® E5-2695 v4 (2.1 GHz, 45 MB cache, 18 cores, Intel® vPro™) Intel® Xeon® E5-2690 v4 (2.6 GHz, 35 MB cache, 14 cores, Intel® vPro™) Intel® Xeon® E5-2683 v4 (2.1 GHz, 40 MB cache, 16 cores, Intel® vPro™) Intel® Xeon® E5-2680 v4 (2.4 GHz, 35 MB cache, 14 cores, Intel® vPro™) Intel® Xeon® E5-2667 v4 (3.2 GHz, 25 MB cache, 8 cores, Intel® vPro™) Intel® Xeon® E5-2660 v4 (2 GHz, 35 MB cache, 14 cores, Intel® vPro™) Intel® Xeon® E5-2650 v4 (2.2 GHz, 30 MB cache, 12 cores, Intel® vPro™) Intel® Xeon® E5-2643 v4 (3.4 GHz, 20 MB cache, 6 cores, Intel® vPro™) Intel® Xeon® E5-2640 v4 (2.4 GHz, 25 MB cache, 10 cores, Intel® vPro™) Intel® Xeon® E5-2637 v4 (3.5 GHz, 15 MB cache, 4 cores, Intel® vPro™) Intel® Xeon® E5-2630 v4 (2.2 GHz, 25 MB cache, 10 cores, Intel® vPro™) Intel® Xeon® E5-2623 v4 (2.6 GHz, 10 MB cache, 4 cores, Intel® vPro™) Intel® Xeon® E5-2620 v4 (2.1 GHz, 20 MB cache, 8 cores, Intel® vPro™) Intel® Xeon® E5-2609 v4 (1.7 GHz, 20 MB cache, 8 cores, Intel® vPro™) Intel® Xeon® E5-2603 v4 (1.7 GHz, 15 MB cache, 6 cores, Intel® vPro™) Intel® Xeon® E5-2699 v3 (2.3 GHz, 45 MB cache, 18 cores, Intel® vPro™) Intel® Xeon® E5-2697 v3 (2.6 GHz, 35 MB cache, 14 cores, Intel® vPro™) Intel® Xeon® E5-2695 v3 (2.3 GHz, 35 MB cache, 14 cores, Intel® vPro™) Intel® Xeon® E5-2690 v3 (2.6 GHz, 30 MB cache, 12 cores, Intel® vPro™) Intel® Xeon® E5-2687W v3 (3.1 GHz, 25 MB cache, 10 cores, Intel® vPro™) Intel® Xeon® E5-2683 v3 (2.0 GHz, 35 MB cache, 14 cores, Intel® vPro™) Intel® Xeon® E5-2680 v3 (2.5 GHz, 30 MB cache, 12 cores, Intel® vPro™) Intel® Xeon® E5-2670 v3 (2.3 GHz, 30 MB cache, 12 cores, Intel® vPro™) Intel® Xeon® E5-2667 v3 (3.2 GHz, 20 MB cache, 8 cores, Intel® vPro™) Intel® Xeon® E5-2660 v3 (2.6 GHz, 25 MB cache, 10 cores, Intel® vPro™) Intel® Xeon® E5-2650 v3 (2.3 GHz, 25 MB cache, 10 cores, Intel® vPro™) Intel® Xeon® E5-2643 v3 (3.4 GHz, 20 MB cache, 6 cores, Intel® vPro™) Intel® Xeon® E5-2640 v3 (2.6 GHz, 20 MB cache, 8 cores, Intel® vPro™) Intel® Xeon® E5-2637 v3 (3.5 GHz, 15 MB cache, 4 cores, Intel® vPro™) Intel® Xeon® E5-2630 v3 (2.4 GHz, 20 MB cache, 8 cores, Intel® vPro™) Intel® Xeon® E5-2623 v3 (3.0 GHz, 10 MB cache, 4 cores, Intel® vPro™) Intel® Xeon® E5-2620 v3 (2.4 GHz, 15 MB cache, 6 cores, Intel® vPro™) Intel® Xeon® E5-2609 v3 (1.9 GHz, 15 MB cache, 6 cores, Intel® vPro™) Intel® Xeon® E5-2603 v3 (1.6 GHz, 15 MB cache, 6 cores, Intel® vPro™) CHIPSET Intel® C612 Series |
Memory
| Installed Memory | RAM DDR4 64GB 2133 MHz DDR4 SDRAM |
| Memory Type |
4GB DDR4-2133 ECC Registered RAM 8GB DDR4-2133 ECC Registered RAM 16GB DDR4-2133 ECC Registered RAM 32GB DDR4-2133 ECC Load Reduced (LR) RAM NOTE: For details on the supported memory configurations on the HP Z640 Workstation, please refer to the System Technical Specifications - System Board section of this document. Each processor supports up to 4 channels of DDR4 memory. To realize full performance at least 1 DIMM must be inserted into each channel. With single-processor configurations, 4 DIMM slots are available. 4 additional DIMM slots are available with the 2nd CPU & Memory Module. The CPUs determine the speed at which the memory is clocked. If an 1866MHz capable CPU is used in the system, the maximum speed the memory will run at is 1866MHz, regardless of the specified speed of the memory. ONLY registered and load reduced DDR4 DIMMs are supported. DDR3 DIMMs ARE NOT SUPPORTED. NOTE: Identical memory components are used to build the CTO configurations as are available as After Market Options (AMO). The AMO Option Kit Part # are shown alongside the memory DIMMs. For details on the supported memory configurations on the HP Z840 Workstation, please refer to the System Technical Specifications - System Board section of this document. DIMMs should be equally distributed across all four memory channels for optimal performance. Each processor supports up to 4 channels of DDR4 memory. To realize full performance at least 1 DIMM must be inserted into each channel. The CPUs determine the speed at which the memory is clocked. For example, if a 1600MHz capable CPU is used in the system, the maximum speed the memory will run at is 1600MHz regardless of the specified speed of the memory. You cannot intermix LR DIMMs with Registered DIMMs. The system will not work. Maximum memory capacities assume Windows 64-bit operating systems or Linux. With Windows 32-bit operating systems, memory above 3 GB may not all be available due to system resources. |
| Max Memory Size (dependent on memory type) | Maximum Supports up to 256 GB using Registered DIMMs |
Memory Specifications
| Max Memory Size (dependent on memory type) | Maximum Supports up to 256 GB using Registered DIMMs |
Storage and drives
| Installed Hard Disk | 512 SSD + 2TB SATA |
| Device Type | SSD/ SATA |
| Storage Option |
Capacity 600GB Height 2.54 cm (1 in) Media Diameter 8.9 cm (3.5 in) Physical Size 10.17 cm (4 in) Rotational speed 15,000 rpm Interface SAS Buffer 16 MB Seek time (typical reads, includes controller overhead, including settling) Single Track 0.2 ms Average 3.4 ms Full Stroke 6.6 ms Logical Blocks 1,172,123,568 - 512 byte blocks Operating temperature 10° to 35° C (50° to 95° F) 300GB SAS 15K rpm 6Gb/s 3.5" HDD Specification Description Capacity 300GB Height 2.54 cm (1 in) Width Media Diameter 8.9 cm (3.5 in) Physical Size 10.17 cm (4 in) Interface SAS Synchronous Transfer Rate (Maximum) 6Gb/s Buffer 16MB Seek Time (typical reads, includes controller overhead, including settling) Single Track 0.2 ms (max) Average 3.4 ms Full Stroke 6.6 ms Rotational Speed 15,000 rpm Logical Blocks 585,937,500 Operating temperature 10° to 35° C (50° to 95° F) 300GB SAS 10K rpm 6Gb/s 3.5" HDD Specification Description Capacity 300GB Height 1.53 cm (0.6 in) Width Media Diameter 6.36 cm (2.5 in) Physical Size 6.99 cm (2.75 in) Interface SAS Synchronous Transfer Rate (Maximum) Up to 600 MB/s Buffer 64MB Cache multi-segmentable cache buffer Seek Time (typical reads, includes controller overhead, including settling) Single Track 0.4 ms (max) Average 3.6 ms Full Stroke 7.3 ms Rotational Speed 10,000 rpm Logical Blocks 585,937,500 Operating temperature 585,937,500 HP 600GB SAS 10K SFF HDD Specification Description Capacity 600GB Height 1.53 cm (0.6 in) Width Media Diameter: 6.36 cm (2.5 in) Physical Size: 6.99 cm (2.75 in) Interface SAS 6Gb/s Synchronous Transfer Rate (Maximum) Up to 600MB/s Buffer 64MB Cache multi-segmentable cache buffer Seek Time (typical reads, includes controller overhead, including settling) Single Track: 0.4 ms (max) Average: 3.6 ms Full Stroke: 7.3 ms Rotational Speed 10,000 rpm Logical Blocks 1,172,123,568 Operating temperature 5° to 55° C (41° to 131° F) HP 1.2TB SAS 10K SFF HDD Specification Description Capacity 1.2TB Height 1.53 cm (0.6 in) Drive Type Media Diameter: 6.36 cm (2.5 in) Physical Size: 6.99 cm (2.75 in) Interface SAS 6Gb/s Buffer 64MB Cache multi-segmentable cache buffer Number of Sectors 976,773,168 Seek Time (typical reads, includes controller overhead, including settling) Single Track: 0.18ms (max) Average: 3.5ms Full Stroke: 7.17ms Rotational Speed 10,000 rpm Logical Blocks 2,344,225,968 Operating Temperature 5° to 55° C (41° to 131° F) 500GB SATA 7200 rpm 6Gb/s 3.5" HDD Specification Description Capacity 500GB Height 2.54 cm (1 in) Width Media Diameter: 8.9 cm (3.5 in) Physical Size: 10.17 cm (4 in) Interface Serial ATA (6.0Gb/s), NCQ enabled Synchronous Transfer Rate (Maximum) Up to 600MB/s Buffer 16MB Seek Time (typical reads, includes controller overhead, including settling) Single Track: 2 ms Average: 11 ms Full Stroke: 21 ms Rotational Speed 7,200 rpm Logical Blocks 976,773,168 Operating Temperature 5° to 55° C (41° to 131° F) 1TB SATA 7200 rpm 6Gb/s 3.5" HDD Specification Description Capacity 1 Terabyte (1000 GB) Height 2.54 cm (1 in) Width Media Diameter: 8.9 cm (3.5 in) Physical Size: 10.17 cm (4 in) Interface Serial ATA (6.0Gb/s), NCQ enabled Synchronous Transfer Rate (Maximum) Up to 600 MB/s Interface Serial ATA (6.0Gb/s), NCQ enabled Buffer 64MB Seek Time (typical reads, includes controller overhead, including settling) Single Track: 2 ms Average: 11 ms Full Stroke: 21 ms Rotational Speed 7,200 rpm Logical Blocks 1,953,525,168 Operating Temperature 5° to 55° C (41° to 131° F) 2.0TB SATA 7200 rpm 6Gb/s 3.5" HDD Specification Description Capacity 2 TB Height 2.54 cm (1 in) Width Media Diameter: 3.5 in; 8.9 cm Physical Size: 4 in; 10.17 cm Interface Serial ATA (6.0 Gb/s), NCQ Enabled Synchronous Transfer Rate (Maximum) Up to 600MB/s Buffer 64MB Seek Time (typical reads, includes controller overhead, including settling) Single Track: 1.0 ms Average: 11 ms Full Stroke: 18 ms Rotational Speed 7,200 rpm Logical Blocks 3,907,029,168 Operating Temperature 5° to 55° C (41° to 131° F) 3.0TB SATA 7200 rpm 6Gb/s 3.5" HDD Specification Description Capacity 3.0 TB Height 2.54 cm (1 in) Width Media Diameter: 8.9 cm (3.5 in) Physical Size: 10.17 cm (4.0 in) Interface Serial ATA (6.0Gb/s), NCQ enabled Synchronous Transfer Rate (Maximum) Up to 6.0 Gb/s Buffer 64MB Seek Time (typical reads, includes controller overhead, including settling) Single Track: 16 ms Average: 11 ms Full Stroke: Not specified Rotational Speed 7200 rpm Operating Temperature 5° to 60° C (41° to 140° F) 500GB SATA 7.2K SED SFF HDD Specification Description Capacity 500 GB Height 0.7 cm (0.275 in) Width Media Diameter: 6.36 cm (2.5 in) Physical Size: 6.99 cm (2.75 in) Interface Serial ATA (6Gb/s) Synchronous Transfer Rate (Maximum) Up to 600 MB/s Buffer 32 MB Seek Time (typical reads, includes controller overhead, including settling) Single Track: 1 ms Average: 42 ms Full Stroke: 25 ms (typical) Rotational Speed 7200 rpm Operating Temperature 0° to 60° C (32° to 140° F) HP 128GB SATA 6Gb/s SSD Specification Description Capacity 128GB Height 0.7 cm (0.28 in) Width Physical Size: 6.36 cm (2.5 in) Interface SATA 6Gb/s Synchronous Transfer Rate (Maximum) Up to 500MB/s (Sequential Read) Operating Temperature 0° to 70° C (32° to 158° F) HP 256GB SATA 6Gb/s SSD Specification Description Capacity 256GB Height 0.7 cm (0.28 in) Interface 6Gb/s SATA Synchronous Transfer Rate (Maximum) Up to 500MB/s (Sequential Read) Operating Temperature 0° to 70° C (32° to 158° F) HP 512GB SATA 6Gb/s SSD Specification Description Capacity 512GB Height 0.7 cm (0.28 in) Width Physical Size: 6.36 cm (2.5 in) Interface SATA 6Gb/s Synchronous Transfer Rate (Maximum) Up to 500MB/s (Sequential Read) Operating Temperature 0° to 70° C (32° to 158° F) HP 1TB SATA 6Gb/s SSD Specification Description Capacity 1TB Height 0.7 cm (0.28 in) Width Physical Size: 6.36 cm (2.5 in) Interface SATA 6Gb/s Synchronous Transfer Rate (Maximum) Up to 550MB/s (Sequential Read) Operating Temperature 0° to 70° C (32° to 158° F) Samsung Enterprise 240GB SATA SSD Specification Description Capacity 240GB Width Physical Size: 6.36 cm (2.5 in) Interface SATA 6Gb/s Synchronous Transfer Rate (Maximum) 600 Mb/s Samsung Enterprise 480GB SATA SSD Specification Description Capacity 480GB Width Physical Size: 6.36 cm (2.5 in) Interface SATA 6Gb/s Synchronous Transfer Rate (Maximum) 600 Mb/s Intel Pro 1500 180GB SATA SSD Specification Description Capacity 180GB Width Physical Size: 8.9 cm (3.5 in) Interface SATA 6Gb/s Synchronous Transfer Rate (Maximum) 600 Mb/s Operating Temperature 0° to 70° C (32° to 158° F) HP Z Turbo Drive 256GB SSD Specification Description Capacity 256GB Interface PCI Express 2.0 x4 electrical x4 physical Operating Temperature 0° to 70° C (32° to 158° F) HP Z Turbo Drive 512GB SSD Specification Description Capacity 512GB Interface PCI Express 2.0 x4 electrical x4 physical Operating Temperature 0° to 70° C (32° to 158° F) Optical and Removable storage specifications HP Slim SuperMulti DVD writer drive Specification Description Description 9.5mm height, tray-load Mounting Orientation Either horizontal or vertical Interface Type SATA/ATAPI Dimensions (W x H x D) 128 x 9.5 x 127mm Supported Media Types DVD-RAM DVD+R DVD+RW DVD+R DL DVD-R DL DVD-R DVD-RW CD-R CD-RW Disc Capacity DVD-ROM: 8.5 GB DL or 4.7 GB standard Full Stroke DVD: < 200 ms (seek) Full Stroke CD: < 200 ms (seek) Maximum Data Transfer Rates CD ROM Read CD-ROM, CD-R Up to 24X CD-RW Up to 24X DVD ROM Read DVD-RAM Up to 8X DVD+RW Up to 8X DVD-RW Up to 8X DVD+R DL Up to 8X DVD-R DL Up to 8X DVD-ROM Up to 8X DVD-ROM DL Up to 8X DVD+R Up to 8X DVD-R Up to 8X Power Source: SATA DC power receptacle DC Power Requirements: 5 VDC ± 5%-100 mV ripple p-p DC Current: 5 VDC -< 800 mA typical, <1600 mA maximum Operating Environmental (all conditions non-condensing) Temperature: 5° to 50° C (41° to 122° F) Relative Humidity: 10% to 80% Maximum Wet Bulb Temperature: 29° C (84° F) Operating Systems Supported Windows 8.1, Windows 8 32-bit and 64-bit, Windows 7 Professional 32-bit and 64-bit, Windows Vista Business 64*, Windows Vista Business 32*, Windows Vista Home Basic 32*, Windows 2000, Windows XP Professional or Windows XP Home 32* Red Hat Enterprise Linux(RHEL) WS4**, 5, 6 Desktop/Workstation SUSE Linux Enterprise Desktop 10 & 11 No driver is required for this device. Native support is provided by the operating system Kit Contents 9.5mm Slim Super-Multi DVD Writer, 5.25" ODD Bay adapter/carrier, slim SATA data/power cable, installation guide |
Graphics
| Installed Graphic Card | Nvidia Quadro K2200 4GB |
| Supported Display Adapter |
Intel HD Graphics on all models (integrated on processor) NVIDIA NVS 310 512MB 1st GFX NVIDIA Quadro K2200 4GB 1st GFX NVIDIA Quadro K4200 4GB 1st GFX AMD FirePro W2100 2GB 1st GFX NVIDIA NVS 310 512MB 2nd GFX NVIDIA Quadro K2200 4GB 2nd GFX NVIDIA Quadro K4200 4GB 2nd GFX AMD FirePro W2100 2GB 2nd GFX NVIDIA Quadro K2200 4GB 3rd GFX |
Ports/slots/bays
| Expansion Slots |
Slot 1 PCIe Gen 3 x4 (transforms to PCIe Gen 3 x8 when 2nd CPU is installed) Slot 2 PCIe Gen 3 x16 Slot 3 PCIe Gen 3 x16 (available ONLY when 2nd processor is installed) Slot 4 PCIe Gen 3 x16 Slot 5 PCIe Gen 3 x4 Slot 6 PCIe Gen 3 x16 (available ONLY when 2nd processor is installed) Slot 7 PCIe Gen 3 x4 NOTE: The PCIe x4 and PCIe x8 connectors are open ended, allowing a PCIe x16 card to be seated in the slot. |
| Input/output ports |
Front I/O (base) (4) USB 3.1 Gen 1 Type-A connector (left most connector has charging capability) (1) Combo headset (1) Optional media card reader Front I/O (premium) (2) USB 3.1 Gen 1 Type-A connector (left most connector has charging capability) (2) USB 3.1 Gen 2 Type-C connector (1) Combo headset (1) Optional media card reader Internal I/O (1) PCIe Gen 3 x8 (internal slot always available for CPU) (1) PCIe Gen 3 x8 (internal slot available when 2nd CPU is installed) (2) USB 2.0 ports available with a single 2x5 header (1) USB 2.0 port available with a 1x6 header (1) USB 3.1 Gen 1 and (1) USB 2.0 port available with a 2x6 header NOTE: The 2x5, 1x6, and 2x6 headers can be converted to a standard (Type-A) USB 2.0 connector through the use of one HP Internal USB Port Kit. Rear I/O (6) USB 3.1 Gen 1 (aka USB 3.0) (1) Serial (1) PS/2 Keyboard (1) PS/2 Mouse (2) RJ-45 to integrated Gigabit LAN (1) Audio line-in (can be retasked as microphone) (1) Audio line-out |
| Expansion bays |
(4) Internal 8.89 cm (3.5 in) bays (2) External 13.33 cm (5.25 in) bays (1) 9.5 mm (0.37 in) slim optical disk drive bay |
Audio/multimedia
| Audio | Integrated Realtek HD ALC221 Audio |
Networking/communication
| Communications | Intel I218LM GbE platform LAN connect networking controller |
| Connectivity Technology | RJ-45 (motherboard integration) |
| Data Transfer Rate | 10/100/1000 Mbps |
Security & Reliability
| Software/security |
Software Sobey video editing software HP Remote Graphics Software BIOS Standard BIOS 32-bit Service Directory Proposal v0.4 PCI Local Bus specification, revision 2.3 PCI Power Management specification, revision 1.1 PCI Firmware specification, revision 3.0, draft .7 PCI Express Base specification, revision 2.0 PCI Express Base specification, revision 3.0 POST Memory Manager specification, version 1.01 ATAPI Removable Media Device BIOS specification version 1.0 WMI support BIOS Boot spec 1.01+ (disables the ability to boot from removable media on supported devices) UEFI 2.5 ACPI version 5.0 Enhanced Host Controller Interface for Universal Serial Bus, revision 1.0 LANDesk Management Suite (HP recommended solution) Microsoft System Center Configuration Manager HP Client Automation Enterprise Security Software Trusted Computing Group TPM specification version 2.0 Infineon SLB 9665 (Common Criteria EAL4+ certified) Remote wakeup/remote shutdown Memory change alert Thermal alert Hardware Security cable with Kensington lock (optional) HP Z4/Z6 Side panel barrel keylock HP Solenoid Lock/hood Sensor HP Z4/Z6 Depth Adjustable Fixed Rail Rack Kit HP Keyed Cable Lock 10 mm Workstation ISV certifications Go to the Workstation ISV certifications webpage to see current certifications |
Environmental specifications
| Certifications |
Maximum altitude (unpressurized) Operating: 3,048 m (10,000 ft) Non-operating: 9,144 m (30,000 ft) Dynamic (new) Shock Operating: ½-sine: 40 g, 2-3ms (~62 cm/sec) Non-operating: ½-sine: 160 cm/s, 2-3ms (~105 g) square: 20 g, 422 cm/s NOTE: Values represent individual shock events and do not indicate repetitive shock events. Vibration Operating (random): 0.5 g (rms), 5-300 Hz, up to 0.0025 g²/Hz Non-operating (random): 2.0 g (rms), 5-500 Hz, up to 0.0150 g²/Hz Cooling Above 1524m (5,000 ft.) altitude, maximum operating temperature is de-rated by 1°C (1.8°F) per 305m (1,000 ft.) elevation increase |
| Temperature |
Operating: 5°C to 35°C (40°F to 95°F) Non-operating: -40°C to 60°C (-40°F to 140°F) |
| Humidity |
Operating: 8% to 85% RH, non-condensing Non-operating: 8% to 90% RH, non-condensing |
| Altitude (unpressurized) |
Operating: 3,000 m (10,000 ft) Non-operating: 9,100 m (30,000 ft) |
Power
| Power Supply |
Power Supply 925W 90% Efficient, Custom PSU (Wide Ranging, Active PFC) Operating Voltage Range 90–269 VAC Rated voltage range 100 - 240 V 118 V Rated line frequency 50–60 Hz 400 Hz Operating line frequency range 47–66 Hz 393–407 Hz Rated input current 11.3 A @ 100-240 V 11.3 A @ 400 V Heat Dissipation (Configuration and software dependent) Typical = 2105 btu/hr (530 kcal/hr) Maximum = 3629 btu/hr (914 kcal/hr) Power Supply Fan 92x25 mm variable speed ENERGY STAR Qualified (Configuration dependent) Yes Power supply fan 92x25 mm variable speed 80 PLUS® Compliant Yes, 90% Efficient The Z640 925W power supply efficiency report can be found at this link: TBD FEMP Standby Power Compliant @115V (<2W in S5 - Power Off) Yes EuP Compliant @ 230V (<0.5W in S5 - Power Off) Yes CECP Compliant @ 220V (<4W in S3 - Suspend to RAM) Yes; Configuration dependent Power Consumption in sleep mode (as defined by ENERGY STAR) - Suspend to RAM (S3) (Instantly Available PC) <20W Built-in Self-Test LED Yes Surge Tolerant Full Ranging Power Supply (withstands power surges up to 2000V) Yes |
Physical specifications
| dimensions ( H x W x D) | 44.45 x 17.15 x 46.48 cm (17.5 x 6.75 x 18.3 in) |
| Rack dimensions | 4U |
| Weight | Actual weight depends upon configuration Minimum configuration: 15.0 kg (33.1 lbs) Typical configuration: 17.0 kg (37.5 lbs) Maximum configuration: 21.8 kg (48.0 lbs) |
OPERATING SYSTEM
| Pre Install Os |
OS Provided: Type Windows 10 |
SERVICE & SUPPORT
| Warranty | Limited 03-month warranty |
Server Stock offers Three- month warranty for all of our Refurbished products that is covering the most parts, with exceptions for burn and physical damage. Server Stock also offers flexible extendable warranty options. for example, Each 3 months extended warranty you need to add 5% extra, it means if you want any product with one year warranty then you need to add 15% extra amount in total price. You can avail free of cost repairs or replacement if needed during the warranty period for the Refurbished products. Actual warranty starts on the day when you purchase the product from us.
