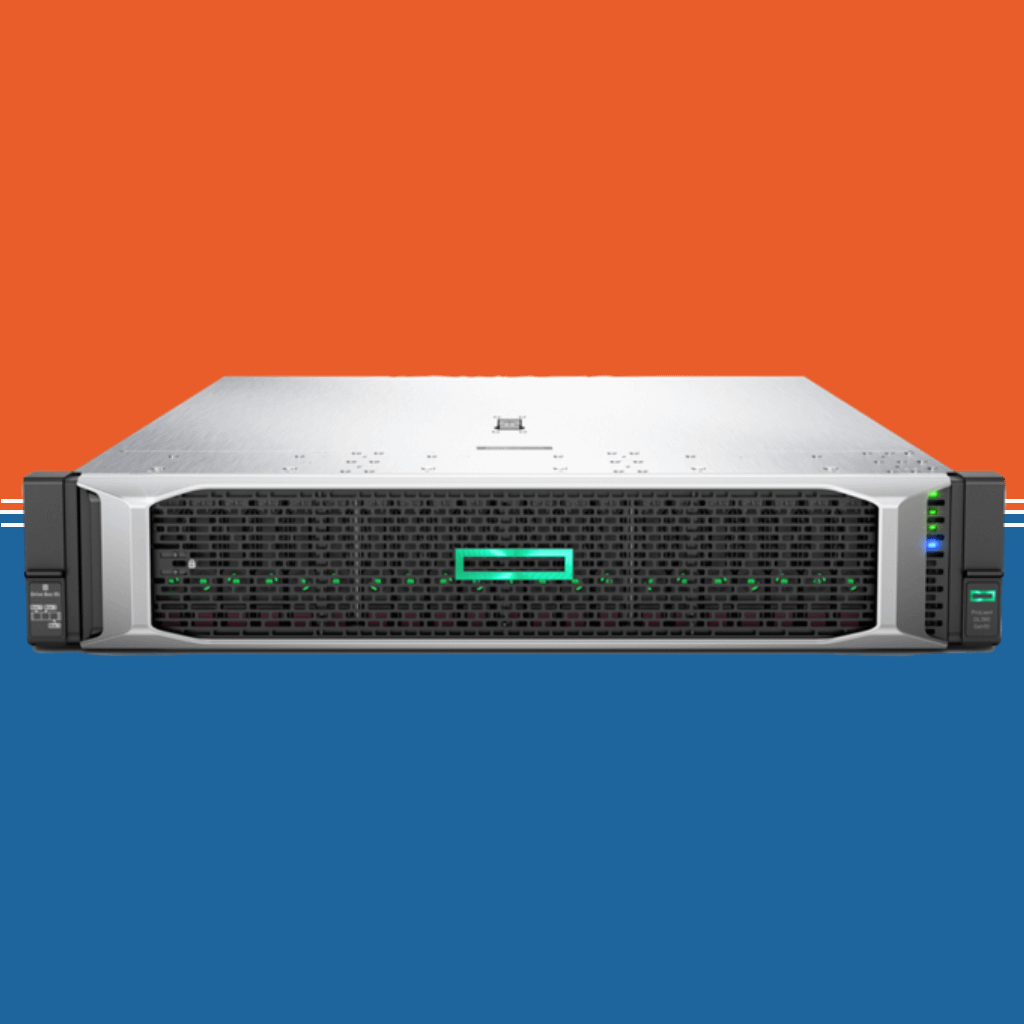

HPE DL380 Gen10 Server

HPE DL380 Gen10 Server

Original price was: AED8,400.Current price is: AED3,999.

Brand: HP-Logo
  • Brand: HP
  • Condition: Refurbished
  • Model: HPE DL380 Gen10 Rack Server
  • Single Intel Xeon ® Gold 6138 Processor Family
  • RAM DDR4 32GB  2400MHz
  • SAS Hot Plug 2 x 600GB 2.5-inch
  • Raid Controller  HPE Smart Array P408i
  • Dual Power Supply 500 Watt
  • Extended Warranty Available
Estimated delivery:3 days
Request a Quote

in stock

HPE DL380 Gen10 Rack Server Price List.

Server Model

Processor

Memory

Storage

Price

HP DL380 Gen10 Server 8SFF (Basic)

16 Core / 32 vCPU ( 2x Xeon Silver 4110)

32GB/DDR4(4x8GB)

2 x 600GB SAS HDD

AED 3999/-

HP DL380 Gen10 Server 8SFF (Standard)

40 Core / 80 vCPU ( 2x Xeon Gold 6138)

64GB/DDR4(4x16GB)

2 x 900GB SAS HDD

AED 4499/-

HP DL380 Gen10 Server 16SFF (Reliable)

40 Core / 80 vCPU ( 2x Xeon Gold 6148)

128GB/DDR4(4x32GB)

2 x 1.2TB SAS HDD

AED 5999/-

HP DL380 Gen10 Server 16SFF (Professional)

40 Core / 80 vCPU ( 2x Xeon Gold 6148)

256GB/DDR4(8x32GB)

2 x 1TB SATA SSD

AED 6999/-

HP DL380 Gen10 Server 16SFF (Advanced)

48 Core / 96 vCPU ( 2x Xeon Platinum 8160)

512GB/DDR4(16x32GB)

2 x 1.92TB SATA SSD

AED 8499/-

HPE DL380 Gen10 Server 12LFF (Advanced Storage)

40 Core / 80 vCPU ( 2x Xeon Gold 6148)

128GB/DDR4(4x32GB)

5 x 8TB 3.5″ SAS HDD

2 x 1TB 2.5″ SATA SSD

AED 9999/-

above Configuration also Includes these Components.

HP Smart Array P408i RAID Controller, 4 x 1Gb Gigabit Network Lan Ports, Hot-Swap dual Power supply 500W, Rail kit Optional.

Get More Information
Specification
Brand HPE
Model DL380 Gen10 Rack Server
Part Number 859082-375
Product Type
Product type Rack Server
Form Factor
Form Factor 2U
Processor
CPU Information Intel® Xeon® Gold 6138 Processor (27.5M Cache- 2.00 GHz)

Essentials
Product Collection Intel® Xeon® Scalable Processors
Code Name Products formerly Skylake
Vertical Segment Server
Processor Number 6138
Lithography 14 nm
Use Conditions Server/Enterprise

CPU Specifications
Total Cores 20
Total Threads 40
Max Turbo Frequency 3.70 GHz
Processor Base Frequency 2.00 GHz
Cache 27.5 MB L3 Cache
Max # of UPI Links 3
TDP 125 W

Supplemental Information
Marketing Status Launched
Launch Date Q3'17
Servicing Status ESU Notification Issued
End of Servicing Updates Date Sunday | December 31 | 2023
End of Interactive Support Date Sunday | December 31 | 2023
Embedded Options Available Yes
Datasheet View now
Product Brief View now
Additional Information View now

Memory Specifications
Max Memory Size (dependent on memory type) 768 GB
Memory Types DDR4-2666
Maximum Memory Speed 2666 MHz
Max # of Memory Channels 6
ECC Memory Supported ‡ Yes

Expansion Options
Scalability S4S
PCI Express Revision 3
Max # of PCI Express Lanes 48

Package Specifications
Sockets Supported FCLGA3647
TCASE 86°C
Package Size 76.0mm x 56.5mm

Advanced Technologies
Intel® Optane™ Memory Supported ‡ No
Intel® Speed Shift Technology Yes
Intel® Turbo Boost Max Technology 3.0 ‡ No
Intel® Turbo Boost Technology ‡ 2
Intel® Hyper-Threading Technology ‡ Yes
Intel® Transactional Synchronization Extensions Yes
Intel® 64 ‡ Yes
Instruction Set Extensions Intel® AVX-512
# of AVX-512 FMA Units 2
Enhanced Intel SpeedStep® Technology Yes
Intel® Volume Management Device (VMD) Yes

Security & Reliability
Intel vPro® Eligibility ‡ Intel vPro® Platform
Intel® AES New Instructions Yes
Intel® Trusted Execution Technology ‡ Yes
Execute Disable Bit ‡ Yes
Intel® Run Sure Technology Yes
Mode-based Execute Control (MBEC) Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
CPU Specifications
Supported Processors Supported Processors
Platinum 8280 Processor 2.7 GHz 28 38.50 MB 205W 3 @ 10.4 GT/s 2933 MT/s 1TB
Platinum 8280L Processor 2.7 GHz 28 38.50 MB 205W 3 @ 10.4 GT/s 2933 MT/s 4.5TB
Platinum 8280M Processor 2.7 GHz 28 38.50 MB 205W 3 @ 10.4 GT/s 2933 MT/s 2TB
Platinum 8276 Processor 2.2 GHz 28 38.50 MB 165W 3 @ 10.4 GT/s 2933 MT/s 1TB
Platinum 8276L Processor 2.2 GHz 28 38.50 MB 165W 3 @ 10.4 GT/s 2933 MT/s 4.5TB
Platinum 8276M Processor 2.2 GHz 28 38.50 MB 165W 3 @ 10.4 GT/s 2933 MT/s 2TB
Platinum 8270 Processor 2.7 GHz 26 35.75 MB 205W 3 @ 10.4 GT/s 2933 MT/s 1TB
Platinum 8268 Processor 2.9 GHz 24 35.75 MB 205W 3 @ 10.4 GT/s 2933 MT/s 1TB
Platinum 8260 Processor 2.4 GHz 24 35.75 MB 165W 3 @ 10.4 GT/s 2933 MT/s 1TB
Platinum 8260L Processor 2.4 GHz 24 35.75 MB 165W 3 @ 10.4 GT/s 2933 MT/s 4.5TB
Platinum 8260M Processor 2.4 GHz 24 35.75 MB 165W 3 @ 10.4 GT/s 2933 MT/s 2TB
Platinum 8260Y Processor 2.4 GHz 24/20 /16 35.75 MB 165W 3 @ 10.4 GT/s 2933 MT/s 1TB
Platinum 8256 Processor 3.8 GHz 4 16.50 MB 105W 3 @ 10.4 GT/s 2933 MT/s 1TB
Platinum 8253 Processor 2.2 GHz 16 22.00 MB 125W 3 @ 10.4 GT/s 2933 MT/s 1TB

1st Generation Intel® Xeon® Scalable Processor Family Platinum Processors
Platinum 8180M Processor 2.5 GHz 28 38.50 MB 205W 3 @ 10.4 GT/s 2666 MT/s 1.5TB
Platinum 8180 Processor 2.5 GHz 28 38.50 MB 205W 3 @ 10.4 GT/s 2666 MT/s 768GB
Platinum 8176 Processor 2.1 GHz 28 38.50 MB 165W 3 @ 10.4 GT/s 2666 MT/s 768GB
Platinum 8170 Processor 2.1 GHz 26 35.75 MB 165W 3 @ 10.4 GT/s 2666 MT/s 768GB
Platinum 8168 Processor 2.7 GHz 24 33.00 MB 205W 3 @ 10.4 GT/s 2666 MT/s 768GB
Platinum 8165 Processor 2.3 GHz 24 33.00 MB 205W 3 @ 10.4 GT/s 2666 MT/s 768GB
Platinum 8164 Processor 2.0 GHz 26 35.75 MB 150W 3 @ 10.4 GT/s 2666 MT/s 768GB
Platinum 8160 Processor 2.1 GHz 24 33.00 MB 150W 3 @ 10.4 GT/s 2666 MT/s 768GB
Platinum 8158 Processor 3.0 GHz 12 24.75 MB 150W 3 @ 10.4 GT/s 2666 MT/s 768GB
Platinum 8156 Processor 3.6 GHz 4 16.50 MB 105W 3 @ 10.4 GT/s 2666 MT/s 768GB
Platinum 8153 Processor 2.0 GHz 16 22.00 MB 125W 3 @ 10.4 GT/s 2666 MT/s 768GB
Memory
Installed Memory RAM DDR4 32GB  2400MHz
Memory Type HPE DDR4 SmartMemory and HPE Persistent Memory, depending on model
Memory, standard

DIMM Slots Available 24
12 DIMM slots per processor, 6 channels per processor,2 DIMMs per channel
Maximum capacity (LRDIMM) 3.0 TB 24 x 128 GB LRDIMM @ 2933 MT/s
Maximum capacity (RDIMM) 1.54 TB 24 x 64 GB RDIMM @ 2933 MT/s
Maximum capacity (HPE DC Persistent Memory) 6.0 TB 12 X 512 GB Memory Kit @ 2666 MT/s
Maximum capacity (NVDIMM) 192 GB 12 x 16 GB NVDIMM @ 2666 MT/s
64 GB (2 x 32 GB) RDIMM Dual Rank 2933MT/s
NVDIMM type

HPE DC Persistent Memory featuring Intel® Optane™ Technology available 2H19
NVDIMM rank

Single rank
NVDIMM capacity

Maximum memory3.0 TB with 128 GB DDR4, depending on processor model; 6.0 TB with HPE 512GB 2666 Persistent Memory Kit, depending on processor model

NVDIMM typeHPE NVDIMM-N *Only available on 1st Generation Intel® Xeon® Scalable Processors

NVDIMM rankSingle rank

NVDIMM capacity16 GB
Storage and drives
Installed Hard Disk 2 x 600GB SAS
Storage Option

supporting up to 3 devices ·
NVMe 6.4TB to 1.6TB MU HHHL DSF Card ·
SAS 12G 3.84TB/1.92TB/960GB MU and 7.68TB/3.84TB/1.92TB/960GB RI--
SFF SC VS DSF SSD · SAS 12G 1.92TB and 960GB MU LFF SCC VS DSF SSD

8 SFF with optional Universal Media Bay and optional SFF or NVMe drive bay options ·
24 SFF bay with additional 6SFF rear drive bay option to total 30 SFF drives ·
8 LFF with Universal Media Bay · 12 LFF with optional 4 LFF mid-plane and optional 3LFF
+ 2 SFF rear drive bay to a total of 19 LFF drives + 2 SFF drives

Maximum Internal Storage
Hot Plug SFF SAS HDD 72.0 TB 24+6 x 2.4 TB* (with optional rear SFF drive cage)
Hot Plug SFF SATA HDD 60.0 TB 24+6 x 2 TB (with optional SFF drive cage)
Hot Plug LFF SAS HDD 273.68 TB 12+4+3 x 14 TB + 2 x 3.84 TB (with optional mid –tray
and rear LFF drive cage, plus 2 SFF SSD rear)
Hot Plug LFF SATA HDD 273.68 TB 12+4+3 x 14 TB + 2 x 3.84 TB (with optional mid –tray
and rear LFF drive cage, plus 2 SFF SSD rear)

Hot Plug SFF SAS SSD 459 TB 24+6 x 15.3 TB (with optional rear SFF drive cage)
Hot Plug SFF SATA SSD 115.2 TB 24+6 x 3.84 TB (with optional rear SFF drive cage)
Hot Plug LFF SATA SSD 80.64 TB 12+4+3 x 3.84 TB + 2 x 3.84 TB (with optional mid –tray
and rear LFF drive cage, plus 2 SFF SSD rear)
Hot Plug LFF SAS SSD 44.16 TB 12+4+3 x 1.92 TB + 2 x 3.84 TB (with optional mid –tray
and rear LFF drive cage, plus 2 SFF SSD rear)

Hot Plug SFF NVMe PCIe SSD 153.6 TB 20 x 7.68 TB NVMe
Server Drives
Drive supported 8 or 12 LFF SAS/SATA/SSD 8, 10, 16, 18 or 24 SFF SAS/SATA/SSD; 2 M.2 SATA SSD standard on primary riser, depending on configuration; 6 SFF rear drive optional or 3 LFF rear drive optional and 2 SFF or 2 Dual UFF rear drive optional; 20 SFF NVMe optional; NVMe support via Express Bay will limit maximum drive capacity
Storage Controller 1 HPE Smart Array S100i and 1 HPE Smart Array P408i-a/2 GB plus Smart Storage Battery
Graphics
Supported Display Adapter Integrated Matrox G200eH2 video standard
with 16MB of Video RAM · 1280 x 1024 (32 bpp)
1920 x 1200 (16 bpp) HPE iLO 4 On System Management Memory
16 MB Flash · 256 MB DDR3 with ECC (112 MB after ECC and video)
Ports/slots/bays
Expansion Slots USB 3.0 Up to 5 total:
1 front, 2 rear, 2 internal (secure),
2 optional USB 2.0 front via Universal Media Bay, or standard on 8LFF chassis
Display Port 1 (SFF 1 front, optional via Universal Media Bay, 826708-B21), 8 LFF chassis standard
FlexibleLOM Network Ports 4 x 1 Gb ports shipping standard with optional FlexibleLOM or stand-up card
HPE iLO Remote Management Network Port 1 Gb Dedicated
Front iLO Service Port 1 standard (Not available on 12 LFF chassis or when SID is ordered, note iLO dongle required 880123-B21)
Micro SD Slot 1 Micro SD

Expansion Slots # Technology Bus Width Connector Width Form Factor Notes
1 PCIe 3.0 X8 X8 Full-height, full-length slot Proc 1
2 PCIe 3.0 X16 X16 Full-height, full-length slot Proc 1
3 PCIe 3.0 X8 X8 Full-height, half-length slot Proc 1
1 PCIe 3.0 X8 X8 Full-height, full-length slot Proc 2
2 PCIe 3.0 X16 X16 Full-height, full-length slot Proc 2
3 PCIe 3.0 X8 X8 Full-height, half-length slot
Input/output ports Display Port 1 (SFF 1 front, optional via Universal Media Bay, 826708-B21), 8 LFF chassis standard
Networking/communication
Ports HPE 1 Gb 331i Ethernet adapter 4-ports per controller and/or optional HPE FlexibleLOM, depending on model
Power
Power Supply 500 W (Platinum) power supply: 100 to 240 V ac
Physical specifications
dimensions ( H x W x D) SFF Drives: 8.73 x 44.54 x 67.94 cm (3.44 x 17.54 x 26.75 in)
LFF Drives: 8.73 x 44.54 x 73.02 cm (3.44 x 17.54 x 28.75 in)
Weight 19.5 kg (43.00 lb)
OPERATING SYSTEM
Pre Install Os OS Provided: Type
Non
SERVICE & SUPPORT
Warranty Limited 03-month warranty
