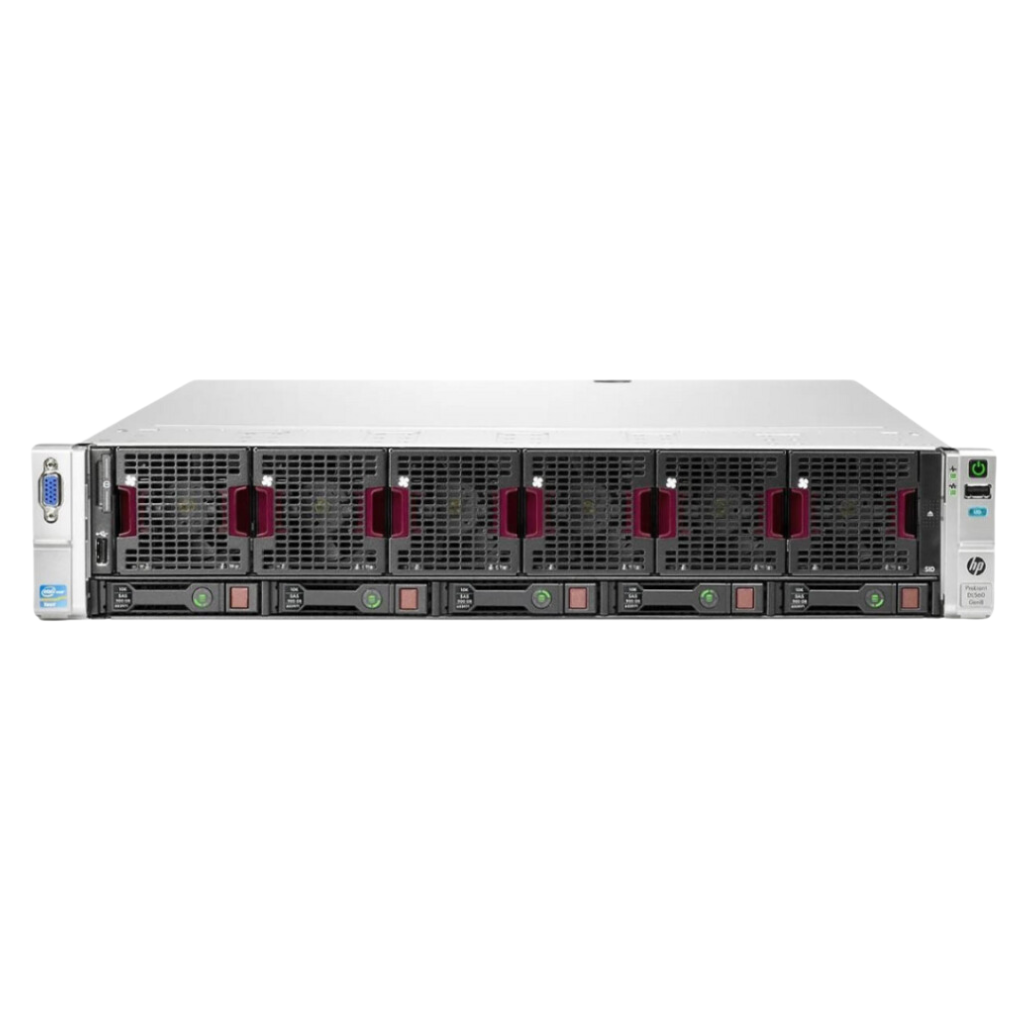

HPE DL560 Gen9 Server
Original price was: AED7,499.00.AED5,999.00Current price is: AED5,999.00.
- HP DL560 Gen9 Server (Refurbished)
- Dual Intel® Xeon® E5-4600 v4 Processor Family
- RAM DDR4 64GB 2666MHz
- SAS Hot Plug 2 x 600GB 2.5-inch
- Raid Controller HPE Smart Array P408i
- Dual Power Supply 500 Watt
- Extended Warranty Available
Estimated delivery:1 - 2 days
Server Stock provides free delivery within the UAE for every order that is above AED 500. If the value of the order is below AED 500, we do collect a nominal delivery charge of AED 30. Server Stock delivers the products within the duration 1 to 2 working days. Deliveries will only be processed during business working days, and please note that public holidays and Friday will be counted as non-working days. The products which are “In Stock” on the website will be shipped on the same day if the order is placed before 3 pm. If we receive the order after 5 pm, we will ship it on the next day based on the product’s availability. Same day express delivery also available for Dubai, Sharjah and Ajman. Express delivery charges will be 150AED. We accept COD (Cash on Delivery) and Bank Transfers for orders placed from within the UAE. Bank Transfer should be done for the orders placed from the locations that are outside of the UAE. Please ensure whether the shipping providers delivers the servers from UAE to your destination before placing the order.
Specification
| Brand | HPE |
| Model | DL560 Gen9 Server |
| Part Number | E5-4600 v4 Processor Family |
Product Type
| Product type | Rack Server |
Form Factor
| Form Factor | 2U |
Processor
| CPU Information |
Dual Intel® Xeon® Processor E5-4650 v4 (35M Cache- 2.40 GHz)
CPU Specifications Total Cores 14 Total Threads 28 Max Turbo Frequency 2.80 GHz Intel® Turbo Boost Technology 2.0 Frequency‡ 2.80 GHz Processor Base Frequency 2.20 GHz Cache 35 MB Bus Speed 9.6 GT/s # of QPI Links 2 TDP 105 W Supplemental Information Marketing Status Discontinued Launch Date Q2'16 Servicing Status End of Servicing Updates End of Servicing Updates Date Thursday, June 30, 2022 Embedded Options Available No Datasheet View now Memory Specifications Max Memory Size (dependent on memory type) 1.5 TB Memory Types DDR4 Max # of Memory Channels 4 Max Memory Bandwidth 68 GB/s Physical Address Extensions 46-bit ECC Memory Supported ‡ Yes Expansion Options Scalability 4S PCI Express Revision 3.0 PCI Express Configurations ‡ x4, x8, x16 Max # of PCI Express Lanes 40 Package Specifications Sockets Supported FCLGA2011 Max CPU Configuration 4 TCASE 80 Package Size 45mm x 52.5mm Advanced Technologies Intel® Turbo Boost Technology ‡ 2.0 Intel® Hyper-Threading Technology ‡ Yes Intel® Transactional Synchronization Extensions Yes Intel® 64 ‡ Yes Instruction Set 64-bit Instruction Set Extensions Intel® AVX2 Idle States Yes Enhanced Intel SpeedStep® Technology Yes Thermal Monitoring Technologies Yes Intel® Flex Memory Access No Intel® Instruction Replay Technology No Security & Reliability Intel® AES New Instructions Yes Secure Key Yes Intel® OS Guard Yes Intel® Trusted Execution Technology ‡ Yes Execute Disable Bit ‡ Yes Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® VT-x with Extended Page Tables (EPT) ‡ Yes |
CPU Specifications
| Supported Processors |
Intel C610 Series Chipset
Intel Xeon E5-4600v3 Processor Family Intel Xeon E5-4600v4 Processor Family Processor Up to two of the following depending on model Model CPU with frequency E5-4669v3 2.1 GHz 18 Core Cache 45MB 135 W 9.6 GT/s 2133 E5-4667v3 2.0 GHz 16 Core Cache 40MB 135 W 9.6 GT/s 2133 E5-4660v3 2.1 GHz 14 Core Cache 35MB 120 W 9.6 GT/s 2133 E5-4655v3 2.9 GHz 6 Core Cache 30MB 135 W 9.6 GT/s 2133 E5-4650v3 2.1 GHz 12 Core Cache 30MB 105 W 9.6 GT/s 2133 E5-4640v3 1.9 GHz 12 Core Cache 30MB 105 W8.0 GT/s 1866 E5-4627v3 2.6 GHz 10 Core Cache 25MB 135 W8.0 GT/s2133 E5-4620v3 2.0 GHz 10 Core Cache 25MB 105 W8.0 GT/s1866 E5-4610v3 1.7 GHz 10 Core Cache 25MB 105 W6.4 GT/s1600 E5-4669v4 2.2 GHz 22 Core Cache 55MB 135 W9.6 GT/s2400 E5-4667v4 2.2 GHz 18 Core Cache 45MB 135 W9.6 GT/s2400 E5-4660v4 2.2 GHz 16 Core Cache 40MB 120 W9.6 GT/s2400 E5-4655v4 2.5 GHz 8 Core Cache 30MB 135 W9.6 GT/s2400 E5-4650v4 2.2 GHz 14 Core Cache 35MB 105 W9.6 GT/s2400 E5-4640v4 2.1 GHz 12 Core Cache 30MB 105 W8.0 GT/s2133 E5-4627v4 2.6 GHz 10 Core Cache 25MB 135 W8.0 GT/s2400 E5-4620v4 2.1 GHz 10 Core Cache 25MB 105 W8.0 GT/s2133 E5-4610v4 1.8 GHz 10 Core Cache 25MB 105 W6.4 GT/s1866 |
Memory
| Installed Memory | RAM DDR4 64GB 2133 MHz DDR4 SDRAM |
| Memory Type |
HPE Smart Memory DDR4 Registered (RDIMM) and Load Reduced (LRDIMM)
DIMM Slots Available 48 (12 DIMM slots per processor, 4 channels per processor, 3 DIMMs per channel) Maximum Capacity (LRDIMM) 3TB (48 x 64GB LRDIMM @ 2400 MHz) Maximum Capacity (RDIMM) 1.5TB (48 x 32GB RDIMM @ 2400 MHz) |
Storage and drives
| Installed Hard Disk | 2 x 600GB |
| Storage Option |
HPE Dynamic Smart Array B140i Controller
STORAGE RAID Level RAID 0, RAID 1, RAID 10 Hot Plug SFF SATA 48TB 24 x 2TB Hot Plug SFF SAS 48TB 24 x 2TB Hot Plug SFF SATA SSD 92TB 24 x 3.84TB Hot Plug SFF SAS SSD 92TB 24 x 3.84TB 8 Drives = 8SFF 10 Drives = 8SFF + 2SFF 14 Drives = 8SFF + 6 NVMe 16 Drives = 8SFF + 6 NVME + 2SFF 16 Drives = 8SFF + 8SFF 18 Drives = 8SFF + 8SFF + 2SFF 22 Drives = 8SFF + 6 NVMe + 8SFF 24 Drives = 8SFF + 8SFF + 8SFF |
Graphics
| Supported Display Adapter |
Integrated Matrox G200 video standard
1280 x 1024 (32 b/p) 1920 x 1200 (16 b/p) HPE iLO 4 On System Management Memory 256MB DDR3 with ECC (112MB after ECC and video) 16MB Flash |
Ports/slots/bays
| Expansion Slots |
Interfaces
Video 1 front (Optional with universal media bay kit); 1 rear Serial 1 rear HPE iLO 4 Remote Management 1 Micro SD Dual slot 1 USB 2.0 Ports 5 total: 2 front (Optional); 2 rear; 1 internal USB 3.0 Ports 4 total: 1 front; 2 rear, 1 internal Industry standard compliance ACPI 2.0 PCIe 2.0 & 3.0 PXE Support WOL Support Microsoft Logo certifications USB 2.0 and 3.0 Support Energy star ASHRAE A3/A4 Upgradeability Upgradeable to four (4) processors Up to 48 DIMM slots 7 PCIe 3.0 I/0 slots Embedded 10-Port SATA, B140i as standard HPE Flexible Smart Array, Smart Array or Smart HBA Controllers FlexibleLOM slot for 1Gb or 10 GbE or QDR/FDR InfiniBand networking options Up to 24 SFF Drives; or 18 SFF Drives with optional Universal Media Bay Optional System Insight Display (SID) Redundant power supplies |
Power
| Power Supply | HPE 1200 W Common slot platinum Hot-Plug power supply |
OPERATING SYSTEM
| Pre Install Os |
OS Provided: Type
Non |
SERVICE & SUPPORT
| Warranty | Limited 03-month warranty |
Server Stock offers Three- month warranty for all of our Refurbished products that is covering the most parts, with exceptions for burn and physical damage. Server Stock also offers flexible extendable warranty options. for example, Each 3 months extended warranty you need to add 5% extra, it means if you want any product with one year warranty then you need to add 15% extra amount in total price. You can avail free of cost repairs or replacement if needed during the warranty period for the Refurbished products. Actual warranty starts on the day when you purchase the product from us.
