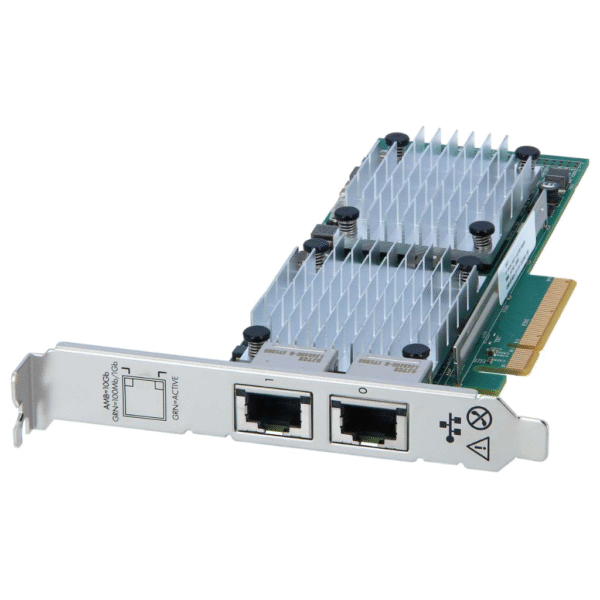

HPE Ethernet 10Gb 2‑port BASE‑T 57810S Adapter
Original price was: AED640.AED375Current price is: AED375.
Brand:
- HPE Ethernet 10Gb 2‑port BASE‑T 57810S Adapter
- Product Type: T Network Adapter
- P/N: 656596-B21, 657128-001
- Network Ports: 10GB Ethernet x2
- Form Factor: Plugin Card
- Data Transfer Rate: 10GB/s
- Please Chat or Call us for QTY. Discount
- Extended Warranty Available
Estimated delivery:2 days
Specification
| Brand | HPE |
| Model | Ethernet 10Gb 2‑port BASE‑T 57810S Adapter |
| Part Number | 656596-B21, 657128-001, 656594-001 |
General
| Device Type | Network Adapter |
| Interface (Bus) Type | PCIe Gen2 x8 |
| PCI Specification Revision | PCIe 2.0 |
Product Type
| Product type | PCIe Network Adapter |
Form Factor
| Form Factor | Standard and low profile adapter compliant with the PCIe standard |
Networking/communication
| Communications | Processor/Memory Processor: BCM57810S - Broadcom RAM: 256 MB Interfaces: 2 x 10Gb Ethernet - RJ-45 Cavium 57810S chipset Compliant Standards: BSMI, BSMI CNS 13438 Class A, EN 61000-3-2:2006, EN 61000-3-3:2008, EN55022 Class A, EN55024, FCC Part 15 A, ICES-003 Class A, UL, WEEE |
| Features | Extended Message-Signaled Interrupts (MSI-X), Jumbo Frames support, PXE support, Receive Side Scaling (RSS), Tagged VLAN, TCP/IP offloading, Teaming support |
| Ports | 2 x 10Gb Ethernet - RJ-45 |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit LAN 10 Gigabit LAN |
| Data Transfer Rate | Two ports, each at 20 Gb/s bi-directional; 40 Gb/s aggregate bi-directional theoretical bandwidth. |
Compatibility Information
| Designed for | Compatibility Supported Servers HPE ProLiant DL20 Gen9 Server HPE ProLiant DL60 Gen9 Server HPE ProLiant DL120 Gen9 Server HPE ProLiant DL160 Gen9 Server HPE ProLiant DL180 Gen9 Server HPE ProLiant DL360 Gen9 Server HPE ProLiant DL360 Gen10 Server HPE ProLiant DL380 Gen9 Server HPE ProLiant DL380 Gen10 Server HPE ProLiant DL560 Gen9 Server HPE ProLiant DL580 Gen9 Server HPE ProLiant ML30 Gen9 Server HPE ProLiant ML350 Gen9 Server HPE Apollo 2000 - XL1x0r Gen9 Server HPE Apollo 4200 Gen9 Server HPE HPE Apollo XL Series: 2000 - XL170r Gen10, 2000 - XL190r Gen10, 4500 - XL450 Gen10 and 6500 - XL270d Gen9 Servers System Requirements OS Required: SunSoft Solaris 10, Microsoft Windows HPC Server 2008 SP2, Microsoft Windows Small Business Server 2011 Essentials, Microsoft Windows MultiPoint Server 2011, Microsoft Windows Small Business Server 2011, Microsoft Windows Server 2008 (32/64-bits) SP2, Red Hat Enterprise Linux 6.1, Red Hat Enterprise Linux 6.2, Red Hat Enterprise Linux 5.7, SuSE Linux Enterprise Server 10 SP4, Citrix XenServer 6.0, SuSE Linux Enterprise Server 11 SP2, Microsoft Windows Server 2012, Red Hat Enterprise Linux 5.8, Microsoft Windows Server 2008 R2 SP1 (32/64 bits), Microsoft Windows HPC Server 2008 R2 SP1, Red Hat Enterprise Linux 5.9, Red Hat Enterprise Linux 6.3, SunSoft Solaris 11, Citrix XenServer 6.1 |
Environmental specifications
| Temperature | Maximum 0° to 55°C (32° to 131°F) Temperature - Non-Operating-65° to 85° C (-85° to 185° F) |
| Humidity | Humidity - Operating 10% to 90% non-condensing Humidity - Non-operating Agency Approvals 5% to 95% non-condensing |
Expansion Options
| Scalability | Expansion & Connectivity Interfaces: 2 x 10GBase-T - RJ-45 |
Physical specifications
| dimensions ( H x W x D) | Width: 9.50 inch Height: 2.25 inch Depth: 7.50 inch |
| Weight | 1.00 lbs |
Power
| Power Supply | Power Required: 15.5W typical 18.2W maximum |
SERVICE & SUPPORT
| Warranty | limited 03-month warranty |
