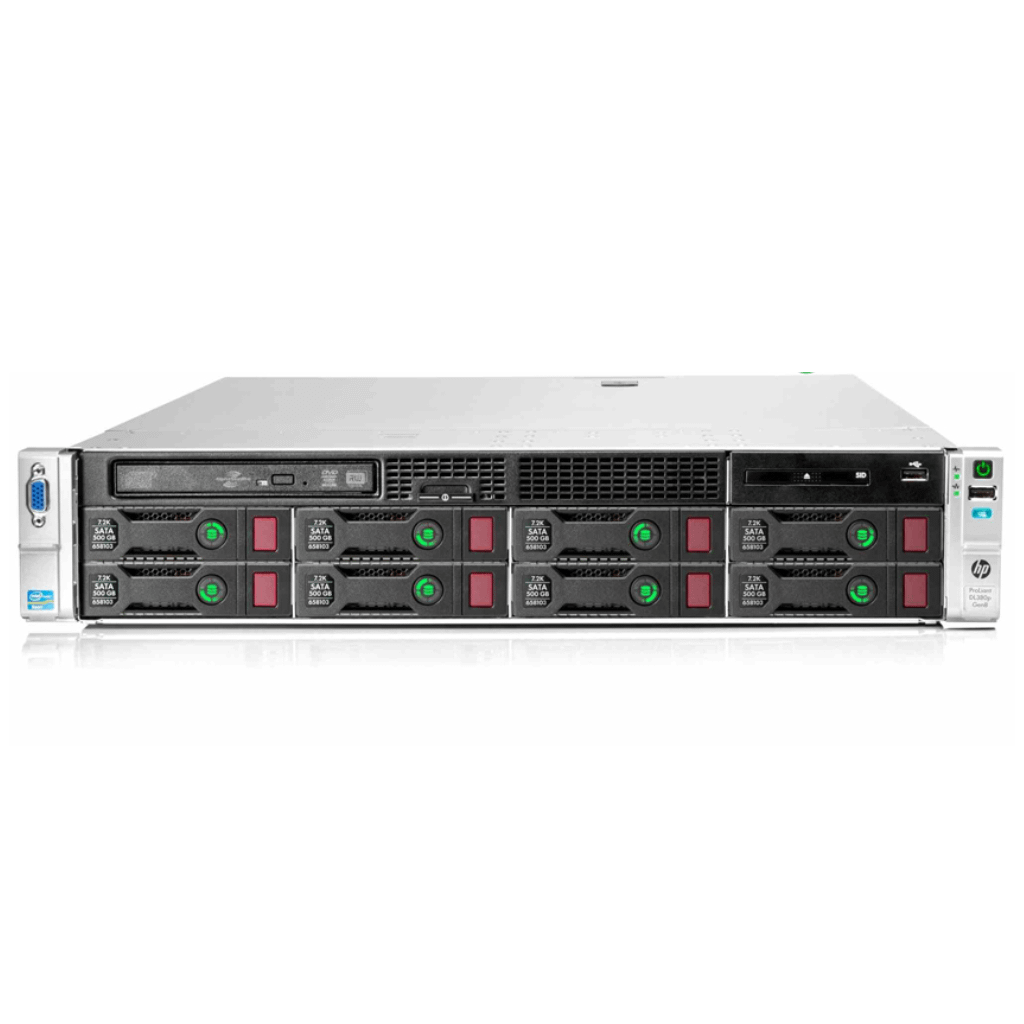

HPE ProLiant DL380p Gen8 Server
Original price was: AED3,499.AED1,850Current price is: AED1,850.
Brand:
- HPE ProLiant DL380 Gen8 Server (Refurbished)
-  Dual Intel® Xeon® E5-2620 V2 Processor
- RAM DDR3 32GB
- SAS Hot Plug 2 x 600GB 2.5-inch
- Raid Controller  HPE Smart Array P420i
- Power Supply 460 Watt
- Extended Warranty Available
Estimated delivery:2 days
Specification
| Brand | HPE |
| Model | HPE ProLiant DL380p Gen8 Server |
Product Type
| Product type | Rack Server |
Form Factor
| Form Factor | 2U |
Processor
| CPU Information |
Dual Intel® Xeon® Processor E5-2620 v2 (15M Cache- 2.60 GHz) CPU Specifications Total Cores 6 Total Threads 12 Max Turbo Frequency 3.10 GHz Intel® Turbo Boost Technology 2.0 Frequency‡ 3.10 GHz Processor Base Frequency 2.60 GHz Cache 15 MB Intel® Smart Cache Bus Speed 7.2 GT/s # of QPI Links 2 TDP 80 W Supplemental Information Marketing Status Discontinued Launch Date Q3'13 Supply Status Discontinued Servicing Status End of Servicing Lifetime End of Servicing Updates Date Tuesday, June 30, 2020 Embedded Options Available Yes Use Conditions Server/Enterprise Memory Specifications Max Memory Size (dependent on memory type) 768 GB Memory Types DDR3 800/1066/1333/1600 Max # of Memory Channels 4 Max Memory Bandwidth 51.2 GB/s Physical Address Extensions 46-bit ECC Memory Supported Yes Expansion Options Scalability 2S Only PCI Express Revision 3.0 PCI Express Configurations ‡ x4, x8, x16 Max # of PCI Express Lanes 40 Package Specifications Sockets Supported FCLGA2011 Max CPU Configuration 2 TCASE 71°C Package Size 52.5mm x 45mm Advanced Technologies Intel® Turbo Boost Technology ‡ 2.0 Intel® Hyper-Threading Technology ‡ Yes Intel® Transactional Synchronization Extensions No Intel® 64 ‡ Yes Instruction Set 64-bit Instruction Set Extensions Intel® AVX Idle States Yes Enhanced Intel SpeedStep® Technology Yes Intel® Demand Based Switching Yes Thermal Monitoring Technologies Yes Intel® Flex Memory Access No Intel® Identity Protection Technology ‡ No Security & Reliability Intel vPro® Eligibility ‡ Intel vPro® Platform Intel® AES New Instructions Yes Secure Key Yes Intel® OS Guard Yes Intel® Trusted Execution Technology ‡ Yes Execute Disable Bit ‡ Yes Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® VT-x with Extended Page Tables (EPT) ‡ Yes |
CPU Specifications
| Supported Processors |
Processor One of the following depending on model E5-2600 v2 series Processors Entry Processors NOTE: All support up to 1333MHz DDR3 memory speeds. Intel® Xeon® E5-2609 v2 (2.5GHz/4-core/10MB/6.4GT-s QPI/80W) Intel® Xeon® E5-2603 v2 (1.8GHz/4-core/10MB/6.4GT-s QPI/80W) Base Processors NOTE: All support up to1600MHz DDR3 memory speeds. Intel® Xeon® E5-2640 v2 (2.0GHz/8-core/20MB/7.2GT-s QPI/95W, DDR3-1600, HT, Turbo2- 3/3/3/3/3/3/4/5) Intel® Xeon® E5-2630 v2 (2.6GHz/6-core/15MB/7.2GT-s QPI/80W, DDR3-1600, HT, Turbo2- 3/3/3/3/4/5) Intel® Xeon® E5-2620 v2 (2.1GHz/6-core/15MB/7.2GT-s QPI/80W, DDR3-1600, HT, Turbo2- 3/3/3/3/4/5) Intel® Xeon® E5-2650L v2 (1.7GHz/10-core/25MB/8.0GT-s QPI/70W, DDR3-1600, HT, Turbo2- 2/2/2/2/2/2/2/2/3/4) Intel® Xeon® E5-2630L v2 (2.4GHz/6-core/15MB/7.2GT-s QPI/60W, DDR3-1600, HT, Turbo2- 2/2/2/2/3/4) Performance Processors NOTE: All support up to 1866MHz DDR3 memory speeds. Intel® Xeon® E5-2697 v2 (2.7GHz/12-core/30MB/8.0GT-s QPI/130W, DDR3-1866, HT, Turbo2- 3/3/3/3/3/3/3/4/5/6/7/8) Intel® Xeon® E5-2695 v2 (2.4GHz/12-core/30MB/8.0GT-s QPI/115W, DDR3-1866, HT, Turbo2- 4/4/4/4/4/4/4/4/5/6/7/8) Intel® Xeon® E5-2690 v2 (3.0GHz/10-core/25MB/8.0GT-s QPI/130W, DDR3-1866, HT, Turbo2- 3/3/3/3/3/3/3/4/5/6) Intel® Xeon® E5-2680 v2 (2.8GHz/10-core/25MB/8.0GT-s QPI/115W, DDR3-1866, HT, Turbo2- 3/3/3/3/3/4/5/6/7/8) Intel® Xeon® E5-2670 v2 (2.5GHz/10-core/25MB/8.0GT-s QPI/115W, DDR3-1866, HT, Turbo2- 4/4/4/4/4/4/5/6/7/8) Intel® Xeon® E5-2667 v2 (3.3GHz/8-core/25MB/8.0GT-s QPI/130W, DDR3-1866, HT, Turbo2- 3/3/3/3/4/5/6/7) Intel® Xeon® E5-2660 v2 (2.2GHz/10-core/25MB/8.0GT-s QPI/95W, DDR3-1866, HT, Turbo2- 4/4/4/4/4/4/5/6/7/8) Intel® Xeon® E5-2650 v2 (2.6GHz/8-core/20MB/8.0GT-s QPI/95W, DDR3-1866, HT, Turbo2- 4/4/4/4/5/6/7/8) Intel® Xeon® E5-2643 v2 (3.5GHz/6-core/25MB/8.0GT-s QPI/130W, DDR3-1866, HT, Turbo2- 1/1/1/1/2/3) Intel® Xeon® E5-2637 v2 (3.5GHz/4-core/15MB/8.0GT-s QPI/130W, DDR3-1866, HT, Turbo2- 1/1/2/3) E5-2600 series Processors Entry Processors NOTE: All support up to 1066MHz memory speeds. Intel® Xeon® E5-2609 (2.4GHz/4-core/10MB/6.4GT-s QPI/80W) Intel® Xeon® E5-2603 (1.8GHz/4-core/10MB/6.4GT-s QPI/80W) Base Processors NOTE: All support up to1333MHz DDR3 memory speeds Intel® Xeon® E5-2640 (2.5GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5) Intel® Xeon® E5-2630 (2.3GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5) Intel® Xeon® E5-2620 (2.0GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5) Intel® Xeon® E5-2630L (2.0GHz/6-core/15MB/8.0GT-s QPI/60W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5) Performance Processors NOTE: All support up to 1600MHz DDR3 memory speeds. Intel® Xeon® E5-2690 (2.9GHz/8-core/20MB/8.0GT-s QPI/135W, DDR3-1600, HT, Turbo2- 4/4/4/5/5/7/7/9) Intel® Xeon® E5-2680 (2.7GHz/8-core/20MB/8.0GT-s QPI/130W, DDR3-1600, HT, Turbo2- 4/4/5/5/5/7/8/8) Intel® Xeon® E5-2670 (2.6GHz/8-core/20MB/8.0GT-s QPI/115W, DDR3-1600, HT, Turbo2- 4/4/5/5/6/6/7/7) Intel® Xeon® E5-2667 (2.9GHz/6-core/15MB/8.0GT-s QPI/130W, DDR3-1600, HT, Turbo2- 3/3/3/4/5/6) Intel® Xeon® E5-2665 (2.4GHz/8-core/20MB/8.0GT-s QPI/115W, DDR3-1600, HT, Turbo2- 4/4/5/5/6/6/7/7) Intel® Xeon® E5-2660 (2.2GHz/8-core/20MB/8.0GT-s QPI/95W, DDR3-1600, HT, Turbo2- 5/5/6/6/7/7/8/8) Intel® Xeon® E5-2650 (2.0GHz/8-core/20MB/8.0GT-s QPI/95W, DDR3-1600, HT, Turbo2- 4/4/5/5/5/7/8/8) Intel® Xeon® E5-2650L (1.8GHz/8-core/20MB/8.0GT-s QPI/70W, DDR3-1600, HT, Turbo2- 2/2/3/3/4/4/5/5) Intel® Xeon® E5-2643 (3.3GHz/4-core/10MB/8.0GT-s QPI/130W, DDR3-1600, HT, Turbo2- 1/1/2/2) Intel® Xeon® E5-2637 (3.0GHz/2-core/5MB/8.0GT-s QPI/80W, DDR3-1600, HT, Turbo2- 5/5) |
Memory
| Installed Memory | RAM 32GB DDR3 UDIMM |
| Memory Type |
Memory One of the following depending on model Type HP SmartMemory DDR3 Load Reduced (LRDIMM), Registered (RDIMM) or Unbuffered (UDIMM) DIMM Slots Available 24 (12 DIMM slots per processor /4 channels per processor/3 DIMMs per channel) Maximum Capacity (LRDIMM) 768GB (24 x 32GB LRDIMM @1066MHz) Maximum Capacity (RDIMM) 384GB (24x 16GB RDIMM @1333MHz) Maximum Capacity (UDIMM) 128GB (16 x 8GB UDIMM @1600MHz) Maximum Capacity (HDIMM) 768GB (24 x 32GB HDIMM @1333MHz) |
Memory Specifications
| DDR3 |
Storage and drives
| Installed Hard Disk | 2 x 600GB |
| Device Type | SAS Hot Plug |
| Storage Option |
QuickSpecs HP ProLiant DL380p Generation8 (Gen8) Standard Features c04123238 – DA – 14212 Worldwide — Version 72 — September 28, 2015 Page 7 Drive Bays Standard: 8SFF drive bays total with Optical Bay, 8 LFF drive bays total with Optical Bay, 12LFF drive bays total, or 25SFF drive bays total Optional: +8SFF drive bay (total of 16SFF drive bays) NOTE: The Optical drive bay is not available with the 12LFF model, 25SFF model, or +8SFF drive bay optional upgrade. NOTE: The 8LFF, 12LFF, and 25SFF drive cage versions are not field upgradeable options from the 8SFF model. NOTE: The optional +8SFF drive bay requires an additional internal storage controller be selected. HP recommends the HP Smart Array P420/1GB FBWC 6Gb 2-ports Int SAS Controller (P/N 631670-B21). NOTE: All Pre-configured Models come populated with some hard drive blanks installed. Should the customer need additional hard drive blanks, they can order more using either P/N 666987-B21: HP SFF Gen8 Hard Drive Blank Kit or P/N 666986-B21: HP LFF Gen8 Hard Drive Blank Kit. The part numbers for single HDD blanks below are also provided should the customer require replacement HDD blanks for their server. Maximum Internal Storage Hot Plug SFF SAS 50.0TB 25 x 2TB (with optional SFF drive cage) Hot Plug SFF SATA 50.0TB 25 x 2TB (with optional SFF drive cage) Hot Plug LFF SAS 96.0TB 12 x 8TB (with optional LFF drive cage) Hot Plug LFF SATA 96.0TB 12 x 8TB (with optional LFF drive cage) Hot Plug SFF SAS SSD 48.0TB 25 x 1.92TB (with optional SFF drive cage) Hot Plug SFF SATA SSD 96TB 25 x 3.84TB (with optional LFF drive cage) Hot Plug LFF SAS SSD 19.2TB 12 x 1.6TB (with optional LFF drive cage) Hot Plug LFF SATA SSD 46.08TB 12 x 3.84TB (with optional LFF drive cage |
| Storage Controller |
Storage Controller One of the following depending on model Entry Models HP Smart Array P420i/ZM (RAID 0/1/1+0) Base Models HP Smart Array P420i/1GB with FBWC (RAID 0/1/1+0/5/5+0/6/6+0) 25SFF Models HP Smart Array P420i/2GB with FBWC (RAID 0/1/1+0/5/5+0/6/6+0) Performance Models HP Smart Array P420i/2GB with FBWC (RAID 0/1/1+0/5/5+0/6/6+0) Energy Star Models HP Smart Array P420i/1GB with FBWC (RAID 0/1/1+0/5/5+0/6/6+0) |
Graphics
| Installed Graphic Card |
Integrated Matrox G200 video standard 1280 x 1024 (32 bpp) 1920 x 1200 (16 bpp) HP iLO 4 On System Management Memory 16 MB Flash 256 MB DDR 3 with ECC (112 MB after ECC and video) |
Ports/slots/bays
| Expansion Slots |
Expansion Slots Primary Riser (Standard) Expansion Slots # Technology Bus Width** Connector Width Bus Number* Form Factor Notes 1 PCIe 3.0 X16 X16 7 Full Length, Full Height Slot Proc 1 2 PCIe 3.0 X8 X8 10 Half Length, Full Height Slot Proc 1 3 PCIe 2.0 X4 X8 13 Half Length, Full Height Slot Chipset * Default bus assignment (in decimal). Inserting cards with PCI bridges may alter the actual bus assignment number ** Indicates the number of physical electrical lanes running to the connector. NOTE: When populating the second optional riser slot, the second processor must be installed. NOTE: All slots support up to 150w PCIe cards, but an additional Power Cord Option is required (PN 669777-B21). See Option Section below for offering. PCIe Riser (Optional 3-slot) Expansion Slots # Technology Bus Width** Connector Width Bus Number* Form Factor Notes 4 PCIe 3.0 X16 X16 16 Full length, full height slot Proc 2 5 PCIe 3.0 X8 X8 20 Half length, full height slot Proc 2 6 PCIe 3.0 X8 X8 23 Half length, full height slot Proc 2 * Default bus assignment (in decimal). Inserting cards with PCI bridges may alter the actual bus assignment number 4 PCIe 3.0 X16 X16 16 Full length, Full height slot Proc 2 5 PCIe 3.0 X16 X16 16 Half Length, Full Height Proc 2 |
| Input/output ports |
Interfaces Serial 1 Video 2 (1 front, 1 back) not active simultaneously FlexibleLOM Network Ports Some models come standard with 4 x 1Gb ports while others come with 2 x 10Gb or 2 x 10Gb base-T ports (See HP Networking section below for more details and options). HP iLO Remote Management Network Port 1 Gb Dedicated SD slot 1 Internal Secure NOTE: The SD slot is not a hot-pluggable device. Customers should not attempt to plug an SD card into the SD slot while the server is powered. USB 2.0 Ports Up to 7 total: up to 2 front, 4 back, 1 internal NOTE: Only 1 front USB port available for 12LFF and 25SFF models. |
Networking/communication
| Ports | HP Ethernet 1Gb 4-port 331FLR Adapter |
Power
| Power Supply | HP 460W Common Slot Gold Hot Plug Power Supply (92% Efficient) |
Physical specifications
| dimensions ( H x W x D) |
8 SFF & 25SFF Drive Bay Version: 3.44 (8.74 cm) Height x 17.54" (44.55 cm) Width x 27.5" (69.85 cm) Length 8 LFF & 12LFF Drive Bay Version: 3.44 (8.74 cm) Height x 17.54" (44.55 cm) Width x 29.5" (74.94cm) Length |
| Weight | (approximate) Maximum (all hard drives, power supplies, and processors installed) 114.84 lb (52.09 kg) Minimum (one hard drive, power supply, and processor installed) 70.33 lb (31.9 kg) Rack Weight (approximate) Maximum (all hard drives, power supplies, and processors installed) 110.36 lb (50.06 kg) Minimum (one hard drive, power supply, and processor installed) 60.91 lb (27.63 kg) |
OPERATING SYSTEM
| Pre Install Os |
OS Provided: Type Non Operating Systems and Virtualization Software Support for ProLiant Servers Microsoft Windows Server Canonical Ubuntu Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) Solaris VMware Citrix XenServer NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: https://www.hp.com/go/ossupport and our driver download page https://www.hp.com/support/ML350pGen8 |
SERVICE & SUPPORT
| Warranty | Limited 03-month warranty |
