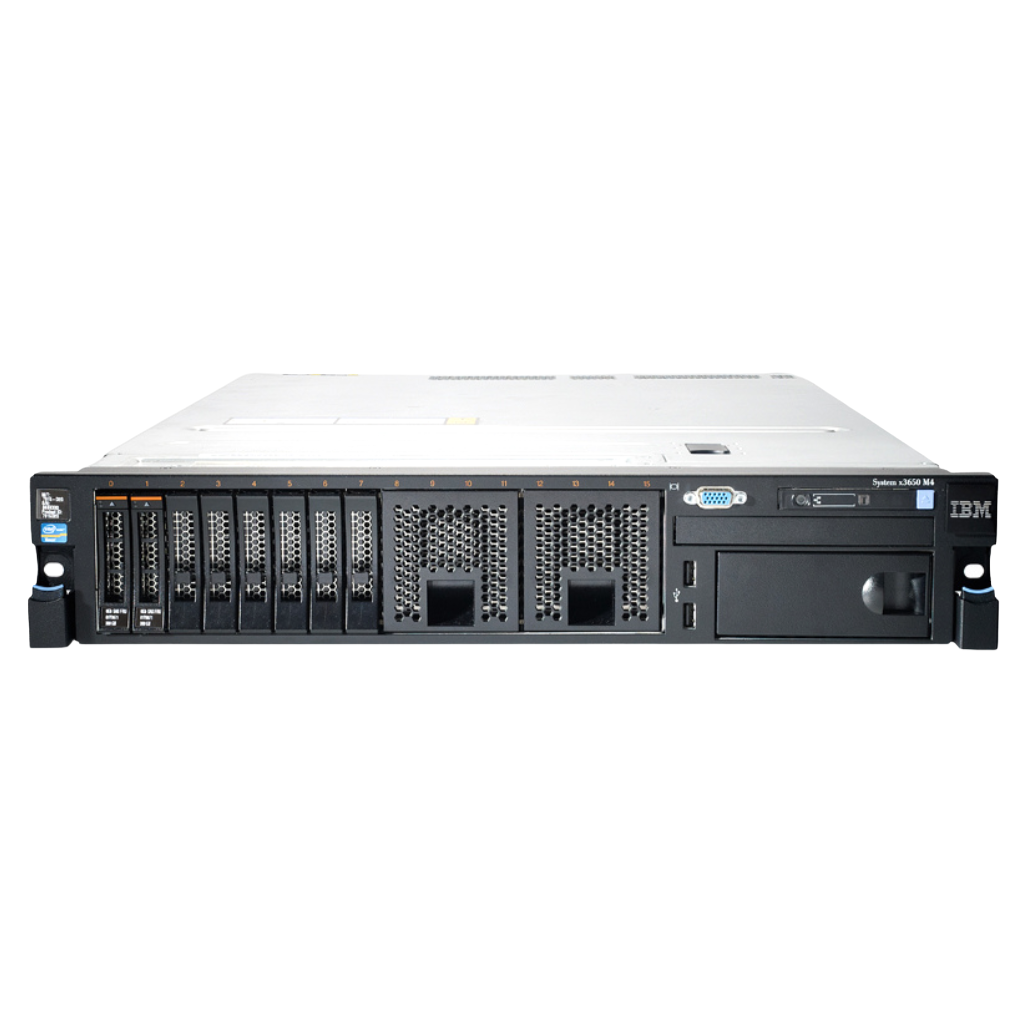

IBM System x3650 M4 Rack Server
Original price was: AED3,499.AED1,699Current price is: AED1,699.
Brand:
- IBM System x3650 M4 Rack Server (Refurbished)
- Dual Intel® Xeon® E5-2620 V2 Processor
- RAM DDR3 32GB
- SAS Hot Plug 2 x 600GB 2.5-inch
- Power Supply 550 Watt
- Extended Warranty Available
Estimated delivery:2 days
Specification
| Brand | HPE |
| Model | IBM System x3650 M4 Rack Server |
| Part Number | System x3650 M4 |
Product Type
| Product type | Tower Server |
Form Factor
| Form Factor | 5U |
Processor
| CPU Information |
Dual Intel® Xeon® Processor E5-2620 v2 (15M Cache- 2.60 GHz) CPU Specifications Total Cores 6 Total Threads 12 Max Turbo Frequency 3.10 GHz Intel® Turbo Boost Technology 2.0 Frequency‡ 3.10 GHz Processor Base Frequency 2.60 GHz Cache 15 MB Intel® Smart Cache Bus Speed 7.2 GT/s # of QPI Links 2 TDP 80 W Supplemental Information Marketing Status Discontinued Launch Date Q3'13 Supply Status Discontinued Servicing Status End of Servicing Lifetime End of Servicing Updates Date Tuesday, June 30, 2020 Embedded Options Available Yes Use Conditions Server/Enterprise Memory Specifications Max Memory Size (dependent on memory type) 768 GB Memory Types DDR3 800/1066/1333/1600 Max # of Memory Channels 4 Max Memory Bandwidth 51.2 GB/s Physical Address Extensions 46-bit ECC Memory Supported Yes Expansion Options Scalability 2S Only PCI Express Revision 3.0 PCI Express Configurations ‡ x4, x8, x16 Max # of PCI Express Lanes 40 Package Specifications Sockets Supported FCLGA2011 Max CPU Configuration 2 TCASE 71°C Package Size 52.5mm x 45mm Advanced Technologies Intel® Turbo Boost Technology ‡ 2.0 Intel® Hyper-Threading Technology ‡ Yes Intel® Transactional Synchronization Extensions No Intel® 64 ‡ Yes Instruction Set 64-bit Instruction Set Extensions Intel® AVX Idle States Yes Enhanced Intel SpeedStep® Technology Yes Intel® Demand Based Switching Yes Thermal Monitoring Technologies Yes Intel® Flex Memory Access No Intel® Identity Protection Technology ‡ No Security & Reliability Intel vPro® Eligibility ‡ Intel vPro® Platform Intel® AES New Instructions Yes Secure Key Yes Intel® OS Guard Yes Intel® Trusted Execution Technology ‡ Yes Execute Disable Bit ‡ Yes Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® VT-x with Extended Page Tables (EPT) ‡ Yes |
CPU Specifications
| Supported Processors |
Microprocessor (depending on the model): Supports up to two Intel Xeon™ E5-2600 series multi-core microprocessors (one installed) Level-3 cache Two Quick Path Interconnect (QPI) links speed up to 8.0 GT per second |
Memory
| Installed Memory | RAM DDR4 32GB DDR3 UDIMM |
| Memory Type |
Memory (depending on the model): Minimum: 2 GB Maximum: 768 GB 64 GB using unbuffered DIMMs (UDIMMs) 384 GB using registered DIMMs (RDIMMs) 768 GB using HyperCloud DIMMs (HCDIMMs) 768 GB using load reduction DIMMs (LRDIMMs) Type: PC3-8500 (DDR3-1066), PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), or PC3-14900 (DDR3-1866) Single-rank, dual-rank, or quad-rank Registered DIMM (RDIMM), unbuffered DIMM (UDIMM), load reduced DIMM (LRDIMM), or Flash DIMM Slots: 24 dual inline Supports (depending on the model): 4 GB unbuffered DIMM 2 GB, 4 GB, 8 GB, and 16 GB registered DIMMs 16 GB and 32 GB HyperCloud DIMMs (HCDIMM) 32 GB load reduction DIMM 200 GB and 400 GB Flash DIMMs |
Storage and drives
| Installed Hard Disk | 2 x 600GB |
| Device Type | SAS Hot Plug |
| Storage Option |
Hard disk drive expansion bays (depending on the model): 1.8-inch models: Supports up to thirty-two 1.8-inch hot-swap solid-state drivers. 2.5-inch models: Supports up to sixteen 2.5-inch simple-swap SAS/SATA or hot-swap SAS/SATA hard disk drive bays. Supports up to eight 2.5-inch simple-swap SAS/SATA or hot-swap SAS/SATA hard disk drive bays with an option to add up to sixteen 1.8-inch hot-swap solid-state drives. 3.5-inch models: Supports up to six 3.5-inch simple-swap SATA or hot-swap SAS/SATA hard disk drive bays. |
| Storage Controller |
RAID controllers (depending on the model): One on-board 8 ports SAS ServeRAID M5110e that provides RAID levels 0, 1, and 10 A ServeRAID M5110e SAS/SATA adapter that provides RAID 0, 1, and 10. Optional upgrade: RAID 5/50 (Zero Cache) RAID 5/50 (512 MB Cache) with optional FoD RAID 6/60 and SED upgrade RAID 5/50 (512 MB Flash) with optional FoD RAID 6/60 and SED upgrade RAID 5/50 (1 GB Flash) with optional FoD RAID 6/60 and SED upgrade |
Graphics
| Installed Graphic Card |
Video controller (integrated into IMM2): Matrox G200eR2 |
Ports/slots/bays
| Expansion Slots |
PCI expansion slots: PCI riser-card assembly 1 Type 1 Slot 1: PCI Express 3.0 x8 (full-height, full-length) Slot 2: PCI Express 3.0 x8 (full-height, half-length) Slot 3: PCI Express 3.0 x8 (full-height, half-length) Type 2 Slot 1: PCI Express 3.0 x16 (full-height, full-length) Slot 2: PCI Express 3.0 x8 (full-height, half-length) Slot 3 (not available) Type 3 Slot 1: PCI-X (full-height, full-length) Slot 2: PCI-X (full-height, half-length) Slot 3: PCI Express 3.0 x16 (full-height, half-length) Type 4 Slot 1 (not available) Slot 2: PCI Express 3.0 x16 (full-height, half-length) Slot 3: PCI Express 3.0 x8 (full-height, half-length) PCI riser-card assembly 2 Type 1 Slot 4: PCI Express 3.0 x8 (full-height, full-length) Slot 5: PCI Express 3.0 x8 (full-height, full-length) Slot 6: PCI Express 3.0 x8 (full-height, half-length) Type 2 Slot 4: PCI Express 3.0 x16 (full-height, full-length) Slot 5: PCI Express 3.0 x8 (full-height, full-length) Slot 6 (not available) Type 3 Slot 4: PCI-X (full-height, full-length) Slot 5: PCI-X (full-height, full-length) Slot 6: PCI Express 3.0 x16 (full-height, half-length) Type 4 Slot 4 (not available) Slot 5: PCI Express 3.0 x16 (full-height, full-length) Slot 6: PCI Express 3.0 x8 (full-height, half-length) |
| Input/output ports |
Serial 1 Video 1 (rear) Network RJ-45 (Ethernet) 5 (1 dedicated for HP Integrated Lights-Out) HP iLO Remote Management Network Port 1 Gb Dedicated SD slot 1 (internal) NOTE: The SD slot is not a hot-pluggable device. Customers should not attempt to plug an SD card into the SD slot while the server is powered. USB 10 (4 front, 4 rear, 2 internal) Industry Standard Compliance ACPI 2.0b Compliant PCIe 3.0 Compliant PXE Support WOL Support Novell Certified IPMI 2.0, SMASH CLP, DCMI 1.0 compliant Microsoft® Logo certifications USB 2.0 Support SMBIOS 2.7.1 |
| Expansion bays |
Integrated functions: Integrated Management Module II (IMM2), which consolidates multiple management functions in a single chip. Intel I350AM4 Quad Port Gigabit Ethernet controller with Wake on LAN support Eight Universal Serial Bus (USB) 2.0 ports (two front and four rear of the chassis, one internal used for USB tape drive, and one internal used for Hypervisor USB key) Six network ports (four 1 Gb Ethernet ports on the system board and two additional ports when the optional Dual-Port 10 Gb Network Daughter Card is installed) One System Management RJ-45 on the rear to connect to a systems management network. This system management connector is dedicated to the IMM2 functions. One serial port Two VGA adapters Light path diagnostics panel |
Environmental specifications
| Certifications |
Server off: Temperature: 5°C to 45°C (41°F to 113°F) Relative humidity: 8% to 85% Maximum dew point: 27°C (80.6°F) Storage (non-operating): Temperature: 1°C to 60°C (33.8°F to 140.0°F) Maximum altitude: 3,050 m (10,000 ft) Relative humidity: 5% to 80% Maximum dew point: 29°C (84.2°F) Shipment (non-operating): Temperature: -40°C to 60°C (-40°F to 140.0°F) Maximum altitude: 10,700 m (35,105 ft) Relative humidity: 5% to 100% Maximum dew point: 29°C (84.2°F) Particulate contamination: airborne particulates and reactive gases acting alone or in combination with other environmental factors such as humidity or temperature might pose a risk to the server. For information about the limits for particulates and gases, see Particulate contamination. |
| Temperature |
Server on: Temperature: 5°C to 40°C (41°F to 104°F) Altitude: 0 to 950 m (3,117 ft); decrease the maximum system temperature by 1°C for every 175-m increase in altitude. Humidity: Non-condensing: -12°C dew point (10.4°F) Relative humidity: 8% to 85% Maximum dew point: 24°C (75°F) Maximum rate of temperature change: Tape drives: 5°C/hr (41°F/hr) Hard disk drives: 20°C/hr (68°F/hr) |
| Humidity |
Server on: (continued) Maximum altitude: 3,050 m (10,000 ft), 5°C to 28°C (41°F to 82°F) Specific microprocessors supported environment: For more information, see Table 3 Flash DIMM supported environment: Temperature: 5°C to 30°C (41°F to 86°F) Altitude: 0 to 1000 m (3,281 ft) |
| Altitude (unpressurized) | 0 to 304.8m (0 to 1,000 ft) 0 to 304.8m (0 to 1,000 ft) 0 to 304.8m (0 to 1,000 ft) |
Power
| Power Supply |
Power supply: Up to two hot-swap power supplies for redundancy support 550-watt ac 750-watt ac 900-watt ac 750-watt dc |
Physical specifications
| dimensions ( H x W x D) |
Height: 86.5 mm (3.406 in.) Depth: EIA flange to rear - 714 mm (28.110 in.), Overall - 746 mm (29.370 in.) Width: With top cover - 445 mm (17.520 in.), With front bezel - 482.0 mm (18.976 in.) |
| Weight | Weight: approximately 25 kg (55 lb) to 30 kg (65 lb) depending upon configuration |
OPERATING SYSTEM
| Pre Install Os |
OS Provided: Type Non |
SERVICE & SUPPORT
| Warranty | Limited 03-month warranty |
