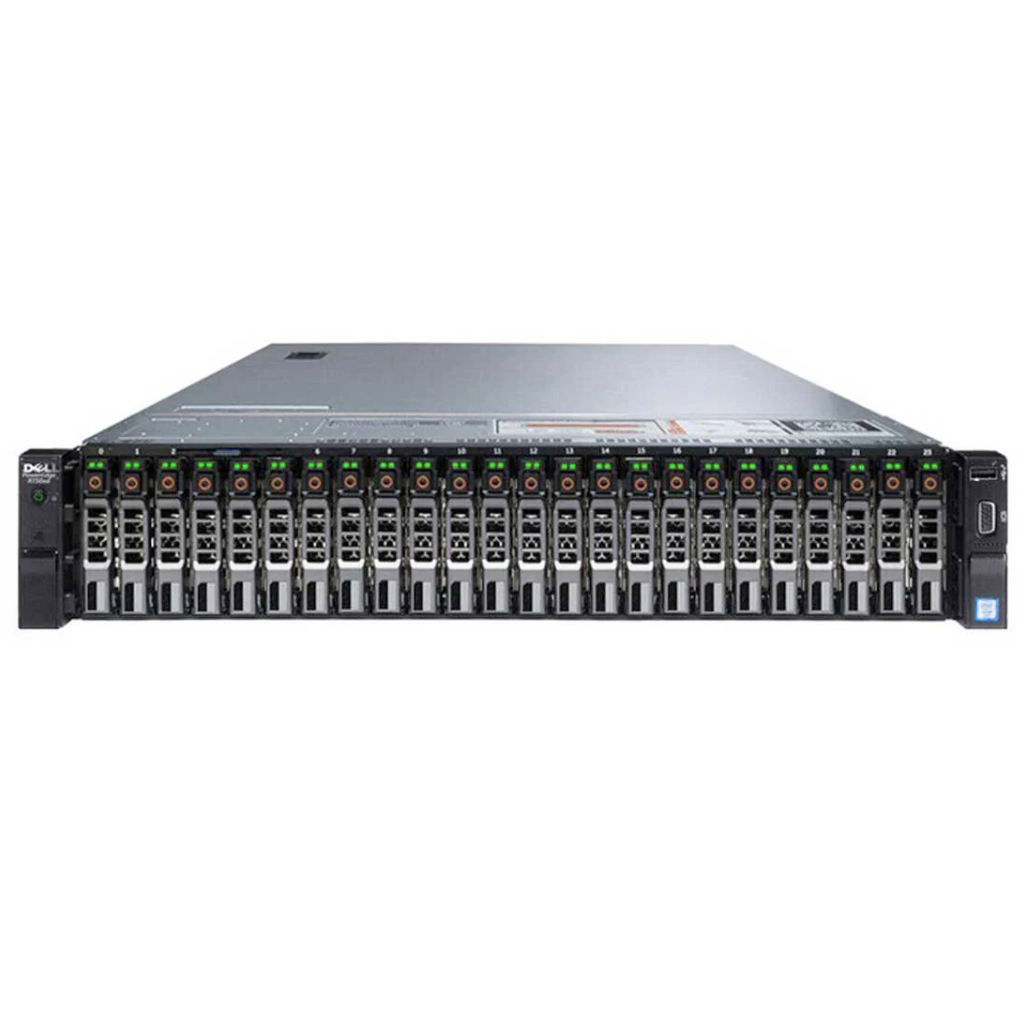

Dell PowerEdge R730xd Server
Original price was: AED5,499.00.AED2,499.00Current price is: AED2,499.00.
- Dell PowerEdge R730xd Server(Refurbished)
- Dual Intel® Xeon® E5-2680 V4 Processor
- RAM DDR4 64GB 2133MHz
- SAS Hot Plug 2 x 600GB 2.5-inch
- PERC H730 RAID Controller
- Dual Power Supply 750 Watt
- Extended Warranty Available
Estimated delivery:1 - 2 days
This Dell PowerEdge R730xd server is a fully managed, rack mountable device with dual Intel Xeon E5-2680 V4 processors and 2.40 GHz processor speed. It comes with 4 x 16GB DDR4 SDRAM, providing a maximum RAM capacity of 3TB. The server has wired Ethernet connectivity with RJ-45 interface, and supports ATA over Ethernet network type. Additionally, it has USB 3.0 device connectivity and Raid controller H730 installed that supports RAID levels 0-6, including 1+0, 5+0, and 6+0 and. The server measures 68.40 cm in length, 44.40 cm in width, and 8.73 cm in height. This PowerEdge R730xd model comes with a 750W AC power supply and is part of Dell’s PowerEdge product line. It comes with a 3-month manufacturer warranty. The Dell PowerEdge R730xd is a great choice for those in need of a reliable and high-performance server.
Specification
| Brand | Dell |
| Model | Dell PowerEdge R730xd Rack Server |
| Part Number | PowerEdge R730xd |
Product Type
| Product type | Rack Server |
Form Factor
| Form Factor | 2U |
Processor
| CPU Information |
Dual Intel® Xeon® Processor E5-2680 v4 (35M Cache- 2.40 GHz) Essentials Product Collection Intel® Xeon® Processor E5 v4 Family Code Name Products formerly Broadwell Vertical Segment Server Processor Number E5-2680V4 Lithography 14 nm Use Conditions Server/Enterprise CPU Specifications Total Cores 14 Total Threads 28 Max Turbo Frequency 3.30 GHz Intel® Turbo Boost Technology 2.0 Frequency‡ 3.30 GHz Processor Base Frequency 2.40 GHz Cache 35 MB Intel® Smart Cache Bus Speed 9.6 GT/s # of QPI Links 2 TDP 120 W Supplemental Information Marketing Status Launched Launch Date Q1'16 Servicing Status End of Servicing Updates End of Servicing Updates Date Thursday | June 30 | 2022 Embedded Options Available Yes Datasheet View now Memory Specifications Max Memory Size (dependent on memory type) 1.5 TB Memory Types DDR4 1600/1866/2133/2400 Max # of Memory Channels 4 Max Memory Bandwidth 76.8 GB/s Physical Address Extensions 46-bit ECC Memory Supported ‡ Yes Expansion Options Scalability 2S PCI Express Revision 3 PCI Express Configurations ‡ x4 | x8 | x16 Max # of PCI Express Lanes 40 Package Specifications Sockets Supported FCLGA2011 Max CPU Configuration 2 TCASE 86°C Package Size 45mm x 52.5mm Advanced Technologies Intel® Turbo Boost Technology ‡ 2 Intel® Hyper-Threading Technology ‡ Yes Intel® Transactional Synchronization Extensions Yes Intel® 64 ‡ Yes Instruction Set 64-bit Instruction Set Extensions Intel® AVX2 Idle States Yes Enhanced Intel SpeedStep® Technology Yes Intel® Demand Based Switching Yes Thermal Monitoring Technologies Yes Intel® Flex Memory Access No Intel® Identity Protection Technology ‡ No Security & Reliability Intel vPro® Eligibility ‡ Intel vPro® Platform Intel® AES New Instructions Yes Secure Key Yes Intel® OS Guard Yes Intel® Trusted Execution Technology ‡ Yes Execute Disable Bit ‡ Yes Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® VT-x with Extended Page Tables (EPT) ‡ Yes |
CPU Specifications
| Supported Processors |
Processor Up to two of the following depending on model Model CPU frequency Cores L3 Cache Power QPI DDR4 Hz E5-2699v3 2.3GHz 18 45MB 145W 9.6GT/s 2133 E5-2698v3 2.3GHz 16 40MB 135W 9.6GT/s 2133 E5-2697v3 2.6GHz 14 35MB 145W 9.6GT/s 2133 E5-2695v3 2.3GHz 14 35MB 120W 9.6GT/s 2133 E5-2690v3 2.6GHz 12 30MB 135W 9.6GT/s 2133 E5-2687Wv3 3.1GHz 10 25MB 160W 9.6GT/s 2133 E5-2683v3 2.0GHz 14 35MB 120W 9.6GT/s 2133 E5-2680v3 2.5GHz 12 30MB 120W 9.6GT/s 2133 E5-2670v3 2.3GHz 12 30MB 120W 9.6GT/s 2133 E5-2667v3 3.2GHz 8 20MB 135W 9.6GT/s 2133 E5-2660v3 2.6GHz 10 25MB 105W 9.6GT/s 2133 E5-2650v3 2.3GHz 10 25MB 105W 9.6GT/s 2133 E5-2650Lv3 1.8GHz 12 30MB 65W 9.6GT/s 2133 E5-2643v3 3.4GHz 6 20MB 135W 9.6GT/s 2133 E5-2640v3 2.6GHz 8 20MB 90W 8.0GT/s 1866 E5-2637v3 3.5GHz 4 15MB 135W 9.6GT/s 2133 E5-2630v3 2.4GHz 8 20MB 85W 8.0GT/s 1866 E5-2630Lv3 1.8GHz 8 20MB 55W 8.0GT/s 1866 E5-2623v3 3.0GHz 4 10MB 105W 8.0GT/s 1866 E5-2620v3 2.4GHz 6 15MB 85W 8.0GT/s 1866 E5-2609v3 1.9GHz 6 15MB 85W 6.4GT/s 1600 E5-2603v3 1.6GHz 6 15MB 85W 6.4GT/s 1600 E5-2699v4 2.2GHz 22 55MB 145W 9.6GT/s 2400 E5-2698v4 2.2GHz 20 50MB 135W 9.6GT/s 2400 E5-2697v4 2.3GHz 18 45MB 145W 9.6GT/s 2400 E5-2697Av4 2.6GHz 16 40MB 145W 9.6GT/s 2400 E5-2695v4 2.1GHz 18 45MB 120W 9.6GT/s 2400 E5-2690v4 2.6GHz 14 35MB 135W 9.6GT/s 2400 E5-2687Wv4 3.0GHz 12 30MB 160W 9.6GT/s 2400 E5-2683v4 2.1GHz 16 40MB 120W 9.6GT/s 2400 E5-2680v4 2.4GHz 14 35MB 120W 9.6GT/s 2400 E5-2667v4 3.2GHz 8 25MB 135W 9.6GT/s 2400 E5-2660v4 2.0GHz 14 35MB 105W 9.6GT/s 2400 E5-2650v4 2.2GHz 12 30MB 105W 9.6GT/s 2400 E5-2650Lv4 1.7GHz 14 35MB 65W 9.6GT/s 2400 E5-2643v4 3.4GHz 6 20MB 135W 9.6GT/s 2400 E5-2640v4 2.4GHz 10 25MB 90W 8.0GT/s 2133 E5-2637v4 3.5GHz 4 15MB 135W 9.6GT/s 2400 E5-2630v4 2.2GHz 10 25MB 85W 8.0GT/s 2133 E5-2630Lv4 1.8GHz 10 25MB 55W 8.0GT/s 2133 E5-2623v4 2.6GHz 4 10MB 85W 8.0GT/s 2133 E5-2620v4 2.1GHz 8 20MB 85W 8.0GT/s 2133 E5-2609v4 1.7GHz 8 20MB 85W 6.4GT/s 1866 E5-2603v4 1.7GHz 6 15MB 85W 6.4GT/s 1866 E5-2699Av4 2.4GHz 22 55MB 145W 9.6GT/s 2400 PROCESSOR Intel® Xeon® E5 2600 v3 processors or Intel® Xeon® E5 2600 v4 processors Both processors must be the same generation and model |
Memory
| Installed Memory | RAM DDR4 64GB 2133 MHz DDR4 SDRAM |
| Memory Type |
Memory One of the following depending on model Type HPE Smart Memory DDR4 Registered (RDIMM), Load Reduced (LRDIMM) or Persistent Memory (NVDIMM) DIMM Slots Available 24 (12 DIMM slots per processor, 4 channels per processor, 3 DIMMs per channel) Maximum Capacity (LRDIMM) 3TB (24 x 128GB LRDIMM @2400MHz) Maximum Capacity (RDIMM) 768GB (24 x 32GB RDIMM @2400MHz) Up to 768GB1 (24 DIMM slots): 4GB/8GB/16GB/32GB DDR4 up to 2133MT/s |
Storage and drives
| Installed Hard Disk | 2 x 600GB |
| Device Type | SAS Hot Plug |
| Storage Option |
PERC H730 RAID Controller Internal 8-port 12Gb/s PCIe RAID controller Supports up to 255 3Gb/s, 6Gb/s and 12Gb/s SAS or SATA HDDs or SSDs 1GB 1866MT/s DDR3 SDRAM non- Raid Support 0, 1, 5, 10 Up to 24 x 2.5” + 2 x 2.5” HDD: SAS, SATA, NL-SAS; SSD: 12Gb SAS, 6Gb SATA, up to 4 NVMe Express Flash PCIe Up to 16 x 3.5” + 2 x 2.5” HDD: SAS, SATA, NL-SAS; SSD: 12Gb SAS, 6Gb SATA Up to 31.9TB using 18 x 1.8” 960GB SATA SSD + 8 x 3.5” 1.8TB SAS HDD Up to 43.2TB using 24 x 2.5” 1.8TB SAS HDD + 2 x 2.5” 1.8TB SAS HDD Up to 99.6TB using 12 x 3.5” 6TB NL-SAS HDD or SSD + 4 x 3.5” 6TB SAS + 2 x 2.5” 1.8TB SAS HDD or SSD |
Graphics
| Supported Display Adapter | QUADRO K22000 - 4GB DDR5 |
Ports/slots/bays
| Expansion Slots |
SLOTS Slot 1: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket Slot 2: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket Slot 3: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket Slot 4: Full Length, Full Height, PCIe Gen3 x16 (x16 connector) Slot 5: Full Length, Full Height, PCIe Gen3 x8 (x16 connector) Slot 6: Full Length, Full Height, PCIe Gen3 x16 (x16 connector) Dedicated RAID card |
| Expansion bays |
DRIVE BAYS Internal hard drive bay and hot-plug backplane: Up to 16 x 3.5" SAS, SATA, nearline SAS, SSD + 2 x 2.5" drives Up to 18 x 1.8" SAS, SATA, nearline SAS, SSD drives + 8 x 3.5" SAS, SATA, nearline SAS, SSD drives, + 2 x 2.5" HDD Up to 26 x 2.5" SAS, SATA, nearline SAS, SSD, PCIe SSD drives |
Networking/communication
| Communications |
4 x 1GbE, 2 x 10+2GbE, 4 x 10GbE NDC Broadcom® 5719 quad-port 1Gb NIC Broadcom 5720 dual-port 1Gb NIC Broadcom 57810 dual-port 10Gb DA/SFP+ CNA Broadcom 57810 dual-port 10Gb Base-T network adapter Intel® Ethernet I350 dual-port 1Gb server adapter Intel Ethernet I350 quad-port 1Gb server adapter Intel Ethernet X540 dual-port 10GBASE-T server adapter Mellanox® ConnectX®-3 dual-port 10Gb Direct Attach/SFP+ server network adapter Mellanox ConnectX-3 dual-port 40Gb Direct Attach/QSFP server network adapter Emulex® LPE 12000, single-port 8Gb Fibre Channel HBA Emulex LPE 12002, dual-port 8Gb Fibre Channel HBA Emulex LPe16000B, single-port 16Gb Fibre Channel HBA Emulex LPe16002B, dual-port 16Gb Fibre Channel HBA Emulex OneConnect OCe14102-U1-D 2-port PCIe 10GbE CNA QLogic® 2560, single-port 8Gb Optical Fibre Channel HBA QLogic 2562, dual-port 8Gb Optical Fibre Channel HBA Qlogic 2660, single-port 16GB, Fibre Channel HBA, full height Qlogic 2662, dual-port 16GB, Fibre Channel HBA, full height |
| Connectivity Technology | Remote management: iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade) |
Power
| Power Supply |
Titanium efficiency 750W AC power supply; 1100W DC power supply; Platinum efficiency 495W, 750W, 1100W AC power supply |
Physical specifications
| dimensions ( H x W x D) | H: 8.73 cm (3.44 in.) x W: 44.40 cm (17.49 in.) x D: 68.40 cm (26.92 in.) |
| Rack dimensions | U height: 2U Rack width: 19” Mountable depth: 27” |
| Weight | Weight: 2.5” chassis: 29.5 kg (64.9 lbs) max, 3.5” chassis: 32.5 kg (71.5 lbs) max |
OPERATING SYSTEM
| Pre Install Os |
OS Provided: Type Non |
SERVICE & SUPPORT
| Warranty | Limited 03-month warranty |
Server Stock provides free delivery within the UAE for every order that is above AED 500. If the value of the order is below AED 500, we do collect a nominal delivery charge of AED 30. Server Stock delivers the products within the duration 1 to 2 working days. Deliveries will only be processed during business working days, and please note that public holidays and Friday will be counted as non-working days. The products which are “In Stock” on the website will be shipped on the same day if the order is placed before 3 pm. If we receive the order after 5 pm, we will ship it on the next day based on the product’s availability. Same day express delivery also available for Dubai, Sharjah and Ajman. Express delivery charges will be 150AED. We accept COD (Cash on Delivery) and Bank Transfers for orders placed from within the UAE. Bank Transfer should be done for the orders placed from the locations that are outside of the UAE. Please ensure whether the shipping providers delivers the servers from UAE to your destination before placing the order.
Server Stock offers Three- month warranty for all of our Refurbished products that is covering the most parts, with exceptions for burn and physical damage. Server Stock also offers flexible extendable warranty options. for example, Each 3 months extended warranty you need to add 5% extra, it means if you want any product with one year warranty then you need to add 15% extra amount in total price. You can avail free of cost repairs or replacement if needed during the warranty period for the Refurbished products. Actual warranty starts on the day when you purchase the product from us.
