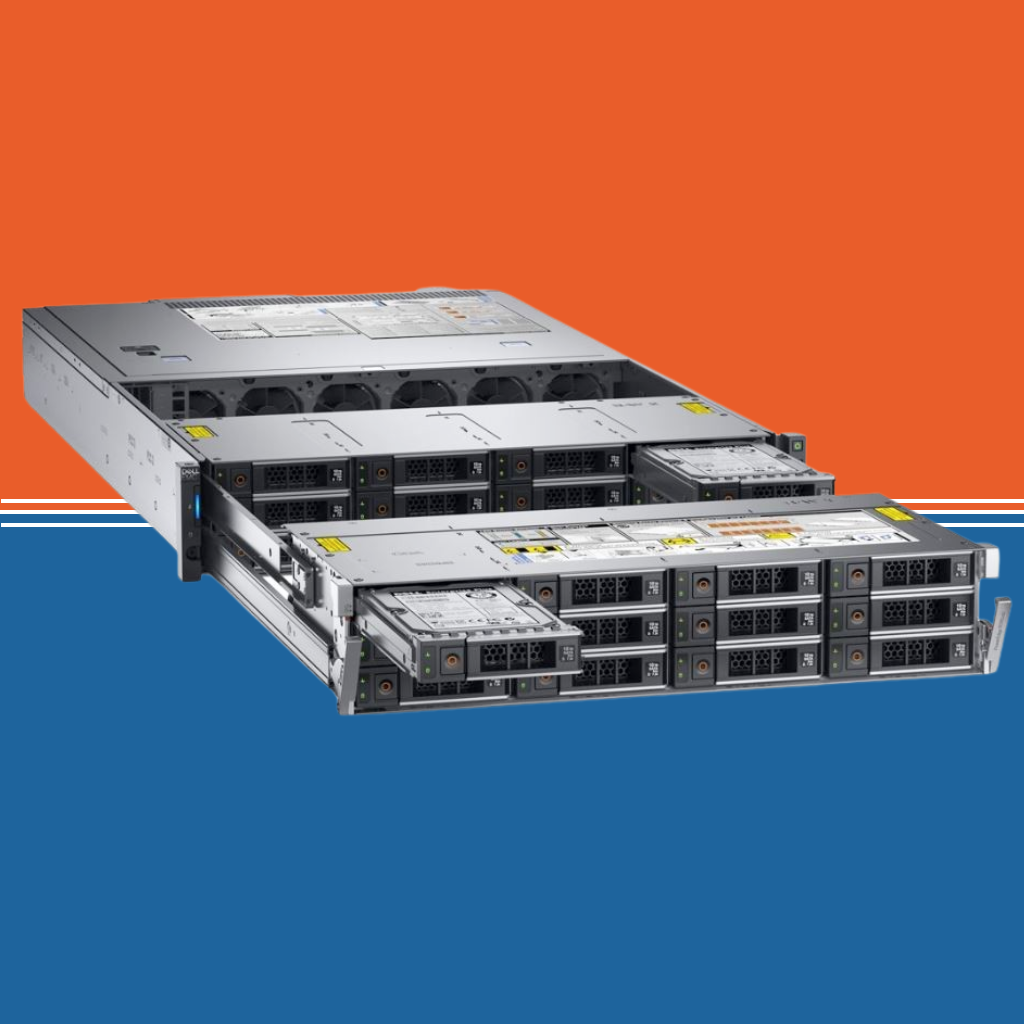

Dell PowerEdge R740xd2 Server
Original price was: AED11,400.00.AED7,199.00Current price is: AED7,199.00.
- Dell PowerEdge R740xd2 Rack Server (Refurbished)
- Single Intel® Xeon® Gold 6138 Processor Family
- RAM DDR4 32GB 2133MHz
- SAS Hot Plug 2 x 600GB 2.5-inch
- Supported 3.5″ Hard Drives 24 Bay LFF
- Raid Controller PERC H730
- Dual Power Supply 1100 Watt
- Extended Warranty Available
Estimated delivery:1 - 2 days
Dell PowerEdge R740xd2 Server Price List:
-
Dell PowerEdge R740xd2 Rack Server (Starter) AED 6999/-16 Core / 32 vCPU ( Dual Intel Xeon Silver 4110) | Memory 64GB/DDR4 | Hard Drive 2 x 600GB SAS HDD
- Dell PowerEdge R740xd2 Rack Server (Standard) AED 7999/-
40 Core / 80 vCPU ( Dual Intel Xeon Gold 6148) | Memory 64GB/DDR4 | Hard Drive 2 x 1TB SATA SSD
- Dell PowerEdge R740xd2 Rack Server (Reliable) AED 9499/-
40 Core / 80 vCPU ( Dual Intel Xeon Gold 6138) | Memory 128GB/DDR4 | Hard Drive 4 x 600GB SAS HDD
- Dell PowerEdge R740xd2 Rack Server (Professional) AED 12999/-
48 Core / 96 vCPU ( Dual Intel Xeon Platinum 8160) | Memory 256GB/DDR4 | Hard Drive 2 x 1TB SATA SSD
- Dell PowerEdge R740xd Rack Server (Advanced) AED 19999/-
40 Core / 80 vCPU ( Dual Intel Xeon Gold 6138) | Memory 512GB/DDR4 | Hard Drive 2 x2TB SATA SSD
Specification
| Brand | Dell |
| Model | Dell PowerEdge R740xd2 Rack Server |
Product Type
| Product type | Rack Server |
Form Factor
| Form Factor | 2U |
Processor
| CPU Information |
Intel® Xeon® Gold 6138 Processor (27.5M Cache- 2.00 GHz)
Essentials Product Collection Intel® Xeon® Scalable Processors Code Name Products formerly Skylake Vertical Segment Server Processor Number 6138 Lithography 14 nm Use Conditions Server/Enterprise CPU Specifications Total Cores 20 Total Threads 40 Max Turbo Frequency 3.70 GHz Processor Base Frequency 2.00 GHz Cache 27.5 MB L3 Cache Max # of UPI Links 3 TDP 125 W Supplemental Information Marketing Status Launched Launch Date Q3'17 Servicing Status ESU Notification Issued End of Servicing Updates Date Sunday | December 31 | 2023 End of Interactive Support Date Sunday | December 31 | 2023 Embedded Options Available Yes Datasheet View now Product Brief View now Additional Information View now Memory Specifications Max Memory Size (dependent on memory type) 768 GB Memory Types DDR4-2666 Maximum Memory Speed 2666 MHz Max # of Memory Channels 6 ECC Memory Supported ‡ Yes Expansion Options Scalability S4S PCI Express Revision 3 Max # of PCI Express Lanes 48 Package Specifications Sockets Supported FCLGA3647 TCASE 86°C Package Size 76.0mm x 56.5mm Advanced Technologies Intel® Optane™ Memory Supported ‡ No Intel® Speed Shift Technology Yes Intel® Turbo Boost Max Technology 3.0 ‡ No Intel® Turbo Boost Technology ‡ 2 Intel® Hyper-Threading Technology ‡ Yes Intel® Transactional Synchronization Extensions Yes Intel® 64 ‡ Yes Instruction Set Extensions Intel® AVX-512 # of AVX-512 FMA Units 2 Enhanced Intel SpeedStep® Technology Yes Intel® Volume Management Device (VMD) Yes Security & Reliability Intel vPro® Eligibility ‡ Intel vPro® Platform Intel® AES New Instructions Yes Intel® Trusted Execution Technology ‡ Yes Execute Disable Bit ‡ Yes Intel® Run Sure Technology Yes Mode-based Execute Control (MBEC) Yes Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® VT-x with Extended Page Tables (EPT) ‡ Yes |
CPU Specifications
| Supported Processors |
Up to two 2nd Generation Intel® Xeon® Scalable processors, up to 22 cores each
Supported Processors Platinum 8280 Processor 2.7 GHz 28 38.50 MB 205W 3 @ 10.4 GT/s 2933 MT/s 1TB Platinum 8280L Processor 2.7 GHz 28 38.50 MB 205W 3 @ 10.4 GT/s 2933 MT/s 4.5TB Platinum 8280M Processor 2.7 GHz 28 38.50 MB 205W 3 @ 10.4 GT/s 2933 MT/s 2TB Platinum 8276 Processor 2.2 GHz 28 38.50 MB 165W 3 @ 10.4 GT/s 2933 MT/s 1TB Platinum 8276L Processor 2.2 GHz 28 38.50 MB 165W 3 @ 10.4 GT/s 2933 MT/s 4.5TB Platinum 8276M Processor 2.2 GHz 28 38.50 MB 165W 3 @ 10.4 GT/s 2933 MT/s 2TB Platinum 8270 Processor 2.7 GHz 26 35.75 MB 205W 3 @ 10.4 GT/s 2933 MT/s 1TB Platinum 8268 Processor 2.9 GHz 24 35.75 MB 205W 3 @ 10.4 GT/s 2933 MT/s 1TB Platinum 8260 Processor 2.4 GHz 24 35.75 MB 165W 3 @ 10.4 GT/s 2933 MT/s 1TB Platinum 8260L Processor 2.4 GHz 24 35.75 MB 165W 3 @ 10.4 GT/s 2933 MT/s 4.5TB Platinum 8260M Processor 2.4 GHz 24 35.75 MB 165W 3 @ 10.4 GT/s 2933 MT/s 2TB Platinum 8260Y Processor 2.4 GHz 24/20 /16 35.75 MB 165W 3 @ 10.4 GT/s 2933 MT/s 1TB Platinum 8256 Processor 3.8 GHz 4 16.50 MB 105W 3 @ 10.4 GT/s 2933 MT/s 1TB Platinum 8253 Processor 2.2 GHz 16 22.00 MB 125W 3 @ 10.4 GT/s 2933 MT/s 1TB 1st Generation Intel® Xeon® Scalable Processor Family Platinum Processors Platinum 8180M Processor 2.5 GHz 28 38.50 MB 205W 3 @ 10.4 GT/s 2666 MT/s 1.5TB Platinum 8180 Processor 2.5 GHz 28 38.50 MB 205W 3 @ 10.4 GT/s 2666 MT/s 768GB Platinum 8176 Processor 2.1 GHz 28 38.50 MB 165W 3 @ 10.4 GT/s 2666 MT/s 768GB Platinum 8170 Processor 2.1 GHz 26 35.75 MB 165W 3 @ 10.4 GT/s 2666 MT/s 768GB Platinum 8168 Processor 2.7 GHz 24 33.00 MB 205W 3 @ 10.4 GT/s 2666 MT/s 768GB Platinum 8165 Processor 2.3 GHz 24 33.00 MB 205W 3 @ 10.4 GT/s 2666 MT/s 768GB Platinum 8164 Processor 2.0 GHz 26 35.75 MB 150W 3 @ 10.4 GT/s 2666 MT/s 768GB Platinum 8160 Processor 2.1 GHz 24 33.00 MB 150W 3 @ 10.4 GT/s 2666 MT/s 768GB Platinum 8158 Processor 3.0 GHz 12 24.75 MB 150W 3 @ 10.4 GT/s 2666 MT/s 768GB Platinum 8156 Processor 3.6 GHz 4 16.50 MB 105W 3 @ 10.4 GT/s 2666 MT/s 768GB Platinum 8153 Processor 2.0 GHz 16 22.00 MB 125W 3 @ 10.4 GT/s 2666 MT/s 768GB |
Memory
| Installed Memory | RAM DDR4 32GB 2133MHz |
| Memory Type |
Supported:
16 DDR4 RDIMM slots, up to 2933MT/s, 1TB max Supports registered ECC DDR4 DIMMs only |
Storage and drives
| Installed Hard Disk | 2 x 600GB |
| Storage Option |
Front drive bays: Up to 24 x 3.5” SAS/SATA (HDD) max 384TB,
or up 16 x 3.5” SAS/SATA (HDD) plus up to 8 x 2.5” SAS/SATA (SSD)2 max 317.44TB Rear drive bays: Up to 2 x 3.5” SAS/SATA (HDD) max 32TB or up to 2 x 2.5” SAS/SATA (SSD)* max 15.36TB |
| Storage Controller |
Installed Internal Controller: PERC H730
Supported: External Controllers (RAID): 12Gbps SAS HBA Software RAID:S140 Boot Optimized Storage Subsystem (BOSS) HWRAID 2 x M.2 SSDs 240GB, 480GB Internal Dual SD Module1 |
Graphics
| Supported Display Adapter |
3 x 300W (double-width) or 6 x 150W
(single-width) NOTE: *Only supports up to 2 x NVIDIA M10 GPUs |
Ports/slots/bays
| Expansion Slots |
USB 3.0 Up to 5 total:
1 front, 2 rear, 2 internal (secure), 2 optional USB 2.0 front via Universal Media Bay, or standard on 8LFF chassis Display Port 1 (SFF 1 front, optional via Universal Media Bay, 826708-B21), 8 LFF chassis standard FlexibleLOM Network Ports 4 x 1 Gb ports shipping standard with optional FlexibleLOM or stand-up card HPE iLO Remote Management Network Port 1 Gb Dedicated Front iLO Service Port 1 standard (Not available on 12 LFF chassis or when SID is ordered, note iLO dongle required 880123-B21) Micro SD Slot 1 Micro SD Expansion Slots # Technology Bus Width Connector Width Form Factor Notes 1 PCIe 3.0 X8 X8 Full-height, full-length slot Proc 1 2 PCIe 3.0 X16 X16 Full-height, full-length slot Proc 1 3 PCIe 3.0 X8 X8 Full-height, half-length slot Proc 1 1 PCIe 3.0 X8 X8 Full-height, full-length slot Proc 2 2 PCIe 3.0 X16 X16 Full-height, full-length slot Proc 2 3 PCIe 3.0 X8 X8 Full-height, half-length slot |
| Input/output ports |
Network options
2 x 1GbE BaseT LOM + (optional LOM riser) 2 x 1GbE BaseT or 2 x10GbE SFP+ or 2 x 10GbE BaseT or 2x 25GbE SPF+ or 2 x 16Gb Fibre Channel Front ports: 1 x USB 3.0, 1 managed (micro-usb), dedicated IDRAC Direct USB. Rear ports: Video, serial, iDRAC dedicated LAN, 2 x USB 3.0 Internal ports: 1 x USB 3.0 Video card: VGA PCIe: Up to 5 x Gen3 slots (3 x16 + 2 x4) |
| Expansion bays | iDRAC9, iDRAC RESTful with Redfish, iDRAC Direct, Quick Sync 2 wireless module optional |
Networking/communication
| Communications |
Integrations and connections Integrations:
Microsoft® System Center VMware® vCenter™ BMC Truesight Red Hat Ansible Modules Connections: Nagios Core & Nagios XI Micro Focus Operations Manager i (OMi) IBM Tivoli Netcool/OMNIbus IBM Tivoli® Network Manager IP Edition |
Security & Reliability
| Software/security |
Security TPM 1.2/2.0, TCM 2.0 optional
Cryptographically signed firmware Silicon Root of Trust Secure Boot System Lockdown (requires iDRAC Enterprise or Datacenter) Secure Eras |
Power
| Power Supply |
1100W Platinum
750W Platinum 750W 240VDC Platinum 1100W Platinum 1100W 380VDC Platinum Hot plug power supplies with full redundancy option 6 fans with N +1 redundancy |
Physical specifications
| dimensions ( H x W x D) |
Height: 86.8mm (3.4”)
Width: 448.0mm (17.6”) Depth: 810.0mm (31.9”) |
| Rack dimensions | 2U |
| Weight | Weight: 40.0kg (88.2lbs) |
OPERATING SYSTEM
| Pre Install Os |
OS Provided: Type
Non Supported operating system Canonical® Ubuntu® LTS Citrix® Hypervisor Microsoft® Windows Server® LTSC with Hyper-V Oracle® Linux Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi For specifications and interoperability details, see Dell.com/OSsupport |
SERVICE & SUPPORT
| Warranty | Limited 03-month warranty |
Server Stock provides free delivery within the UAE for every order that is above AED 500. If the value of the order is below AED 500, we do collect a nominal delivery charge of AED 30. Server Stock delivers the products within the duration 1 to 2 working days. Deliveries will only be processed during business working days, and please note that public holidays and Friday will be counted as non-working days. The products which are “In Stock” on the website will be shipped on the same day if the order is placed before 3 pm. If we receive the order after 5 pm, we will ship it on the next day based on the product’s availability. Same day express delivery also available for Dubai, Sharjah and Ajman. Express delivery charges will be 150AED. We accept COD (Cash on Delivery) and Bank Transfers for orders placed from within the UAE. Bank Transfer should be done for the orders placed from the locations that are outside of the UAE. Please ensure whether the shipping providers delivers the servers from UAE to your destination before placing the order.
Server Stock offers Three- month warranty for all of our Refurbished products that is covering the most parts, with exceptions for burn and physical damage. Server Stock also offers flexible extendable warranty options. for example, Each 3 months extended warranty you need to add 5% extra, it means if you want any product with one year warranty then you need to add 15% extra amount in total price. You can avail free of cost repairs or replacement if needed during the warranty period for the Refurbished products. Actual warranty starts on the day when you purchase the product from us.
