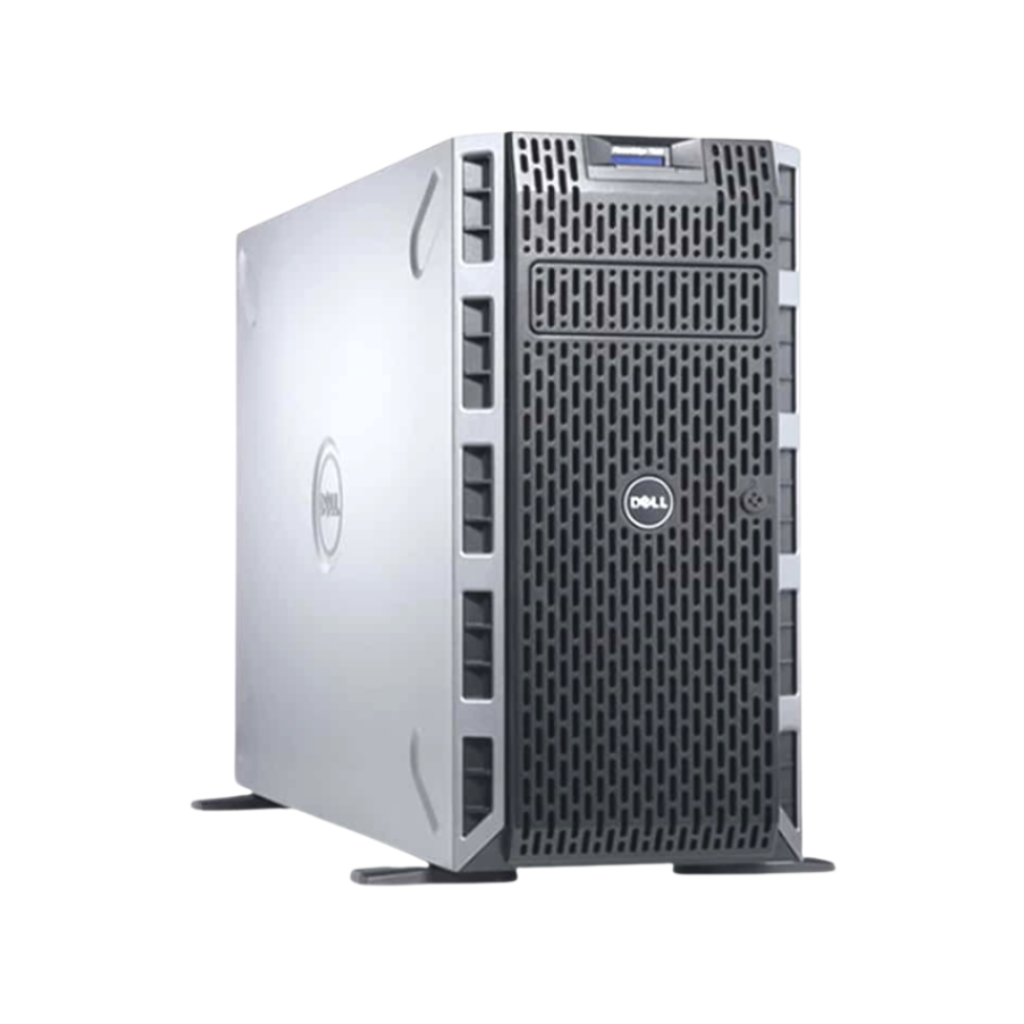

Dell PowerEdge T620 Server
Original price was: AED5,499.AED2,450Current price is: AED2,450.
Brand:
- Dell PowerEdge T620 Server (Refurbished)
- Dual Intel® Xeon® E5-2600 V2 Series
- RAM DDR3 32GB
- SAS Hot Plug 2 x 600GB 2.5-inch
- PERC H710 RAID Controller
- Dual Power Supply 500 Watt
- Extended Warranty Available
Estimated delivery:2 days
Specification
| Brand | Dell |
| Model | Dell PowerEdge T620 Server |
| Part Number | PowerEdge T620 |
Product Type
| Product type | Rack Server |
Form Factor
| Form Factor | 5U |
Processor
| CPU Information |
Intel Xeon processor E5-2600 and E5-2600 v2 product families Essentials Product Collection Intel® Xeon® Processor E5 v4 Family Code Name Products formerly Broadwell Vertical Segment Server Processor Number E5-2680V4 Lithography 14 nm Use Conditions Server/Enterprise CPU Specifications Total Cores 14 Total Threads 28 Max Turbo Frequency 3.30 GHz Intel® Turbo Boost Technology 2.0 Frequency‡ 3.30 GHz Processor Base Frequency 2.40 GHz Cache 35 MB Intel® Smart Cache Bus Speed 9.6 GT/s # of QPI Links 2 TDP 120 W Supplemental Information Marketing Status Launched Launch Date Q1'16 Servicing Status End of Servicing Updates End of Servicing Updates Date Thursday | June 30 | 2022 Embedded Options Available Yes Datasheet View now Memory Specifications Max Memory Size (dependent on memory type) 1.5 TB Memory Types DDR4 1600/1866/2133/2400 Max # of Memory Channels 4 Max Memory Bandwidth 76.8 GB/s Physical Address Extensions 46-bit ECC Memory Supported ‡ Yes Expansion Options Scalability 2S PCI Express Revision 3 PCI Express Configurations ‡ x4 | x8 | x16 Max # of PCI Express Lanes 40 Package Specifications Sockets Supported FCLGA2011 Max CPU Configuration 2 TCASE 86°C Package Size 45mm x 52.5mm Advanced Technologies Intel® Turbo Boost Technology ‡ 2 Intel® Hyper-Threading Technology ‡ Yes Intel® Transactional Synchronization Extensions Yes Intel® 64 ‡ Yes Instruction Set 64-bit Instruction Set Extensions Intel® AVX2 Idle States Yes Enhanced Intel SpeedStep® Technology Yes Intel® Demand Based Switching Yes Thermal Monitoring Technologies Yes Intel® Flex Memory Access No Intel® Identity Protection Technology ‡ No Security & Reliability Intel vPro® Eligibility ‡ Intel vPro® Platform Intel® AES New Instructions Yes Secure Key Yes Intel® OS Guard Yes Intel® Trusted Execution Technology ‡ Yes Execute Disable Bit ‡ Yes Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® VT-x with Extended Page Tables (EPT) ‡ Yes |
CPU Specifications
| Supported Processors |
Processor Up to two of the following depending on model Model CPU frequency E5-2697 v2 2.7Ghz 30M 8.0GT/s 12 Yes 130W E5-2695 v2 2.4Ghz 30M 8.0GT/s 12 Yes 115W E5-26901 2.9GHz 20M 8.0GT/s 8 Yes 135W E5-2690 v21 3.0GHz 20M 8.0GT/s 10 Yes 130W E5-2680 2.7GHz 20M 8.0GT/s 8 Yes 130W E5-2680 v2 2.8GHz 25M 8.0GT/s 10 Yes 115W E5-26701 2.6GHz 20M 8.0GT/s 8 Yes 115W E5-2670 v2 2.5GHz 25M 8.0GT/s 10 Yes 115W E5-2665 2.4GHz 20M 8.0GT/s 8 Yes 115W E5-2667 2.6GHz 15M 8.0GT/s 6 Yes 130W E5-2667 v2 3.0GHz 20M 8.0GT/s 8 Yes 130W E5-26601 2.2GHz 20M 8.0GT/s 8 Yes 95W E5-2660 v2 2.2GHz 25M 8.0GT/s 10 Yes 95W E5-2650L 1.8GHz 20M 7.2GT/s 8 Yes 70W E5-2650L v2 1.7GHz 25M 8.0GT/s 10 Yes 60W E5-2650 2.0GHz 20M 8.0GT/s 8 Yes 95W E5-2650 v2 2.6GHz 20M 8.0GT/s 8 Yes 95W E5-2643 3.3Ghz 10M 8.0GT/s 4 Yes 130W E5-2643 v2 3.3GHz 15M 8.0GT/s 6 Yes 130W E5-26401 2.5GHz 15M 7.2GT/s 6 Yes 95W E5-2640 v2 2.0GHz 20M 7.2GT/s 8 Yes 95W E5-2637 3.0GHz 5M 8.0 2 Yes 80W E5-2637 v2 3.5GHz 10M 8.0GT/s 4 Yes 130W E5-2630 2.3GHz 15M 7.2GT/s 6 Yes 95W E5-2630 v2 2.6GHz 20M 7.2GT/s 6 Yes 80W E5-2630L1 2.0GHz 15M 7.2GT/s 6 Yes 60W E5-2630L v2 2.4GHz 15M 7.2GT/s 6 Yes 60W E5-26201 2.0GHz 15M 7.2GT/s 6 Yes 95W E5-2620 v2 2.1GHz 15M 7.2GT/s 6 Yes 80W E5-26091 2.4GHz 10M 6.4GT/s 4 No 80W E5-2609 v2 2.5GHz 10M 6.4GT/s 4 No 80W E5-2603 1.8GHz 10M 6.4GT/s 4 No 80W E5-2603 v2 1.8GHz 10M 6.4GT/s 4 No 80W |
Memory
| Installed Memory | RAM DDR3 32GB 2133 MHz DDR4 SDRAM |
| Memory Type |
24 x DDR3 RDIMM, UDIMM, and LRDIMM Up to 768GB Up to 768GB (24 DIMM slots): 2GB/4GB/8GB/16GB/32GB DDR3 up to 1866MT/s Register No Yes Yes Buffer No No Yes Frequencies* 1600MT/s 1333, 1600 or 1866MT/s 1600 or 1866MT/s Ranks supported 1 1, 2 or 4 4 Capacity per DIMM 4GB 4, 8, 16 or 32GB 32GB Maximum DIMMs per channel 2 3 3 DRAM technology x8 x4 or x8 x4 Temperature sensor Yes Yes Yes Error Correction Code (ECC) Yes Yes Yes Single Device Disable Code (SDDC) Yes (with advanced ECC mode) Yes Yes Address parity Yes Yes Yes DIMMs supported 4 1866 RDIMM 1 X8 Advanced ECC 1.5 4 1600 RDIMM 1 x8 Advanced ECC 1.35 4 1600 UDIMM 1 X8 Advanced ECC 1.35 8 1866 RDIMM 1 x4 All modes 1.5 8 1600 RDIMM 1 x4 All modes 1.35 16 1866 RDIMM 2 x4 All modes 1.5 16 1600 RDIMM 2 x4 All modes 1.35 32 1866 LRDIMM 4 x4 All modes 1.5 32 1600 LRDIMM 4 x4 All modes 1.35 32 1333 RDIMM 4 x4 All modes 1.35 |
Storage and drives
| Installed Hard Disk | 2 x 600GB |
| Device Type | SAS Hot Plug |
| Storage Option |
Internal hard drive bay and hot-plug backplane: Up to 32 x 2.5” or 12 x 3.5” Hot-plug drives, hot-plug redundant cooling, hot-plug redundant PSUs, internal dual SD module Drive bay options: Up to 8 x 3.5” + 4 x Express Flash Up to 12 x 3.5” Up to 16 x 2.5” + 4 x Express Flash Up to 32 x 2.5” Hard drive options: 2.5” Express Flash, SAS SSD, SATA SSD, SAS (15K, 10K), nearline SAS (7.2K), SATA (7.2K) 3.5” nearline SAS (7.2K), SATA (7.2K), SAS (15K) Self-encrypting drives (SEDs) available The T620 supports the following internal storage options: 3.5-inch options: — 4 x 3.5-inch hot-plug hard drives — 8 x 3.5-inch hot-plug hard drives — 8 x 3.5-inch hot-plug hard drives plus four Express Flash PCIe SSDs — 12 x 3.5-inch hot-plug hard drives 2.5-inch options: — 16 x 2.5-inch hot-plug drive bays — 16 + 16 x 2.5-inch hot-plug drive bays — 16 x 2.5-inch hot-plug drive bays plus four Express Flash PCIe SSDs — 32 x 2.5-inch hot-plug drive bays Note: A system cannot be upgraded or reconfigured after point of purchase. Supported Hard Drives 3.5” SATA (3Gb) 7.2K 250GB, 500GB, 1TB, 2TB, 3TB, 4TB Nearline SAS (6Gb) 7.2K 1TB, 2TB, 3TB, 4TB SAS (6Gb) 15K 300GB, 600GB 2.5” SATA 7.2K 250GB, 500GB, 1TB Nearline SAS 7.2K 500GB, 1TB SAS 10K 300GB, 600GB, 900GB, 1.2TB SAS 15K 146GB, 300GB SAS SSD N/A 200GB, 400GB SATA SSD N/A 100GB, 160GB, 200GB, 300GB 400GB, 480GB, 800GB PCIe SSD N/A 175GB, 350GB, 700GB, 1.4TB Supported external storage External tape ML6000 TL4000 TL2000 124T 114X LTO5 SAS LTO4 HH SAS LTO3-060 SCSI RD1000 USB PowerVault NAS Supports connection to current PowerVault NAS products PowerVault DAS Supports connection to current PowerVault DAS (including JBOD and RBOD enclosures) products PowerVault SAN Supports connection to current PowerVault SAN (including EqualLogic™ iSCSI, Dell|EMC arrays, and JBOD disk enclosures) products PowerVault IDM Supports connection to current PowerVault IDM (archive solutions, deduplication, B2D and data protection appliances) products |
| Storage Controller |
PERC H810 External Eight-port, external and 6Gp/s PCIe RAID controller that supports up to 192 SATA and SAS hard drives or SSDs Includes 1GB NV DDR3 cache, premium performance and feature set, security SED/EKMS, and SSD as cache 0, 1, 10, 5, 50, 6, 60 Adapter Premium performance PERC H710P Internal Eight-port, internal 6Gb/s PCIe RAID controller that supports up to 32 SATA and SAS hard drives or SSDs Includes 1GB NV DDR3 cache, premium performance and feature set, security SED/EKMS, and SSD as cache 0, 1, 10, 5, 50, 6, 60 Adapter Premium performance PERC H710 Internal Eight-port, internal 6Gb/s PCIe RAID controller that supports up to 32 SATA and SAS hard drives or SSDs Includes 512MB DDR3 cache, advanced feature set, security SED/EKMS 0, 1, 10, 5, 50, 6, 60 Adapter Performance PERC H310 Internal Eight-port, internal 6Gb/s PCIe RAID that supports up to 32 SATA and SAS hard drives or SSDs Supports hot-plug drives, expansion, pass-through 0, 1, 10, 5, 50 Adapter Value PERC S110 Software RAID 3Gb/s SATA software RAID controller that supports up to 4 physical disks or 8 virtual disks Supports hot-plug SATA drives (4 drive maximum); no expansion; Microsoft Windows only 0, 1, 5, 10 System board- embedded SATA Entry-level Hard-drive backplane options 8 x 3.5” up to 4 PERC S110 SATA HDD/SSD 8 x 3.5" 8 PERC H310, H710, H710P SATA HDD/SSD SAS HDD/SSD 12 x 3.5" 12 PERC H310, H710, H710P SATA HDD/SSD SAS HDD/SSD 16 x 2.5" 16 PERC H310, H710, H710P SATA HDD/SSD SAS HDD/SSD Dual 16 x 2.5” 16 + 16 Dual PERC H710P SATA HDD/SSD SAS HDD/SSD Dual 16 x 2.5” 32 PERC H710P SATA HDD/SSD SAS HDD/SSD 4 x PCIe SSD 4 PCIe interface SSD card + PERC H310, H710, H710P Express Flash PCIe SSD |
Graphics
| Supported Display Adapter |
NVIDIA® C2075 247.65mm 111mm Double Active 215W K4000 241.3mm 111mm Single Active 80W Q6000 247.65mm 111mm Double Active 204W K20A 266.7mm 111mm Double Active 225W ATI™ FirePro™ V7800 242mm 111mm Single Active 150W AMD FirePro W7000 243.3mm 111mm Single Active 127.7W GPU configuration options GPU cards are installed in the PCIe x16 2.0 interfaces, which are slots 2, 4, 5 and 7; slots 5 and 7 only work with two processors. Note: You must select the GPU enablement kit at point of sale to install GPU or keep the system's GPGPU capability. GPU enablement kit is not upgradable after point of sales. With one processor installed, two GPU cards are supported with the following restrictions: Slots 1, 2, 3 and 4 are available, therefore only two GPUs can be installed in slots 2 and 4 Since double-wide GPU cards occupy two slots, only two can be installed and slots 1 and 3 are not available RAID cards cannot be installed with two double-wide GPU cards With single-wide GPU cards, the PERC H710, H710P, or H810 cannot occupy slots 1 or 3 (PERC cards have batteries that would overheat if located beside a GPU card) With two processors installed, four GPU cards are supported, with the restrictions: Slots 2, 4, 5, and 7 are available Since double-wide GPU cards occupy two slots, slots 1, 3, and 6 are not available RAID cards cannot be installed with four double-wide GPU cards With single-wide GPU cards, the PERC H710, H710P, or H810 cannot occupy slots 1, 3, or 6 (PERCs have batteries that would overheat if located beside a GPU card) With PCIe SSDs, two GPU cards can occupy slots 5 and 7. Slot 2 is for a PCIe SSD expender card and slot 4 cannot support a GPU card because of thermal restrictions. Operating system support for GPUs Some operating systems have not been validated to support GPUs. See Table 23 and Table 24 for more information on operating system support of GPUs. |
Ports/slots/bays
| Input/output ports |
7 PCIe slots: 4 x16 slots with x16 bandwidth, full-length, full-height 2 x8 slots with x8 bandwidth, full-length, full-height 1 x8 slot with x4 bandwidth, full-length, full-height |
Networking/communication
| Communications |
Can support Select Network Adapter options: Broadcom® 5720 DP 1Gb NIC Broadcom 5719 QP 1Gb NIC Broadcom 57810 DP 10Gb DA/SFP+ converged network adapter Broadcom 57810 DP 10Gb Base-T Intel Ethernet I350 DP 1Gb server adapter Intel X520 DP 10Gb DA/SFP+ server adapter Intel Ethernet X540 DP 10Gb Base-T server adapter Mellanox ConnectX-3 dual-port 10GbE DA/SFP+ Mellanox ConnectX-3 dual-port 10GbE DA/SFP+ |
| Ports | 2 x 1GbE Dual Port LOM |
Security & Reliability
| Software/security |
Open Manage Essentials OMSA Agent Open Manage Power Center (requires iDRAC7 Enterprise with Lifecycle Controller) Open Manage Integrations and Connections iDRAC7 Express with Lifecycle Controller (standard option) OpenManage Essentials OMSA Agent OpenManage Power Center (requires iDRAC7 Enterprise with Lifecycle Controller) OpenManage Integrations and Connections: OpenManage Integration Suite for Microsoft® System Center OpenManage Integration for VMware vCenter Connections for HP® Operations Manager, IBM® Tivoli® Netcool® and CA Network and Systems Management iDRAC7 Express with Lifecycle Controller (standard option) Upgrade to iDRAC7 Enterprise with Lifecycle Controller |
Power
| Power Supply |
Titanium efficiency 750W AC power supply Auto-ranging Platinum efficiency 495W, 750W or 1100W AC power supply 1100W DC power supply Supported Power Supply Hot-plug redundant power supply units: 495W, 750W, 1100W or 1100W DC |
Physical specifications
| dimensions ( H x W x D) |
: 443.5 mm (17.5 in) with feet; 430.5 mm (16.95 in) without feet W: 304.5 mm (11.98 in) with feet opened; 217.9 mm (8.57 in) with feet closed D: 692.8 mm (27.27 in) without bezel; 708.7 mm (27.9 in) with bezel |
| Rack dimensions | U height: 5U Rack width: 19” Mountable depth: 27” |
| Weight | Maximum weight: 41.8 kg (92.15 lb) for 2.5” hard drive chassis 51.0 kg (112.43 lb) for 3.5” hard-drive chassis |
OPERATING SYSTEM
| Pre Install Os |
OS Provided: Type Non Microsoft® Windows Server® 2012 R2 (includes Hyper-V®) Microsoft Windows Server 2012 Microsoft Windows Server 2008 R2 SP1, x64 (includes Hyper-V) Microsoft Windows® Small Business Server 2011 Novell® SUSE® Linux Enterprise Server Red Hat® Enterprise Linux® Optional embedded hypervisors: Citrix® XenServer® VMware vSphere including ESXi Red Hat Enterprise Virtualization® For more information on the specific versions and additions, visit Dell.com/OS support |
SERVICE & SUPPORT
| Warranty | Limited 03-month warranty |
